Portable scissor lift

A Portable Scissor Lift (also referred to as full rise scissor lift) is a mobile lifting device powered by hydraulics or electricity, designed to safely and efficiently elevate personnel, tools, or cargo in confined spaces. Its core structure features a crisscross folding “scissor mechanism” that enables vertical movement through expansion or contraction. Unlike fixed lifts, portable scissor lifts are lightweight, movable, and require no complex installation, making them ideal for automotive workshops, logistics warehouses, construction sites, and more.

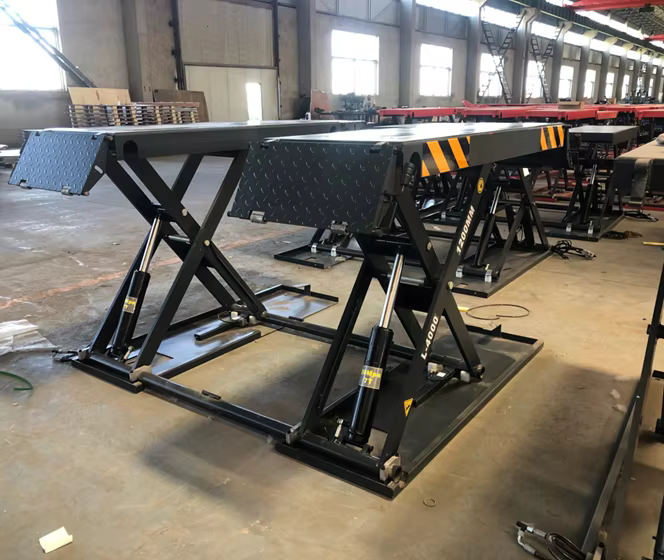

Portable scissor lift

• Lifting capacity: 7716Lbs/3500kg 4000KG
• Max lifting height: 67″/1700mm
• Motor voltage: 220V, 380V or customer-specified

Portable auto low rise scissor lift table Parameters：

Below is a detailed analysis of its core components, working principles, features, and applications:

Key Features Of Portable scissor lift

1. Compact & Portable
   • Foldable scissor arms and lightweight materials (e.g., manganese steel or aluminum alloy) reduce overall weight (some models as light as 160 kg), enabling single-person transport and rapid deployment.
   • Equipped with caster wheels or towable designs for easy relocation and operation in tight spaces.
2. High Load Capacity
   • Dynamic load capacity up to 115% of rated capacity, static load capacity up to 150%, supporting weights from 264 kg to 8,000 kg for diverse applications.
3. Multiple Drive Options
   • Hydraulic Drive: Dual hydraulic cylinders ensure smooth, powerful lifting.
   • Electric Drive: Powered by lithium batteries or external power sources, offering low noise and eco-friendly operation; some models support wireless remote or foot-switch control.
4. Safety & Reliability
   • Integrated mechanical safety locks, anti-pinch devices, overload protection, and emergency stop buttons ensure operator and equipment safety.
   • Certain models feature mast leveling for stable operation on uneven surfaces.
5. Versatile Customization
   • Expandable platforms with anti-slip plates, roller tracks, or detachable hooks adapt to material handling, equipment installation, and other tasks.

Core Advantages Of Portable scissor lift

• Flexible Deployment: No embedded installation required; ready-to-use for temporary or space-constrained environments.
• Energy Efficiency: Electric models utilize lithium batteries with short charging times (as low as 2 hours) and 3,000+ charge cycles, reducing energy consumption by 81.3% compared to traditional hydraulic systems.
• Low Maintenance: Sealed hydraulic units or maintenance-free lithium battery designs minimize upkeep and extend service life.

Structure & Components Of Portable scissor lift

1. Scissor Arms
   • Multi-layered high-strength steel or aluminum alloy cross arms connected by pivot points, forming a stable parallelogram structure for smooth lifting.
2. Drive System
   • Hydraulic System: Includes pumps, cylinders, and control valves, using oil pressure to extend scissor arms.
   • Electric System: Motor-driven electric actuators replace traditional hydraulic cylinders, improving efficiency and eliminating leakage risks.
3. Lifting Platform
   • Anti-slip steel or aluminum alloy surfaces with customizable sizes (e.g., 0.9×0.7m to 2.3×1.13m); optional extensions like rotating platforms or tilt functions.
4. Control Unit
   • Supports ground controls, wireless remotes, or platform-mounted buttons; integrates height sensors, status indicators, and emergency stop systems.
5. Safety Mechanisms
   • Mechanical locking pins, overload clutches, anti-pinch guards, and manual emergency pressure release valves comply with international safety standards.

Working Principle Of Portable scissor lift

1. Activation
   • The operator activates the drive system via the control unit: hydraulic pumps pressurize oil, or electric motors power actuators.
2. Lifting Process
   • Hydraulic Drive: Oil pressure extends piston rods, expanding scissor arms to raise the platform; controlled pressure release lowers it via gravity.
   • Electric Drive: Actuators directly push scissor arms, with synchronization valves ensuring balanced movement to prevent platform tilt.
3. Safety Locking
   • Mechanical locks engage automatically at target heights to prevent accidental descent; overload triggers protection systems, halting operation and sounding alarms.

Applications Of Portable scissor lift

• Automotive Repair: Vehicle undercarriage inspections, tire replacements (compatible with SUVs and large vehicles).
• Construction: High-altitude equipment installation, wall painting, or lighting maintenance.
• Warehousing & Logistics: Forklift-assisted cargo loading/unloading or high-shelf inventory access.

Conclusion

The Portable Scissor Lift, with its compact design, robust load capacity, and mobility, delivers an efficient vertical lifting solution for industrial and commercial sectors. Whether leveraging hydraulic power for heavy-duty tasks or electric systems for eco-friendly performance, it enhances operational safety and productivity, making it an indispensable tool for modern mobile worksites.
