Tracked Scissor Lift

A tracked scissor lift also called crawler scissor lift, is a type of aerial work platform that combines the vertical lifting capabilities of a standard scissor lift with the enhanced mobility and stability of a tracked undercarriage, similar to that of a bulldozer or excavator. Instead of wheels with rubber tires, these lifts utilize continuous tracks made of rubber or metal segments.

Track scissor lift

1. Robust Safety: High-strength manganese steel Q345 rectangular tubing ensures durable and structurally sound safety supports.
2. Durable Tracks: Industrial-grade crawlers offer excellent sealing, high elasticity, resistance to tearing, cold temperatures, and wear.
3. Increased Reach: A retractable working platform expands the operational workspace.
4. Reliable Hydraulics: Precision-ground hydraulic cylinders with imported seals and an integrated explosion-proof valve provide long-lasting, leak-free performance.
5. Simplified Upkeep: An imported battery, positioned for easy access at the front, offers extended use and simplifies maintenance.
6. Responsive Platform Control: The DTC control system ensures more sensitive and precise platform operation.
7. Flexible Power Options:
   • Electric/AC Power: Ideal for indoor use where power is available, offering quiet and emission-free operation.
   • Battery/DC Power: Suitable for outdoor use or areas without power, providing quiet and emission-free operation.

• Track scissor lift
• 6-14m working height
• 320kg load capacity
• 24V DC or 48V power source with long working cycles
• Zero inside turning radius
• Derivable and functional at full height
• Outriggers (optional)
• Emergency stop at both platform and ground controls
• Proportional controls for drive functions

Tracked Scissor Lift Parameters：

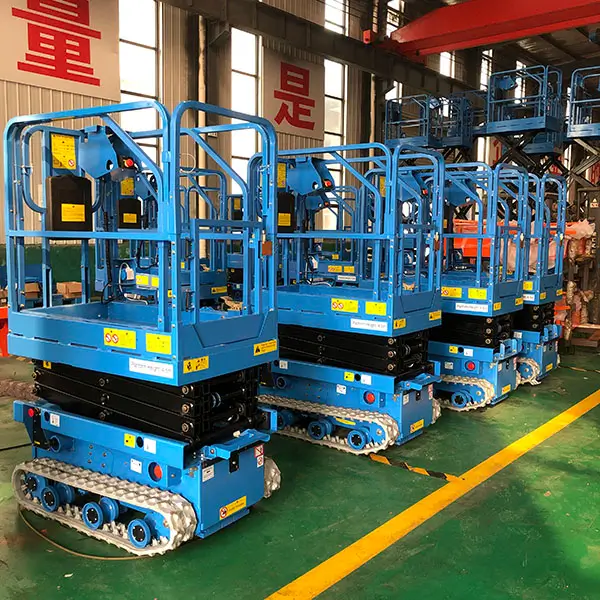

Small Tracked Scissor Lift

• Small Tracked Scissor Lift
• 6-14m working height
• 320kg load capacity
• 24V DC or 48V power source with long working cycles
• Zero inside turning radius
• Derivable and functional at full height
• Outriggers (optional)
• Emergency stop at both platform and ground controls
• Proportional controls for drive functions

Small Track Scissor Lift Parameters：

Below is a detailed analysis of its core components, working principles, features, and applications:

Basic Definition of Tracked Scissor Lift

A Tracked Scissor Lift is an aerial work platform that combines a tracked chassis for mobility and a scissor lift mechanism for vertical elevation. Designed to merge the terrain adaptability of tracked vehicles with the stability of scissor lifts, it is ideal for environments where traditional wheeled equipment struggles to operate.

Core Features of Tracked Scissor Lift

1. Tracked Drive System
   • Uses crawler tracks (similar to tanks or excavators) instead of tires. The large contact area and even pressure distribution allow stable movement on soft ground (e.g., mud, sand), slopes, or rough terrain, preventing sinking or slippage.
   • Suitable for construction sites, outdoor fieldwork, agricultural maintenance, and other unpaved environments.
2. Scissor Lift Mechanism
   • Composed of multi-layered, high-strength steel cross arms (scissor arms) driven by hydraulic or electric actuators. These arms extend or retract vertically to raise or lower the work platform.
   • Compact structure ensures smooth, precise height control.
3. Electrification and Intelligence
   • Most models use lithium batteries for zero emissions and low noise, making them suitable for indoor and outdoor use.
   • Equipped with intelligent control systems, including safety sensors (e.g., overload protection, tilt alarms) and remote operation capabilities.

Differences from Traditional Scissor Lifts

Typical Applications of Tracked Scissor Lift

1. Construction Sites: Exterior wall work, steel structure installation, high-altitude equipment repairs.
2. Agriculture & Forestry: Tree pruning, greenhouse maintenance, operations on uneven terrain.
3. Municipal Engineering: Streetlight repairs, bridge maintenance, emergency disaster response.
4. Warehousing & Logistics: High-level rack access, warehouse roof repairs (especially on unpaved ground).

Key Advantages of Tracked Scissor Lift

• Superior Terrain Adaptability: Operates on sand, mud, gravel, and other challenging surfaces inaccessible to traditional equipment.
• Enhanced Safety: Tracked chassis reduces tipping risks; scissor mechanism ensures stable lifting with multi-layered safety protocols.
• Eco-Friendly: Electric drive minimizes carbon emissions, ideal for indoor or environmentally sensitive areas.
• High Efficiency: Reduces repositioning needs and reliance on auxiliary equipment (e.g., cranes).

Working Principle Overview

1. Mobility: Tracks are driven by electric motors, enabling agile movement via differential steering.
2. Lifting: Hydraulic pumps or electric actuators extend the scissor arms to raise the platform vertically; controlled valve systems ensure smooth retraction during descent.
3. Safety Control: Sensors monitor load and platform levelness, automatically halting operation if limits are exceeded.

Summary

The Tracked Scissor Lift revolutionizes aerial work in complex terrain through its tracked chassis + scissor lift mechanism design. Balancing efficiency, safety, and environmental sustainability, it is an optimal solution for construction, municipal, agricultural, and other industries requiring operations on non-standard surfaces.
