The 1 Ton / 1000kg Scissor Lift Platform is a vertical lifting device designed for medium-duty industrial and commercial applications, utilizing a scissor-type mechanical structure to ensure stable and efficient transportation of goods or tools. With core features of high load capacity, compact design, and multi-scenario adaptability, it is ideal for warehousing, production line assembly, automotive repair, and equipment maintenance—particularly for frequent handling of heavy toolboxes, machinery, or medium-sized cargo.

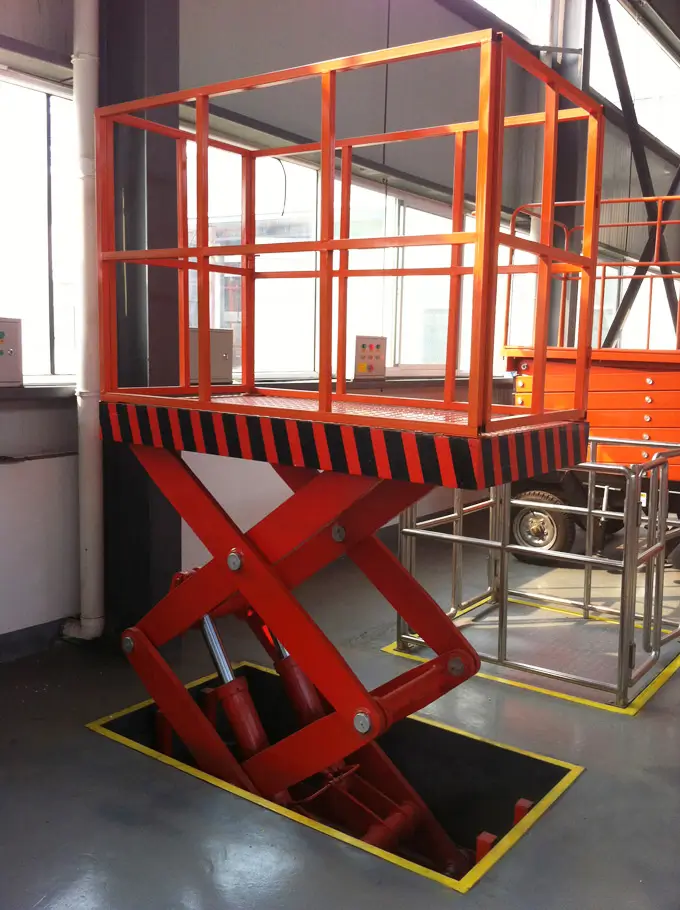

Stationary 1 Ton / 1000kg Scissor Lift Platform
Stationary 1 Ton / 1000kg Scissor Lift Platform is a versatile and reliable solution widely utilized in the logistics sector, production lines, and for vertical cargo movement from basements to upper floors. It is also well-suited for applications such as lifting stages and control consoles. Characterized by its stable structure, low failure rate, dependable operation, safety, efficiency, and ease of maintenance, this lift can be customized with various combinations of features to meet specific user requirements. These options include safety protection devices for the lifting platform, electrical control modes, working platform configurations, power supply options, and walking drive mechanisms.
- Stationary 1 Ton / 1000kg Scissor Lift Platform
- Rated load: 500kg-80ton
- Maximum lifting height: 1m-6m
- Voltage:110v 220v 240v 380v Optional
- Certification:CE ISO9001
- Lift Drive / Actuation:Electric Motor
Our Stationary 1 Ton / 1000kg Scissor Lift Platform is equipped with several key safety features:
- Hydraulic Pipe Protection: Explosion-proof valves safeguard the hydraulic lines, preventing potential ruptures and ensuring reliable operation.
- Over-Pressure Prevention: Spillover valves automatically regulate and prevent dangerously high pressure levels during lifting.
- Emergency Lowering Capability: An emergency descent valve allows for safe platform lowering in case of power loss or other critical situations.
- Contact-Sensitive Safety Stop: A safety bar is installed to immediately stop the platform’s descent if it encounters any obstacle, providing crucial protection for items and individuals.
Stationary 1 Ton / 1000kg Scissor Lift Platform Parameters：
| Model | Loading capacity (Kg) | Lifting height (m) | Platform Size（mm) | Minimum Height (mm) | Power (KW) | Weight (Kg) |
| SJG0.3-3 | 300 | 3 | 2000*1200 | 650 | 1.1 | 780 |
| SJG0.5-5 | 500 | 5 | 2000*1000 | 850 | 2.2 | 1200 |
| SJG1-3.3 | 1000 | 3.3 | 1900*1500 | 840 | 3 | 1300 |
| SJG1-4.3 | 1000 | 4.3 | 2500*2000 | 860 | 3 | 2500 |
| SJG1-6 | 1000 | 6 | 2200*1500 | 1230 | 2.2 | 2500 |
| SJG2-3.5 | 2000 | 3.5 | 2200*1500 | 1000 | 3 | 1800 |
| SJG3-4.5 | 3000 | 4.5 | 2200*1500 | 1060 | 4 | 2200 |
| SJG1.5-3 | 1500 | 3 | 1800*1200 | 820 | 2.2 | 1480 |
| SJG2-4.8 | 2000 | 4.8 | 2000*2000 | 980 | 4 | 2200 |
| SJG2-6 | 2000 | 6 | 2200*2000 | 1150 | 5 | 2800 |

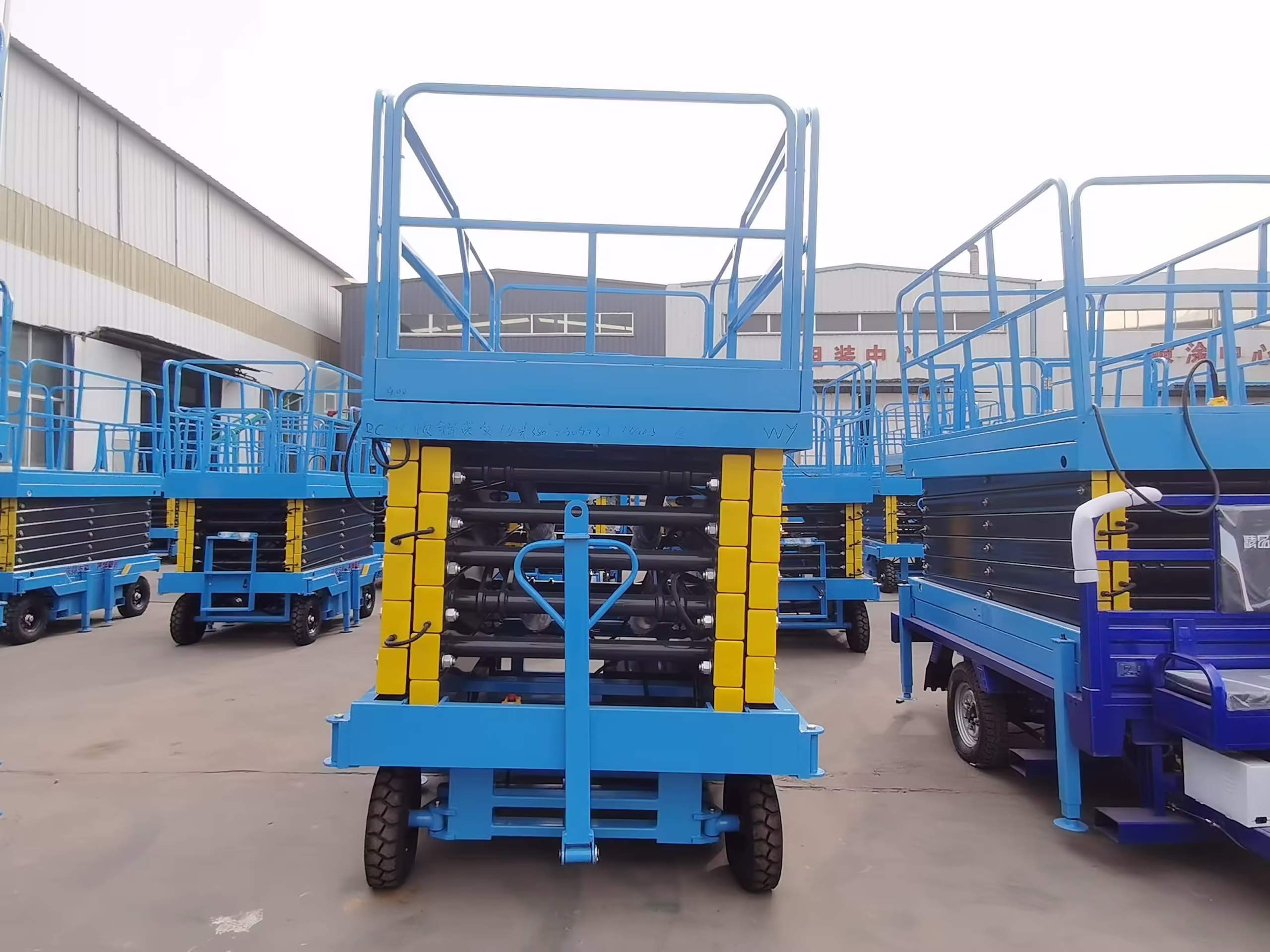

Mobile 1 Ton / 1000kg Scissor Lift Platform
A mobile 1 ton / 1000kg scissor lift platform is a material handling device equipped with wheels and Trailer device, allowing it to be moved around a work area by vehicle or hand, while also providing the capability to lift loads up to 1 ton (1000 kilograms) to a working height. It features a flat platform that is raised and lowered using a scissor mechanism, typically powered by hydraulics and electric. This type of lift offers flexibility for lifting and positioning heavy items in various locations within a facility. Movable hydraulic 1 Ton / 1000kg Scissor Lift Platform is AC power, DC and Diesel power are also available for option.
- Rated Loading Capacity: 300kg 500kg 1000kg 1500kg 2000kg
- 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.
- Max. Lifting Height: 3m 6m 8m 10m 12m 4m 16m 18m
- After-sales Service Provided: Online support, Engineers available to service machinery overseas
- Certification: CE ISO
- Lift Drive / Actuation: Electric hydraulic
Mobile 1 Ton / 1000kg Scissor Lift Platform Parameters：
| Model | Lifting height(m) | Load(Kg) | Platform Dimension(mm) | Overall dimensions(mm) | Overall weight(Kg) |
| 1000kg | |||||
| SJY1.0-4 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
| SJY1.0-6 | 6 | 1000 | 2100*1200 | 2250*1350*1300 | 1400 |
| SJY1.0-8 | 8 | 1000 | 2100*1200 | 2250*1350*1420 | 1585 |
| SJY1.0-10 | 10 | 1000 | 2100*1200 | 2250*1350*1530 | 1700 |
| SJY1.0-12 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
| SJY1.0-14 | 14 | 1000 | 2812*1600 | 3067*1810*1900 | 3230 |

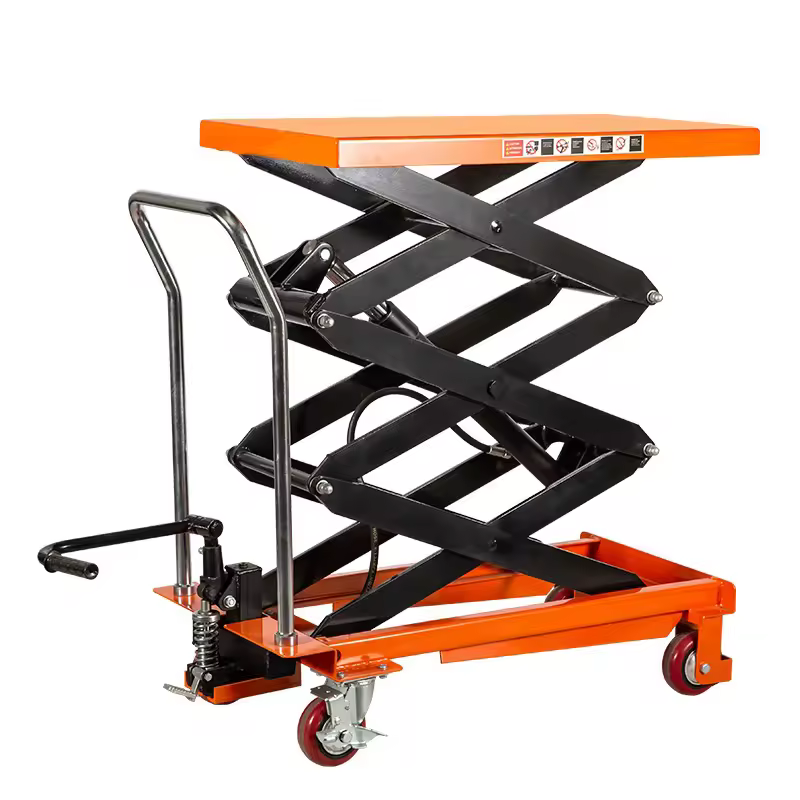

Manual 1 Ton / 1000kg Scissor Lift Platform
The Manual 1 Ton / 1000kg Scissor Lift Platform is a compact and efficient lifting machine mainly used for light lifting, item handling, and the movement of small valuables. Its attractive design and robust construction ensure stability and reliability, with performance and lifespan meeting top industry standards. Predominantly featuring hydraulic drive, its small size and mobility make it widely applicable in logistics, warehouse management, libraries, supermarkets, and small equipment manufacturing.
- Rated Loading Capacity：100kg-2000kg
- Max. Lifting Height：3m
- Power Source: electro-hydraulic
- Min. Lifting Height:415mm
Manual 1 Ton / 1000kg Scissor Lift Platform Parameters：
| Item/Model | PTS1000 |
| Rated load | 1000kg |
| The maximum height | 1000mm |
| Minimum height | 430mm |
| Lifting height | 670mm |
| Table size | 1000x512x55mm |
| Handle the height from the ground | 1010mm |
| On foot to lift the heavy weight of the times | ≤40 |
| Wheel diameter | 150mm |
| Single pack size | 1130x610x460mm |
| Gross weight | 132kg |
Below is a detailed analysis of its core components, working principles, features, and applications:
1. Key Features Of 1 Ton / 1000kg Scissor Lift Platform
- Precise Load Capacity
- Rated load: 1000 kg (1 ton), suitable for palletized goods, machinery, industrial molds, and medium-weight materials.
- Flexible Power Options
- Hydraulic drive (electric/manual pump) or pure electric drive (lithium/lead-acid batteries); electric models operate at ≤65 dB for indoor/outdoor use.
- Compact & Efficient Design
- Folded height: 30–60 cm; max lifting height: 1.5–5 m; customizable platform sizes (e.g., 1.5m×1m–3m×2m) for space optimization and mobility.
- Multi-Layer Safety
- Anti-slip platform, mechanical locks, overload protection valves, emergency descent systems, and tilt sensors compliant with ISO 12100 and CE standards.
- Environmental Adaptability
- Optional IP54-rated coatings, corrosion-resistant materials, or anti-static surfaces for workshops, warehouses, or outdoor sites.
2. Product Advantages Of 1 Ton / 1000kg Scissor Lift Platform
- Enhanced Productivity
- Lifting speed: 0.1–0.3 m/s; lithium models recharge in 2 hours to minimize downtime.
- Low Maintenance Costs
- Modular design enables quick part replacement; electric models eliminate hydraulic leaks, requiring only joint lubrication.
- Versatile Installation
- Mobile units feature lockable swivel casters; fixed models support anchor bolts for production lines, storage areas, or temporary sites.
- Energy Efficiency
- Lithium models with energy recovery reduce consumption by 25% versus traditional hydraulics, ensuring zero emissions.
3. Structure & Core Components Of 1 Ton / 1000kg Scissor Lift Platform
- Scissor Arm System
- Dual-layer high-strength carbon steel arms with hot-dip galvanized surfaces, driven by hydraulic cylinders or motor-chain systems for synchronized stability.
- Load Platform
- Anti-slip steel or aluminum grating with rounded edges; optional removable guardrails, roller guides, or tool slots.
- Power Unit
- Hydraulic: Electric/high-pressure or manual pumps for heavy-load scenarios.
- Electric: 24V/48V DC motor + gearbox with wireless remote control for quiet operation.
- Smart Control System
- Integrated control panel or handheld remote with height presets, fault diagnostics, emergency stops, and IoT monitoring (optional).
- Safety Mechanisms
- Overload auto-lock, power-loss slow descent, platform leveling, audible/visual alarms, and anti-slip surfaces.
4. Working Principle Of 1 Ton / 1000kg Scissor Lift Platform
The 1 Ton Scissor Lift Platform operates via scissor leverage principles and hydraulic/electric systems:
- Power Activation: Hydraulic pumps or motors convert energy into mechanical thrust at scissor arm pivot points.
- Vertical Movement: Scissor arms expand to lift the platform; controlled descent via hydraulic flow reversal or motor reversal.
- Closed-Loop Control: Displacement sensors provide real-time height feedback; PLC ensures precision within ±2 mm (electric models).
- Safety Protocols: Auto-lock and alarms trigger at >3° tilt or overload; manual pressure release for emergencies.
5. Typical Applications Of 1 Ton / 1000kg Scissor Lift Platform
- Warehousing: Medium shelf access, pallet loading/unloading.
- Automotive Repair: SUV/light truck undercarriage inspections, tire replacements.
- Manufacturing: Production line equipment installation, heavy mold handling.
- Construction Sites: Tool/material lifting, lightweight construction logistics.
Summary
The 1 Ton / 1000kg Scissor Lift Platform excels in high load capacity, stability, and smart controls, setting the standard for medium-duty industrial lifting. Its modular design, precision movement, and robust safety systems enhance operational efficiency while reducing labor risks and maintenance costs—a cost-effective solution for manufacturing, logistics, and maintenance sectors.nd commercial sectors. Combining hydraulic/electric power with multi-layered safety systems, it enhances operational efficiency while reducing space and maintenance costs, delivering an ideal solution for aerial work and heavy-load handling.
