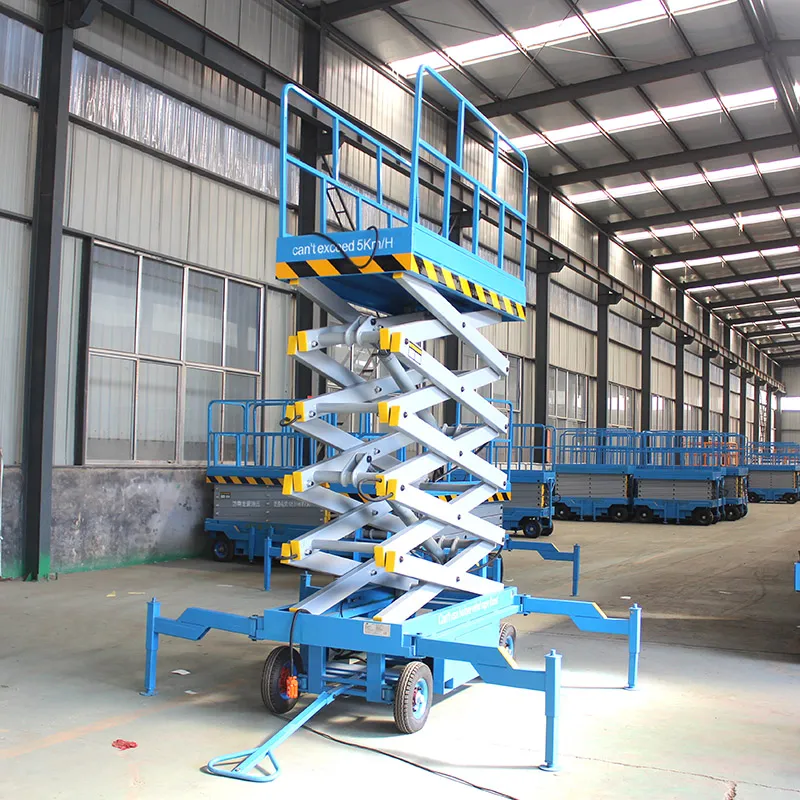

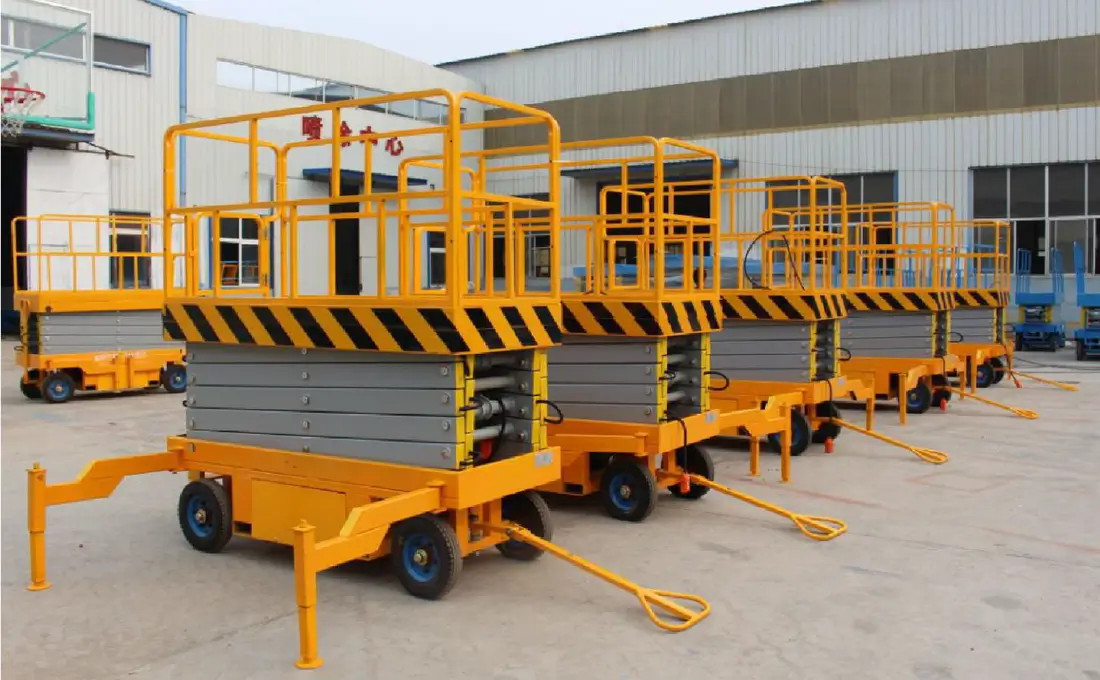

Trailer Scissor Lift
A trailer scissor lift also known as towable scissor lift or tow behind scissor lift, is a type of mobile elevating work platform (MEWP) that combines a scissor lift mechanism with a towable trailer. This design provides a versatile and convenient solution for accessing elevated work areas, as it can be easily transported between different job sites using a standard vehicle equipped with a tow hitch.
As a highly economical option for aerial work, trailer-mounted scissor lifts offer a height range spanning from 4 to 18 meters and a lifting capacity of 500 kg to 2000 kg. Standard models trailer scissor lift utilize AC power for vertical movement and are manually positioned. However, customization options for trailer scissor lift are extensive, including DC power for lifting, diesel engine alternatives, and even the addition of DC power for enhanced mobility, an extendable platform, and durable solid tires.
- Trailer Scissor Lift
- Maximum Working Height: 4-18 meters,customized size from 20 meters to 26 meters
- Rated Load Capacity: 300kg/500kg/1000kg
- Extendable platform: 0-900mm,load 113kg.
- Main Material: Carbon Steel.
- Guardrail: removable,height 1.1meter
- Lifting Speed: 0.05-0.09 meters/second
- Voltage: 110V,220V,380V, customized. It can be equipped with DC and diesel power or both.
Trailer scissor lift Parameters：
| Model | Lifting height(m) | Load(Kg) | Platform Dimension(mm) | Overall dimensions(mm) | Overall weight(Kg) |
| 500kg | |||||
| SJY0.5-4 | 4 | 500 | 2100 * 830 | 2250*950*1200 | 800 |
| SJY0.5-6 | 6 | 500 | 2100 * 830 | 2250 *950*1200 | 880 |
| SJY0.5-7 | 7 | 500 | 2100 * 830 | 2250 *950*1280 | 970 |
| SJY0.5-8 | 8 | 500 | 2100 * 930 | 2250 *1060*1380 | 1050 |
| SJY0.5-9 | 9 | 500 | 2100 * 930 | 2250 *1060*1500 | 1165 |
| SJY0.5-10 | 10 | 500 | 2100 * 1230 | 2250 *1350*1530 | 1360 |
| SJY0.3-11 | 11 | 300 | 2100 * 1230 | 2250 *1350*1650 | 1400 |
| SJY0.5-12 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
| SJY0.5-14 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2486 |
| SJY0.3-16 | 16 | 300 | 2812*1600 | 3067*1810*2080 | 3063 |
| SJY0.3-18 | 18 | 300 | 3070*1600 | 3321*1810*2080 | 3900 |
| 1000kg | |||||
| SJY1.0-4 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
| SJY1.0-6 | 6 | 1000 | 2100*1200 | 2250*1350*1300 | 1400 |
| SJY1.0-8 | 8 | 1000 | 2100*1200 | 2250*1350*1420 | 1585 |
| SJY1.0-10 | 10 | 1000 | 2100*1200 | 2250*1350*1530 | 1700 |
| SJY1.0-12 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
| SJY1.0-14 | 14 | 1000 | 2812*1600 | 3067*1810*1900 | 3230 |
Scissor Lift Trailer
A scissor lift trailer is essentially a scissor lift mounted onto a trailer chassis, designed for easy transportation between different work sites. These units offer the vertical lifting capabilities of a standard scissor lift combined with the mobility of a trailer, allowing them to be towed behind a vehicle. Once on-site, they can be positioned and stabilized using outriggers before the platform is elevated for tasks such as maintenance, construction, or access work. Scissor lift trailers are a convenient solution for applications requiring aerial access at multiple locations, offering a balance of reach and portability.
Multi purpose trailer:
Rated Loading Capacity: 1-7 TON
Size: customizable
Usage: Transportation of excavators, Automotive, scissor lifts
Scissor Lift Trailer Parameters：
| Description For Flatbed Trailer | ||||
| Drawbar | 100x50mm RHS. 1600mm long w/ 13mm safety chains (AS4177 stamp) | |||
| Chassis | 100x50mm & 70X50mm RHS (Not angle); Cross Bar 50x50x3mm | |||
| Floor | Checker plate 2.5mm | |||
| Side | 300mm high, 1.5mm flat steel plate | |||
| Axles | 50mm solid square, electric braking | |||
| Spring | 7Leafs rocker roller suspension (not 5 or 6leafs cheap and light spring) | |||
| Wheel | 15″light truck tyre w/ painted rim | |||
| Jockey wheel | 8″ top wind heavy duty jockey wheel | |||
| Coupler | 50mm; 2″; 1 7/8 NZ standard | |||
| Lights | LED Tail-Lights with 7pin plug and 7 core wiring (E-mark & DOT) | |||
| Surface Treatment | Hot dipped galvanized | |||
