Manlift Scissor Lift

Manlift Scissor Lift is a a type of aerial work platform designed for safely elevating personnel to perform tasks at height. It has the characteristics of stable structure, flexible operation, and high safety factor, and is suitable for various scenarios such as factories, construction sites, airports, shopping malls, etc. We are the earliest manufacturer and supplier of scissor lifts in China. We have a professional team and the most reasonable prices.

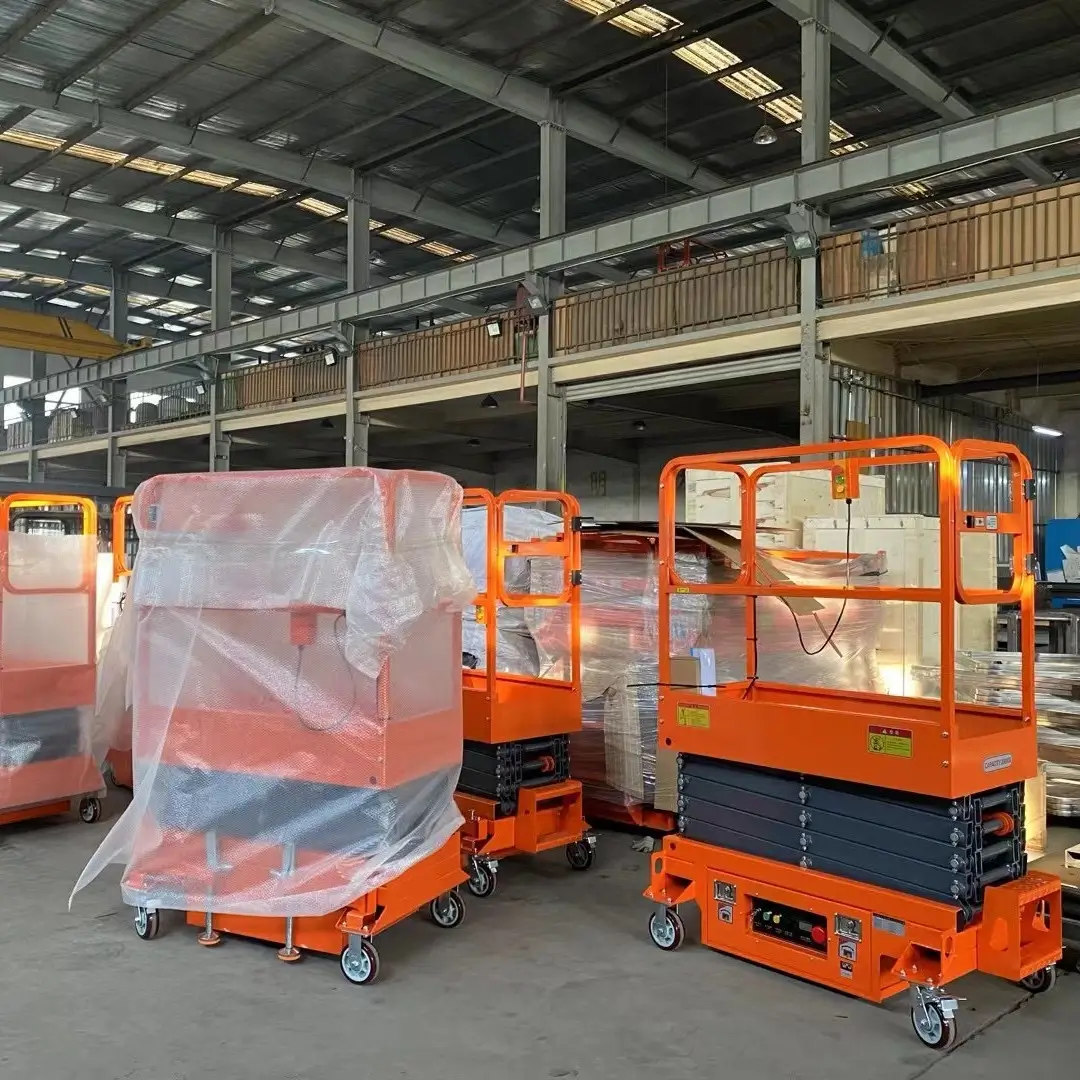

Push Around Manlift Scissor Lift

A push-around manlift scissor lift is a mobile aerial work platform designed to elevate personnel to working heights. Unlike self-propelled models, it requires manual pushing or towing to move it into position. Once in place, the scissor mechanism lifts the platform vertically using hydraulic or mechanical power, providing a stable and secure work area for tasks such as maintenance, installation, or cleaning. These lifts are typically lightweight and compact, making them ideal for indoor use or on smooth, level surfaces where frequent repositioning is not required over long distances. Their simplicity and maneuverability in confined spaces make them a cost-effective solution for various elevated work applications.

3 meter 10 feet push-around manlift scissor lift:

Rated Loading Capacity: 240kg

Max. Lifting Height: 3-5.8m

Lift Drive / Actuation:Electric hydraulic Motor

Certification:CE ISO SGS

Power supply: battery

Push Around Manlift Scissor Lift Parameters：

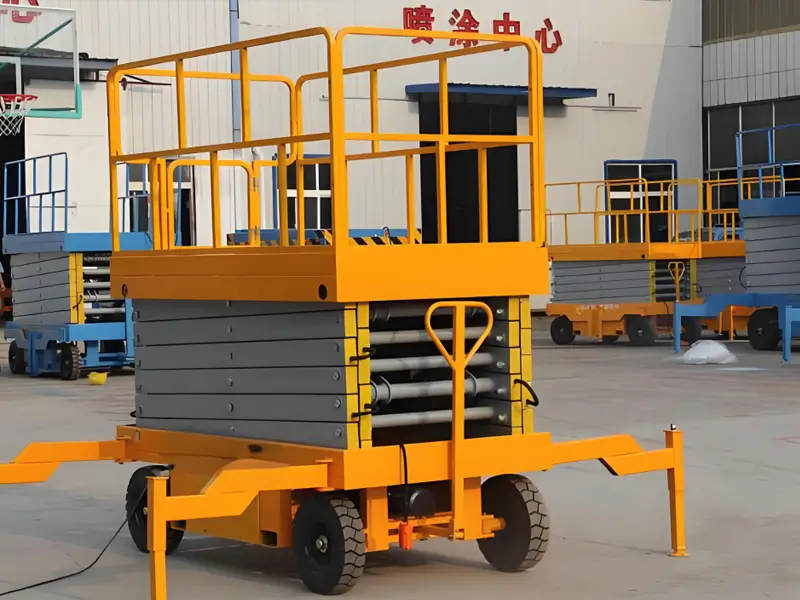

Towable Manlift Scissor Lift

A towable manlift scissor lift is a mobile aerial work platform designed to be towed behind a vehicle, such as a truck or van, for transportation between job sites.Once positioned and stabilized with outriggers, its scissor mechanism lifts personnel vertically to provide access for various elevated tasks like maintenance, painting, or construction. These lifts offer a balance between reach and portability, making them suitable for outdoor applications and locations where self-propelled units might not be practical or cost-effective. Their towable nature allows for easy relocation, enhancing their versatility across different work environments.

• Load capacity: 300kg-2000kg
• Max. Lifting Height：4-20m
• Lifting speed: 4-6m/min
• Power: AC&DC choice
• Electric hydraulic model

Towable Manlift Scissor Lift Parameters：

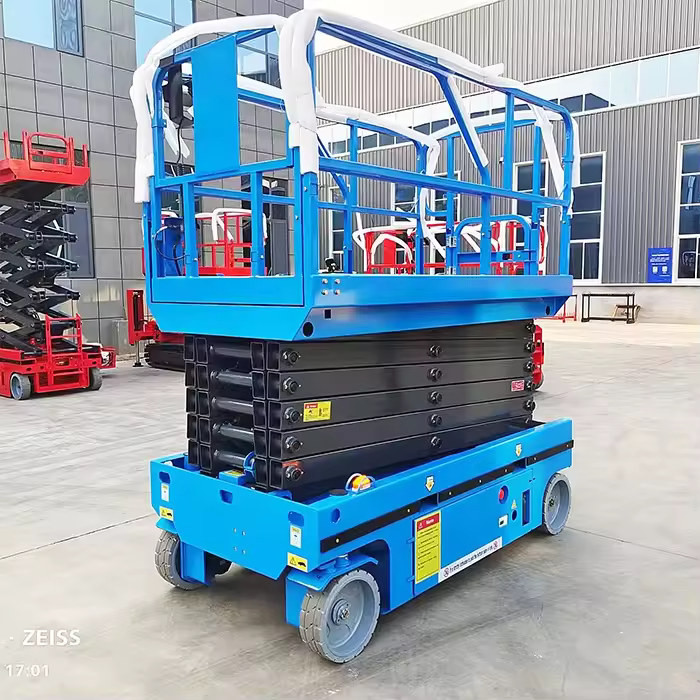

Self-propelled Manlift Scissor Lift

A self-propelled manlift scissor lift is a mobile aerial work platform equipped with its own drive system, allowing it to move independently without the need for pushing or towing. Operators can control both the vertical lifting and horizontal movement of the platform from the work area. These lifts offer enhanced maneuverability and efficiency, making them well-suited for tasks that require frequent repositioning or covering larger work areas, such as in construction, warehousing, and maintenance. Their ability to navigate various surfaces and inclines increases productivity and reduces manual effort.

• Maximum Working Height: 3-13.8 meters
• Rated Load Capacity: 230kg/320kg/450kg
• Extendable platform: 0-900mm,load 113kg.
• Main Material: Q235 Carbon Steel.
• Guardrail: foldable,height 1.1meter
• DC power.

Self-propelled Manlift Scissor Lift Parameters：

Below is a detailed analysis of its core components, working principles, features, and applications:

I. Manlift Scissor Lift Product Parameters and Features

1. Basic Specifications
   • Load Capacity: Common models support 300kg, 500kg, 680kg, and 1000kg; customized models can reach up to 2000kg.
   • Lifting Height: Ranges from 4 meters to 18 meters, with some customized models exceeding this range.
   • Power System: Compatible with AC (380V/220V), DC, or battery-driven systems; some models feature stepless speed control.
   • Mobility: Four-wheel design with optional self-propelled functionality; climbing capability of 25%-50% for outdoor rough terrain.
2. Safety Features
   • Fall Protection: Equipped with anti-burst valves and emergency descent systems to prevent platform drops even during hydraulic line failure.
   • Operational Safety: Dual-control buttons (upper/lower platforms), overload protection, and emergency lighting for power outages.
   • Stability: Manganese steel construction (e.g., Q345B rectangular tubes) and scissor-type structure; base dimensions typically 2250×1060×1500mm for enhanced stability.
3. Optional Configurations
   • Imported hydraulic systems, auxiliary walking devices, extendable platforms.
   • Tilt alarms that lock lifting functions when inclination exceeds 3 degrees.

II. Manlift Scissor Lift Safety Operating Guidelines

1. Pre-Operation Preparation
   • Ensure equipment labels display rated load, max height, and manufacturer details.
   • Operators must hold valid certifications and complete daily inspection records.
2. Operational Requirements
   • Site Inspection: Verify flat and solid ground; fully extend and lock outriggers.
   • Personal Protection: Full-body harnesses must be worn, anchored to platform attachment points during lifting and transferred to independent anchor points at working height.
   • Supervision: Mark work zones with warning barriers and assign dedicated supervisors to prevent collisions or unauthorized access.
3. Prohibited Actions
   • Overloading, exceeding height limits, or moving the platform while elevated.
   • Using the lift as a material hoist; climbing guardrails or standing on mid-rails.

III. Manlift Scissor Lift Applications and Purchasing Recommendations

Typical Use Cases: Factory maintenance, high-altitude installations, venue cleaning, outdoor electrical repairs.

Buying Tips:

Contact manufacturers for custom requirements (e.g., special loads/heights).

Select models based on height, load, and terrain (fixed or self-propelled).

Prioritize safety features (e.g., anti-burst valves, emergency lighting) and after-sales support.
