Manual Scissor Lift

The Manual Scissor Lift is a human-powered vertical lifting device that utilizes a scissor-type mechanical structure, requiring no electricity or hydraulic power. Designed for lightweight, low-frequency lifting tasks, its core features include simplicity and cost-effectiveness, making it ideal for small warehouses, retail stores, vehicle maintenance, and temporary operations—particularly in budget-conscious or power-limited environments.

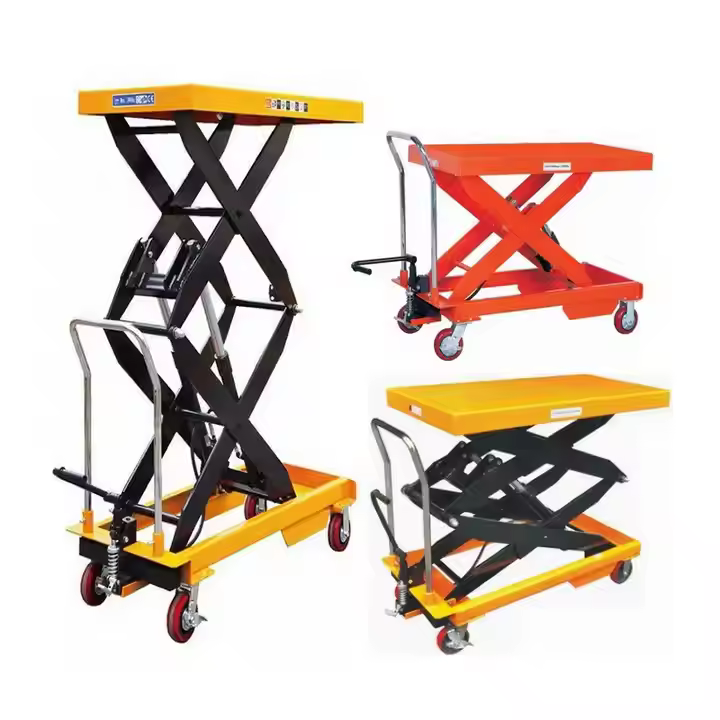

Manual Scissor Lift table

A manual scissor lift table is a material handling device with a flat platform that can be raised and lowered using a hand-operated hydraulic pump connected to a scissor mechanism. Equipped with wheels or casters for mobility, it allows for the lifting and positioning of goods to an ergonomic working height without the need for electric power. These tables are a cost-effective and versatile solution for various industrial and commercial tasks, where occasional lifting and movement of materials are required.

Rated Loading Capacity: 330 lbs. 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.

150kg 300kg 500kg 1000kg 1500kg 2000kg

Max table height:1500/2000 mm

Certification:CE ISO

Manual Scissor Lift table Parameters：

Below is a detailed analysis of its core components, working principles, features, and applications:

1. Key Features of Manual Scissor Lift

1. Manual Operation
   • Driven by hand cranks, foot pedals, or lever mechanisms, eliminating reliance on external power sources.
2. Lightweight Construction
   • Built with aluminum alloy or lightweight steel, total weight ranges from 50–200 kg for easy mobility and setup.
3. Basic Load Capacity
   • Supports 100–1,000 kg, suitable for toolboxes, small equipment, and medium-weight cargo.
4. Rapid Deployment
   • No installation required; compact folded size ensures easy storage and transport.
5. Essential Safety
   • Includes mechanical locks, anti-slip platforms, and basic guardrails for stability.

2. Product Advantages of Manual Scissor Lift

1. Ultra-Low Cost
   • No complex power systems reduce purchase and maintenance expenses.
2. Environmental Versatility
   • Operates in remote areas, temporary sites, or during power outages.
3. Zero Maintenance
   • Minimal moving parts; only periodic lubrication of hinges needed.
4. Portability
   • Lightweight design with wheels or handles allows single-person operation and mobility.

3. Structure & Core Components of Manual Scissor Lift

1. Scissor Arm System
   • Single or dual-layer steel arms driven manually for simple, durable vertical movement.
2. Load Platform
   • Lightweight steel or anti-slip wooden surface with optional removable guardrails.
3. Manual Drive Unit
   • Hand-Cranked: Gear and chain system converts rotational force to lifting motion.
   • Foot-Pedal: Foot pump activates mechanical linkages to move scissor arms.
4. Locking Mechanism
   • Pin locks or ratchet mechanisms secure platform height and prevent accidental drops.
5. Mobility Components
   • Swivel casters (with brakes) or foldable legs for easy positioning and stability.

4. Working Principle of Manual Scissor Lift

The Manual Scissor Lift operates via scissor-type lever mechanics and human-powered transmission:

1. Manual Input: The operator turns a hand crank or presses a foot pedal to generate mechanical energy.
2. Scissor Arm Motion: Gears, chains, or linkages push the scissor arms’ pivot points, lifting the platform vertically.
3. Height Locking: Pins or ratchets lock the arms in place; releasing the lock allows gravity-driven descent.

5. Typical Applications of Manual Scissor Lift

• Retail Stores: Adjusting display shelves, installing lighting.
• Vehicle Maintenance: Motorcycle or small car undercarriage repairs.
• Temporary Work: Event setups, stage equipment adjustments.
• Home Workshops: DIY workbench height adjustments, furniture assembly.

Summary

The Manual Scissor Lift excels in zero energy consumption, ultra-low cost, and extreme portability, serving as an essential tool for light industrial, commercial, and household applications. Its purely manual design and minimalist structure lower operational barriers and maintenance complexity, offering a high-value solution for small-scale lifting needs.
