20 ft / 6m Scissor Lift

The 20 ft / 6m Scissor Lift (also referred to as a 20 foot scissor lift or 20′ scissor lift) is a versatile hydraulic and electric aerial platform designed for mid-height operations. Spanning a working range of 5.5–7 meters (18–23 feet), this 20 scissor lift model combines stability, high load capacity (300–800 kg), and mobility, making it ideal for warehousing, industrial maintenance, construction, and commercial setups requiring frequent relocation.

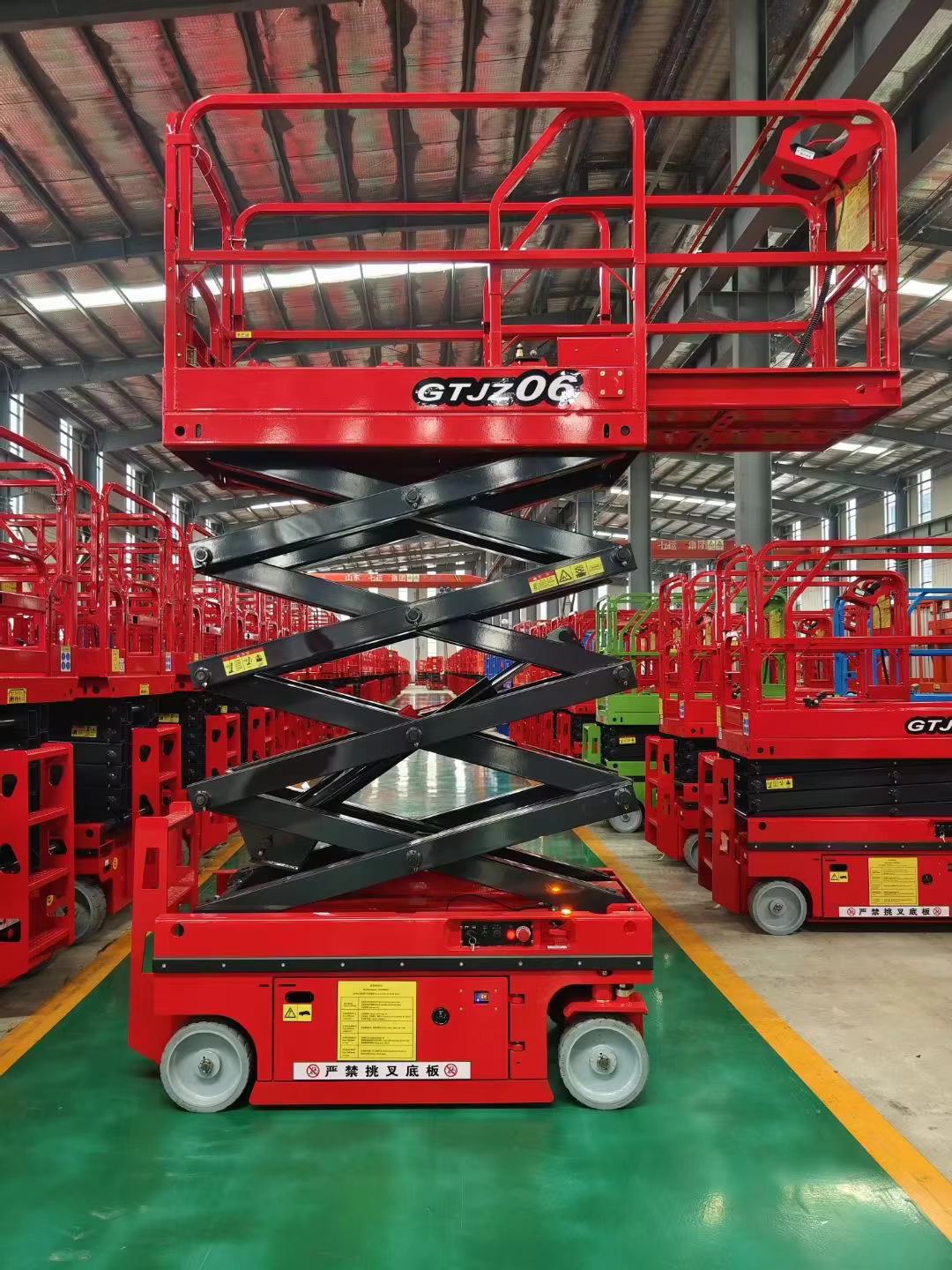

Self-propelled 20 ft / 6m Scissor Lift

A self-propelled 20 ft / 6m scissor lift is a mobile aerial work platform with a maximum platform height of 20 feet (approximately 6 meters), offering a working height of around 26 feet (about 7.9 meters). Equipped with its own drive system, it allows operators to control both the vertical movement and the horizontal movement of the lift from the platform, enhancing efficiency on various job sites. Typically electrically powered for indoor and some outdoor use on slab surfaces, it provides a stable platform for maintenance, installation, and construction tasks requiring moderate reach and maneuverability.

Self-propelled 20 ft / 6m Scissor Lift:

Rated Loading Capacity: 320kg 480kg

Max. Lifting Height: 20 foot (6 meter)

Lift Drive / Actuation:Hydraulic electric

Platform:Anti-skid Checkered Plate

Self-propelled 20 ft / 6m Scissor Lift Parameters：

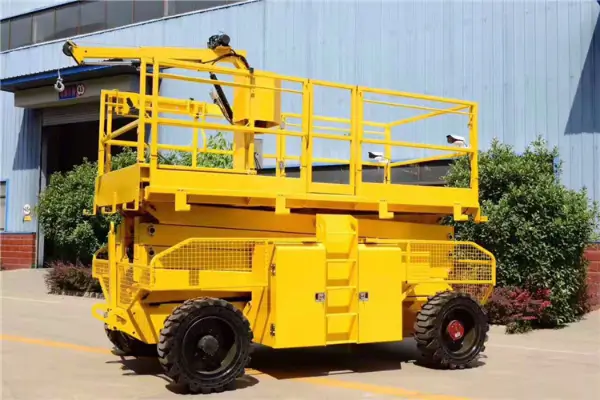

Off road scissor lift 20 ft / 6m

An off-road scissor lift with a 20 ft / 6m platform height is a robust aerial work platform specifically designed to operate on uneven and challenging outdoor terrain. Typically powered by a diesel or electric engine, it features large, rugged tires and often four-wheel drive to provide enhanced traction and stability on construction sites, agricultural areas, or other rough ground conditions. With a maximum platform height of 20 feet (approximately 6 meters), offering a working height of around 26 feet (about 7.9 meters), it allows personnel to safely access elevated work areas in demanding outdoor environments.

• Diesel rough terrain scissor lift / off road 20 ft / 6m scissor lift / 4wd scissor lift:
• Capacity: 365~1100kg  803~2430 lbs
• Platform Height: 9.7~15.9m  31.8~52.2 ft
• Certification:CE ISO
• Power supply: diesel

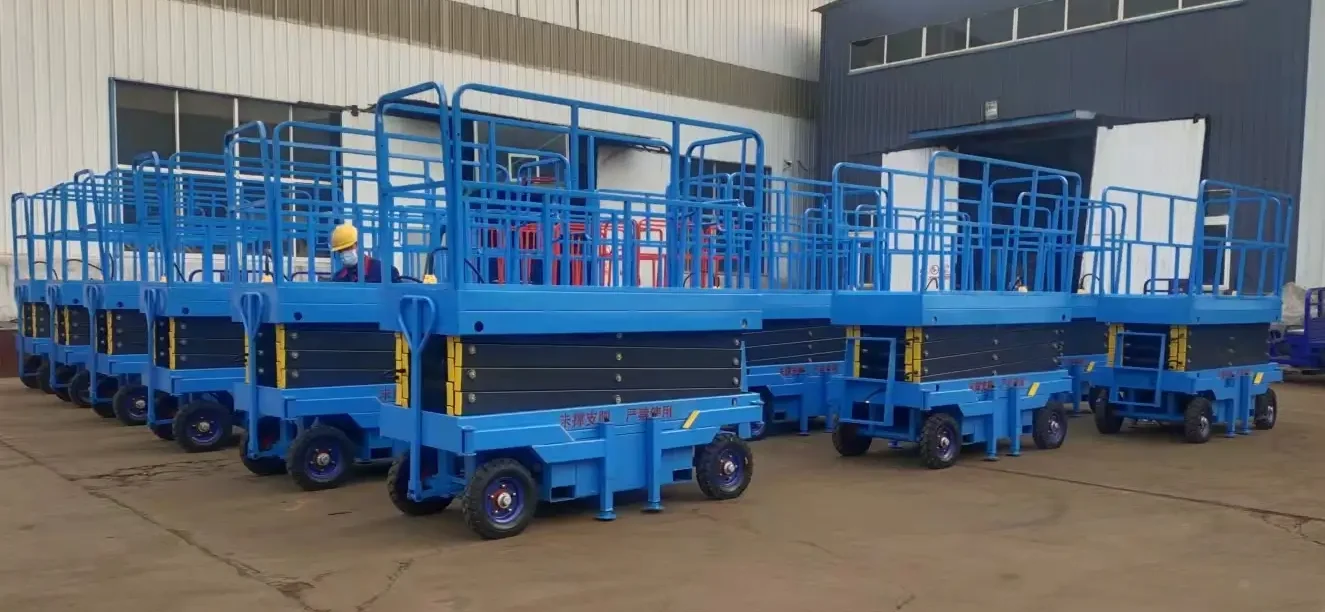

Towable 20 ft / 6m Scissor Lift

A towable 20 ft / 6m scissor lift is a portable aerial work platform with a maximum platform height of 20 feet (approximately 6 meters), providing a working height of around 26 feet (about 7.9 meters). Designed for easy transportation between job sites by towing behind a vehicle, it offers a convenient elevated work platform. Once positioned and stabilized with outriggers, the scissor mechanism lifts the platform for tasks such as maintenance, painting, or light construction. Its towable nature provides versatility for accessing different elevated locations while adhering to local towing and operation safety standards.

• Rated load: 300kg 500kg 1000kg 2000kg
• Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
• Walking mode: hand pull or assist walking
• Power supply: ac, battery, diesel, manual
• Type: Electric Hydraulic
• 19′ scissor lift weight: 880kg-1780kg

Towable 20 ft / 6m Scissor Lift Parameters：

Below is a detailed analysis of electric 20 ft / 6m Scissor Lift features, advantage and applications:

Key Features Of 20 ft / 6m Scissor Lift

1. Efficient Operation & Precision Control
   • The 20-foot scissor lift delivers a lifting speed of 0.2–0.4 m/s with “soft start/stop functionality” for smooth, vibration-free operation.
   • Hover functionality at any height ensures precise positioning (e.g., lighting installation, equipment calibration) on the 20′ scissor lift.
2. All-Terrain Mobility
   • Self-Propelled Electric rough terrian Models: The 20 scissor lift features 4-wheel drive or omnidirectional wheels, handling slopes up to 30% in workshops, warehouses, or mild outdoor terrain.
   • Folded Dimensions: The 20 ft scissor lift collapses to a height of 0.3 meters (12 inches) and width of 1 meter (3.3 feet), enabling passage through narrow aisles or doorways.
3. High Load Capacity & Extended Runtime
   • The 20-foot scissor lift supports 2–3 operators with tools and materials.
   • Electric Hydraulic Models: 48V batteries provide the 20′ scissor lift with 8–10 hours of runtime and fast charging (2-hour full charge).
   • Diesel Hydraulic Models: Diesel-powered for 10–12 hours of continuous operation.
4. Intelligent Safety Systems
   • Tilt Protection: Auto-locks the 20 scissor lift if ground slope exceeds 3°.
   • Overload Protection: Hydraulic pressure relief valves prevent system damage on the 20 ft scissor lift.
   • Dual-Control Mode: Platform console + wireless remote for emergency shutdown.
5. Modular Customization
   • The 20-foot scissor lift offers optional extensions: expanded platforms (up to 3m × 1.5m), insulated workstations, or explosion-proof configurations.

Core Advantages Of 20 ft / 6m Scissor Lift

• Space Adaptability: The 20 scissor lift’s compact design fits narrow spaces like warehouse aisles or retail backrooms.
• Cost Efficiency: Electric models reduce energy consumption by 30%; hydraulic variants operate off-grid in remote sites.
• Durability: The 20 ft scissor lift’s arms use  high-strength steel with zinc-coated anti-corrosion finish for a 10+ year lifespan.
• Rapid Deployment: The 20′ scissor lift sets up in <1 minute with no complex installation.

Structure & Working Principle

1. Mechanical Structure

• Scissor Arms: 4–5-stage interlinked high-strength steel arms on the 20-foot scissor lift balance height and storage space.
• Work Platform: Anti-slip steel grating (optional lightweight aluminum), 1.2-meter removable guardrails, and tool hooks.
• Power System:
  • Electric Hydraulic Models: The 20 scissor lift integrates 48V batteries and quiet hydraulic pumps.
  • Hydraulic Diesel Models: Diesel engine-driven dual hydraulic pumps with efficient cooling.
• Chassis: Heavy-duty steel frame, stabilizers, and omnidirectional wheels (electric 20 ft scissor lift).

2. Operating Principle

• Hydraulic Drive Process:
  1. Motor/diesel engine powers hydraulic pump → pressurizes oil → extends the 20′ scissor lift’s arms via cylinders.
  2. Proportional valves regulate oil flow for precise speed and height control.
• Safety Loop:
  • Sensors monitor load, platform leveling, and system pressure on the 20-foot scissor lift, triggering alarms or shutdowns.
  • Dual redundant braking: Electromagnetic locks + mechanical parking brakes prevent movement.

Typical Applications Of 20 ft / 6m Scissor Lift

• Warehouse Logistics: High-level shelving (5–7m) access using the 20 scissor lift.
• Industrial Maintenance: Production line installations with the 20 ft scissor lift.
• Commercial Use: Mall lighting replacements performed via the 20′ scissor lift.
• Construction: Steel welding and fire safety installations using the 20-foot scissor lift.

Conclusion

The 20 ft Scissor Lift (or 20-foot Scissor Lift) delivers balanced performance, safety, and adaptability for mid-height tasks. Whether termed the 20′ scissor lift or 20 scissor lift, this equipment enhances productivity while reducing labor costs. Its modular design and durability make it a cornerstone solution for warehousing, manufacturing, and construction industries.
