13 ft / 4m Scissor Lift

The 13 ft / 4m Scissor Lift is a compact, hydraulically or electrically driven aerial platform designed for mid-height operations, covering a working range of 3.5–4.5 meters (11.5–14.8 feet) with a rated load capacity of 200–2000 kg. Ideal for warehouse management, indoor renovations, equipment maintenance, and retail shelving tasks, it combines the stability of a scissor mechanism with portability, making it perfect for confined indoor spaces or mobile operations.

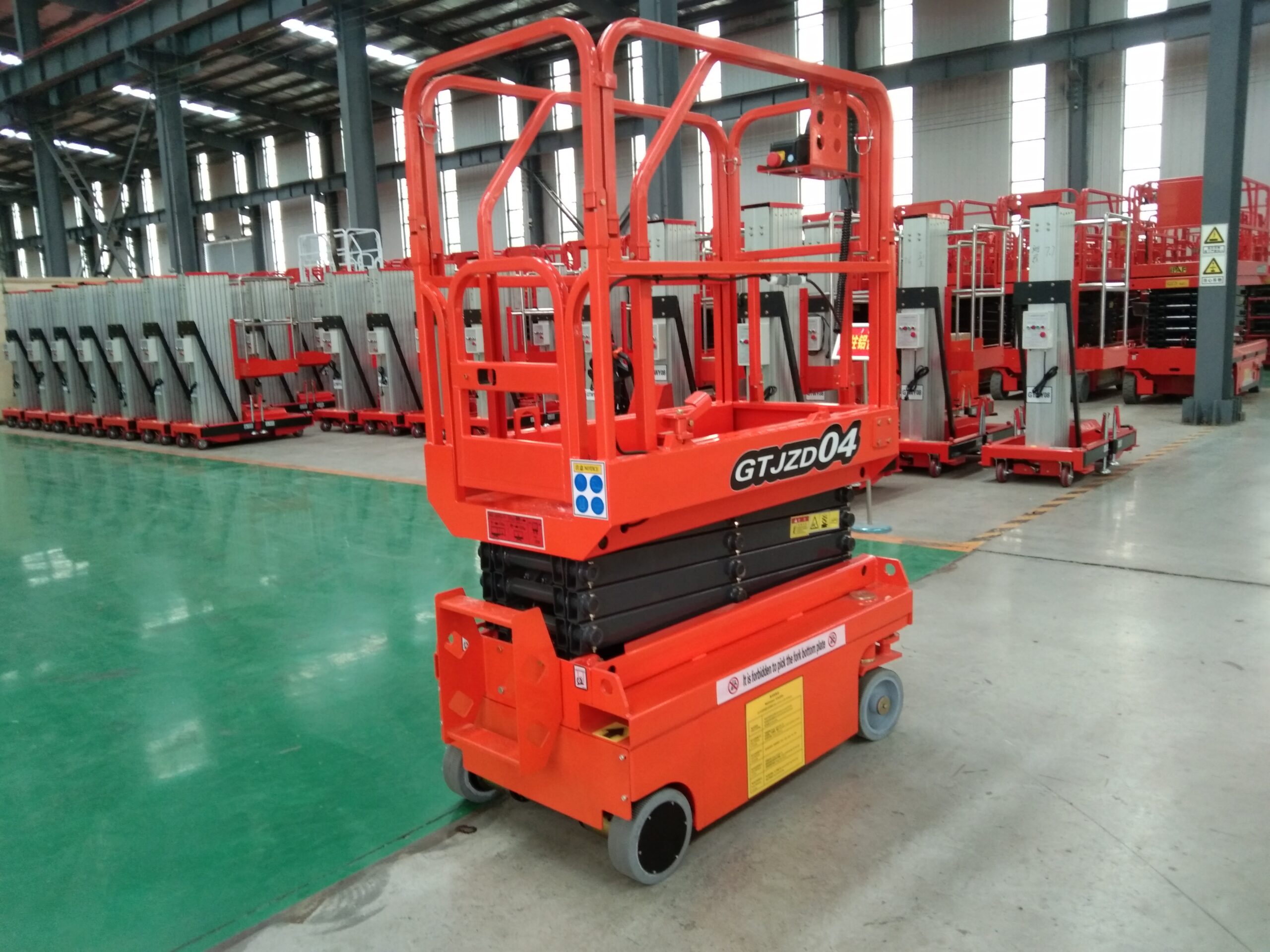

Self-propelled 13 ft / 4m Scissor Lift

A self-propelled 13 ft / 4m scissor lift is a compact aerial work platform with a maximum platform height of 13 feet (approximately 4 meters), providing a working height of around 19 feet (about 5.8 meters). Equipped with its own drive system, it allows an operator to control both the vertical movement and the horizontal movement of the lift from the platform, enhancing efficiency for tasks requiring movement across a work area. Typically electrically powered for indoor use on slab surfaces due to its quiet operation and zero emissions, its small size and maneuverability make it well-suited for maintenance, installation, and stock picking in tighter spaces.

Self-propelled 13 ft / 4m Scissor Lift

Rated Loading Capacity: 240kg

Lifting Height：3m / 10 ft

Platform: Anti-skid Checkered Plate

Self-propelled 13 ft / 4m Scissor Lift Parameters：

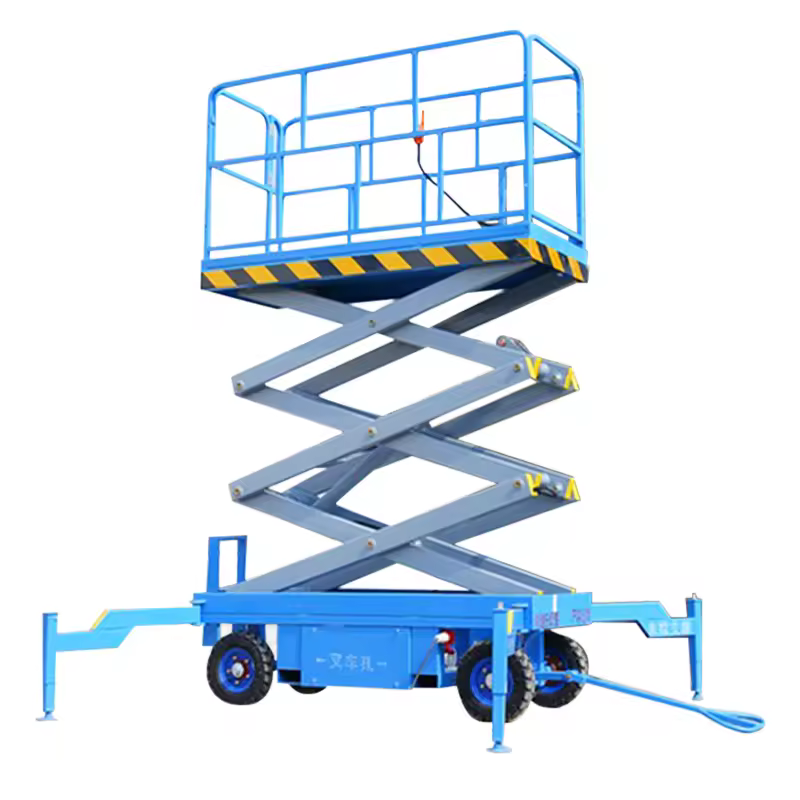

Towable 13 ft / 4m Scissor Lift

A towable 13 ft / 4m scissor lift is a portable aerial work platform with a maximum platform height of 13 feet (approximately 4 meters), offering a working height of around 19 feet (about 5.8 meters). Designed to be towed behind a vehicle or dragging by hand for easy transportation between job sites, it provides a convenient elevated work platform. Once positioned and stabilized with outriggers, the scissor mechanism lifts the platform for tasks such as maintenance, painting, or light construction. Its towable nature makes it a versatile solution for accessing different elevated locations.

• Maximum Working Height: 4-18 meters,customized size from 20 meters to 26 meters
• Rated Load Capacity: 300kg/500kg/1000kg
• Extendable platform: 0-900mm,load 113kg.
• Main Material: Q235 Carbon Steel.
• Guardrail: removable,height 1.1meter
• Lifting Speed: 0.05-0.09 meters/second
• Voltage: 110V,220V,380V, customized. It can be equipped with DC and diesel power or both.

Towable 13 ft / 4m Scissor Lift Parameters：

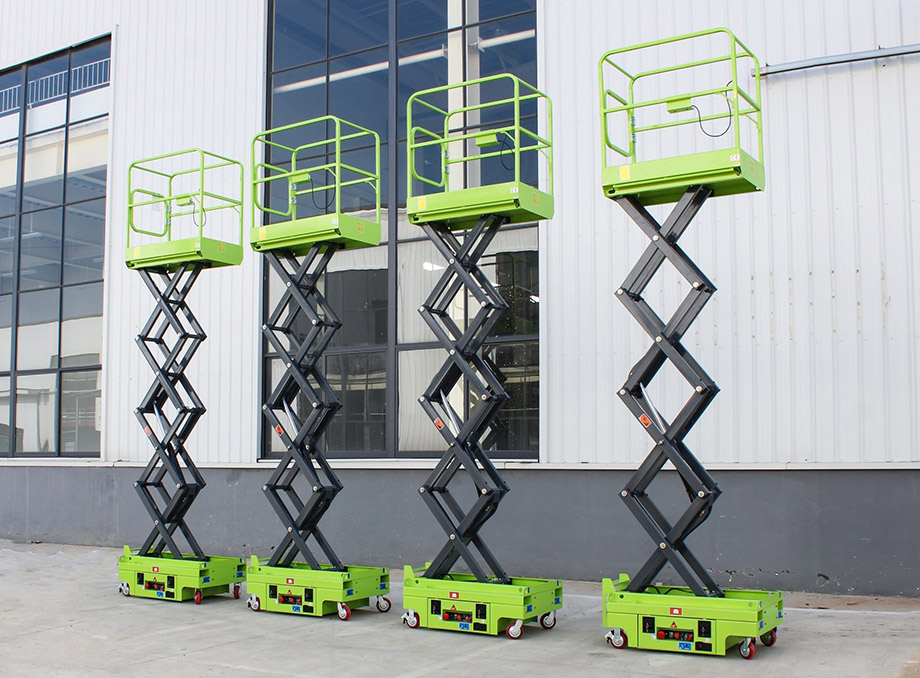

Push Around 13 ft / 4m Scissor Lift

A push-around 13 ft / 4m scissor lift is a compact and manually mobile aerial work platform with a maximum platform height of 13 feet (approximately 4 meters), providing a working height of around 19 feet (about 5.8 meters). It lacks a self-propelled drive and needs to be manually pushed or towed into position. Once stationary, the scissor mechanism lifts the platform using manual hydraulic pumping or sometimes electric power. Ideal for indoor use on level surfaces where frequent repositioning over long distances isn’t required, it offers a cost-effective and maneuverable solution for tasks like maintenance, cleaning, or installation in tighter spaces.

Push Around 13 ft / 4m Scissor Lift:

Rated Loading Capacity: 240kg 300kg

Max. Lifting Height: 4

Lift Drive / Actuation:Electric hydraulic Motor

Push Around 13 ft / 4m Scissor Lift Parameters：

Below is a detailed analysis of electric 13 ft / 4m Scissor Lift features, advantage and applications:

Key Features of 13 ft / 4m Scissor Lift

1. Compact & Space-Efficient
   • Folded height as low as 15–25 cm (6–10 inches) and width of 0.8–1 meter, allowing easy passage through doorways or narrow aisles.
   • Lightweight design (150–800 kg) supports manual pushing or electric self-propelled mobility without specialized transport.
2. Precise & Stable Lifting
   • Smooth lifting speed (0.1–0.3 m/s) with “soft start/stop functionality” to minimize platform vibration, ideal for delicate tasks like lighting installation.
   • Hydraulic and electric drive systems enable precise height positioning and hovering.
3. Dual-Power Versatility
   • Electric : Powered by 24V/48V batteries with 6–8 hours runtime, noise levels below 60 dB, and zero emissions for indoor use.
4. Multi-Layered Safety
   • Anti-slip Platform: Diamond-pattern steel or grating flooring with foldable guardrails (1 meter high).
   • Smart Safety Systems: Overload protection, emergency stop buttons, tilt alarms (auto-lock at >2° slope), and hydraulic safety valves to prevent falls.
5. Modular Customization
   • Optional extensions: expanded platforms, tool hooks, or insulated workstations for specialized tasks like electrical repairs.

Core Advantages of 13 ft / 4m Scissor Lift

• Space Adaptability: Ultra-low folded profile and narrow design excel in tight spaces like warehouses or malls.
• Cost-Effective: Low acquisition and maintenance costs; electric feature long-lasting batteries .
• Eco-Friendly: Electric variants operate silently, meeting strict indoor environmental standards (e.g., hospitals, libraries).
• Rapid Deployment: Ready to use immediately, boosting operational efficiency.

Structure & Working Principle

1. Mechanical Structure

• Scissor Arms: High-strength alloy steel cross-linked arms with single/dual-stage folding for compact storage.
• Work Platform: Anti-slip surface (optional lightweight aluminum) with tool hooks and power outlets.
• Base Unit:
  • Electric: Integrated motors, batteries, wireless remote control.

2. Operating Principle

• Hydraulic Drive Process:
  1. motor-driven hydraulic pump pressurizes oil to extend scissor arms.
  2. Proportional valves regulate oil flow for speed and height control.
  3. Sensors monitor load, platform leveling, and system pressure, triggering alarms or shutdowns for anomalies.
• Safety Mechanisms:
  • Emergency Descent: Manual release valves lower the platform during power loss.
  • Dual Braking: Electromagnetic locks secure arms; mechanical brakes prevent chassis movement.

Typical Applications of 13 ft / 4m Scissor Lift

• Warehouse Logistics: Mid-level shelving access, label replacement, CCTV installation.
• Retail: Ceiling light maintenance, promotional display setups, shelf restocking.
• Light Industry: Production line adjustments, small machinery servicing, workshop lighting.
• Facility Management: HVAC filter cleaning, ceiling repairs, fire safety inspections.

Conclusion

The 13 ft / 4m Scissor Lift delivers compact design, intelligent safety features, and cost efficiency for mid-height tasks. Whether opting for the quiet electric hydraulic variant, it ensures safe and efficient operations in indoor and outdoor settings. With modular customization and low maintenance, it is a practical, long-term investment for businesses prioritizing productivity and safety.
