1100 Lb / 500kg Scissor Lift

The 1100 Lb / 500kg Scissor Lift (also known as a medium-duty scissor lift) is a vertical lifting platform designed for stable transportation of goods or personnel using a scissor-type mechanical structure. Built for efficient load handling, adaptability, and multi-scenario compatibility, it is widely used in warehousing, light manufacturing, retail, and equipment maintenance—ideal for environments requiring frequent handling of medium-weight materials or tools.

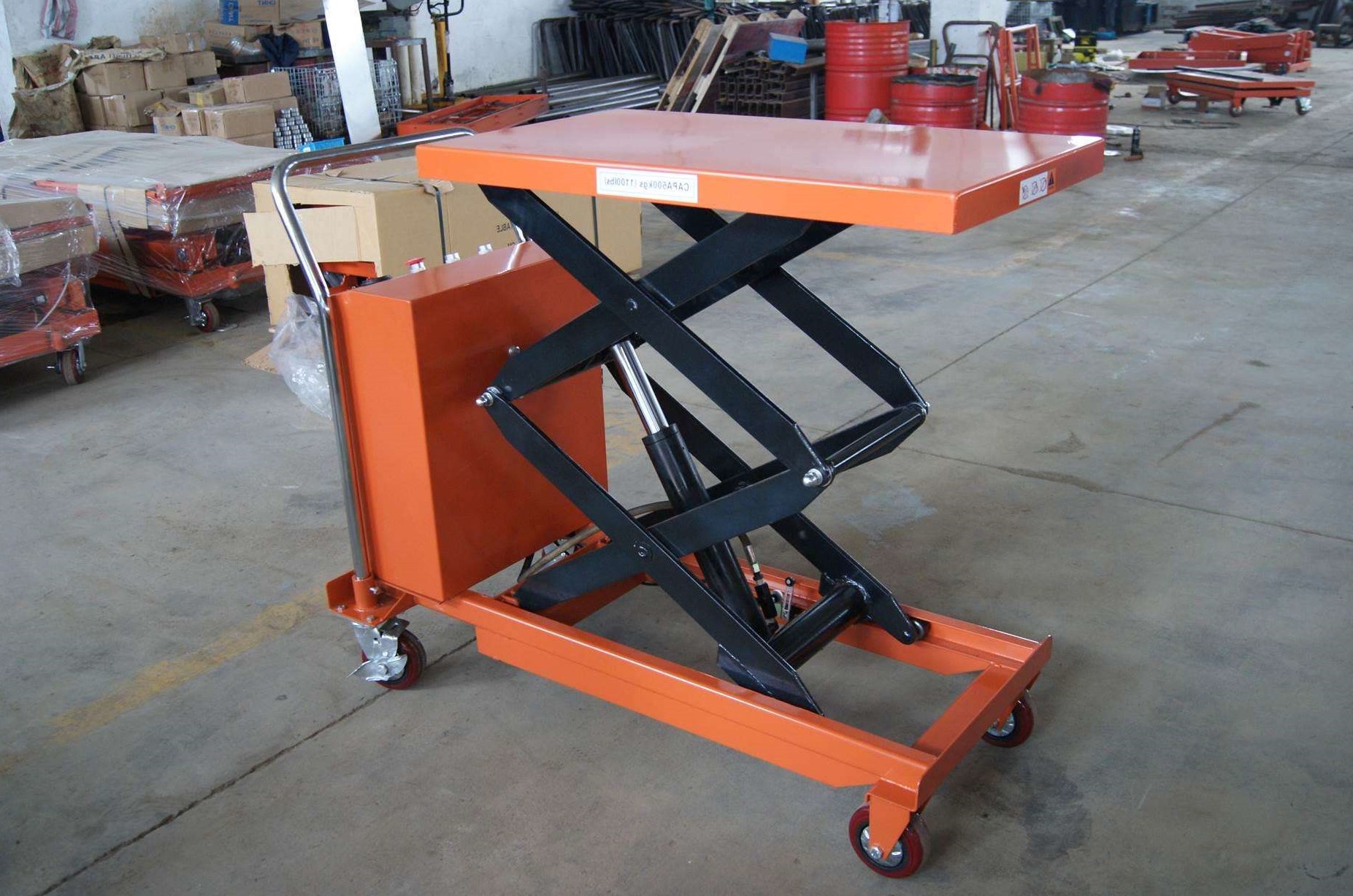

1100 Lb / 500kg Scissor Lift platform trolley

A 1100 lb / 500kg scissor lift platform trolley is a mobile material handling device designed to lift and transport loads up to 1100 pounds (500 kilograms). It features a flat platform that can be raised and lowered using a scissor mechanism, typically powered by hydraulics (either manual or electric). Equipped with wheels or casters for easy maneuverability within a workspace, this trolley provides an ergonomic solution for lifting and moving heavy items, aiding in tasks such as assembly, order picking, or machine feeding.

Rated Loading Capacity: 350kg 500kg 1000kg

Lifting Height: 3meter

Certification: CE ISO9001

Wheel type: nylon / pu

Power: Manual/battery

1100 Lb / 500kg Scissor Lift platform trolley Parameters：

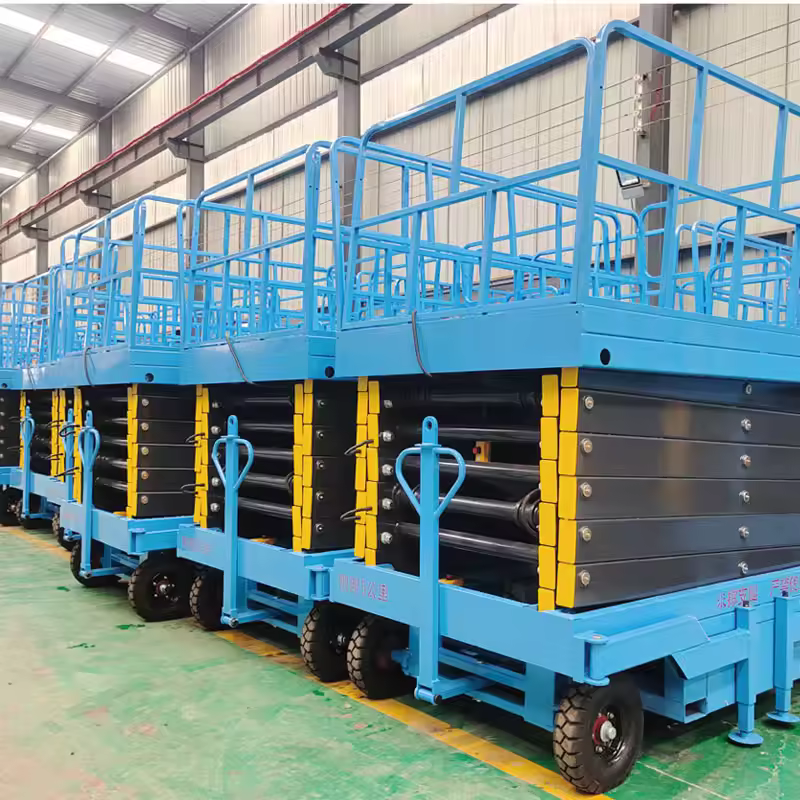

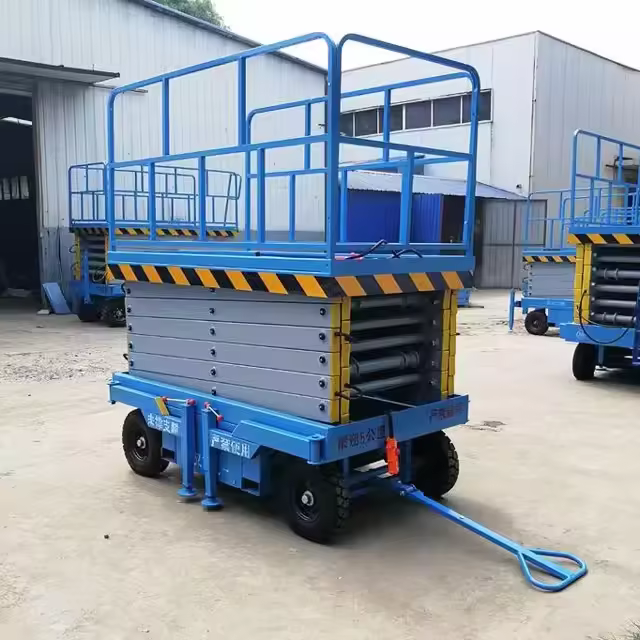

Towable 1100 Lb / 500kg Scissor Lift

A towable 1100 lb / 500kg scissor lift is a portable lifting device designed to elevate loads up to 1100 pounds (500 kilograms) to a working height. It features a scissor mechanism for vertical lifting and is equipped with wheels and a towing hitch for easy transportation between job sites. Once positioned, it can be stabilized, and the platform raised using hydraulic or electric power, providing a versatile solution for tasks requiring lifting at different locations, such as maintenance or light construction.

• Rated Loading Capacity: 500kg
• Max. Lifting Height: 18m
• Voltage: 110v 220v 240v 380v Optional
• Power: Electric-hydraulic/Diesel

Towable 1100 Lb / 500kg Scissor Lift Parameters：

Stationary 1100 Lb / 500kg Scissor Lift

A stationary 1100 lb / 500kg scissor lift is a permanently installed lifting platform designed to vertically raise and lower goods or personnel weighing up to 1100 pounds (500 kilograms) within a fixed location. Utilizing a scissor mechanism powered by hydraulics or electricity, it is anchored to the floor or integrated into a building’s structure. These lifts are commonly used in loading docks, assembly lines, or maintenance bays to overcome level changes or provide a stable, elevated work area for repetitive lifting tasks.

Our 500kg stationary scissor lift is generally used for lifting cargo and people to working places and for loading/unloading between different levels. Load capacities range from 100kg to 5 tons depending on the working height. This 500kg model offers lifting heights from 1m to 12m, and the table size can be custom-made. We also provide adaptable control systems and working voltages (e.g., 220V, 380V, 415V) to meet client specifications.

• Rated Loading Capacity: 500~3000KG
• Table Size: 1300×800
• Lowered Height: 190mm
• Max. Lifting Height: 500-2000m

Stationary 1100 Lb / 500kg Scissor Lift Parameters：

This article breaks down its core advantages, ideal applications, and selection tips to help you tackle high-load tasks efficiently.

1. Key Features Of 1100 Lb / 500kg Scissor Lift

1. Precise Load Capacity
   • Maximum rated load: 500 kg (1100 lb), suitable for medium-sized equipment, cargo containers, toolkits, and more.
2. Versatile Power Options
   • Hydraulic drive (manual or electric pump) or pure electric drive (lithium/lead-acid batteries); electric models operate at ≤60 dB for indoor/outdoor use.
3. Compact & Portable Design
   • Folded height: 30–50 cm; lifting height: 1.5–4 m; customizable platform sizes (e.g., 1.2m×0.8m–2m×1.5m) optimize space and mobility.
4. Multi-Layer Safety
   • Anti-slip platform, mechanical locking pins, overload protection valves, and emergency descent systems; select models include tilt sensors and alarms (compliant with ISO 13849).
5. Environmental Resilience
   • Optional IP54-rated dust/waterproof coatings or corrosion-resistant materials for workshops or outdoor sites.

2. Product Advantages Of 1100 Lb / 500kg Scissor Lift

1. High Operational Efficiency
   • Lifting speed: 0.1–0.3 m/s; lithium models recharge in 1.5 hours, minimizing downtime.
2. Low Maintenance Costs
   • Modular design simplifies part replacement; electric models eliminate hydraulic leaks, requiring only lubrication and cleaning.
3. Flexible Adaptability
   • Mobile units feature lockable swivel casters; fixed models support floor anchoring for warehouses, production lines, or outdoor sites.
4. Energy-Saving & Eco-Friendly
   • Lithium models enable energy recovery, reducing consumption by 30% compared to traditional hydraulics, with zero emissions.

3. Structure & Core Components Of 1100 Lb / 500kg Scissor Lift

1. Scissor Arm System
   • Dual-layer high-strength carbon steel or aluminum alloy arms driven by hydraulic cylinders or motor-chain systems for synchronized movement.
2. Load Platform
   • Anti-slip steel or engineered plastic surface with rounded edges; optional removable guardrails or tool hooks.
3. Power Unit
   • Hydraulic: Manual/electric pumps for uniform thrust.
   • Electric: 12V/24V DC motor + gearbox with wireless remote control.
4. Control System
   • Integrated control panel or handheld remote for height presets, fault diagnostics, and emergency stops; IoT monitoring (optional).
5. Safety Mechanisms
   • Overload auto-lock, power-loss slow descent, platform leveling, and anti-slip textures.

4. Working Principle Of 1100 Lb / 500kg Scissor Lift

The 500kg scissor lift operates via scissor-type leverage principles and hydraulic/electric systems:

1. Power Input: Hydraulic pumps or motors convert energy into mechanical thrust at scissor arm pivot points.
2. Vertical Movement: Scissor arms expand to lift the platform; controlled descent via hydraulic valve release or motor reversal.
3. Closed-Loop Control: Displacement sensors provide real-time height feedback; PLC adjusts precision (±3 mm) in electric models.
4. Safety Protocols: Auto-lock during overloads/tilts; manual pressure release for emergency lowering.

5. Typical Applications Of 1100 Lb / 500kg Scissor Lift

• Warehousing: Medium shelf restocking, package sorting station adjustments.
• Light Manufacturing: Production line maintenance, mold replacements.
• Retail: Display shelf adjustments, lighting installations.
• Equipment Repair: Agricultural machinery undercarriage inspections, light industrial equipment servicing.

Summary

The 1100 Lb / 500kg Scissor Lift excels in efficient load handling, adaptability, and safety, making it a top choice for medium-duty vertical lifting. With modular design, smart controls, and multi-power compatibility, it boosts productivity while reducing operational costs and risks—a cost-effective solution for industrial, commercial, and logistics applications.tailored heavy-duty scissor lift solutions!n industrial and logistics sectors.
