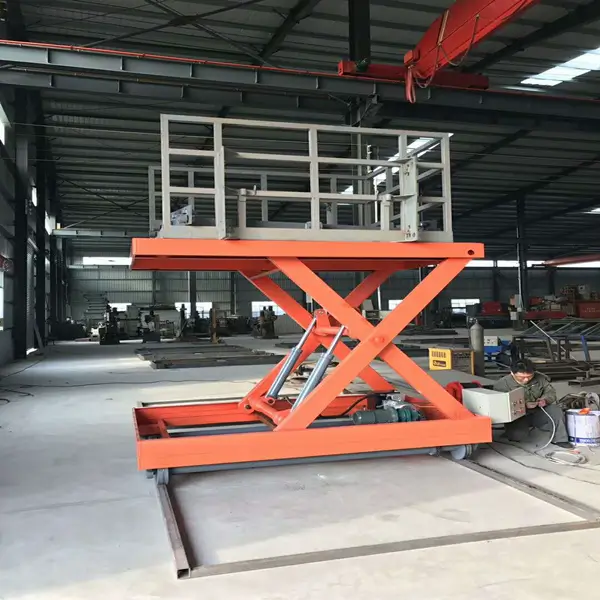

3 Ton scissor lift platform

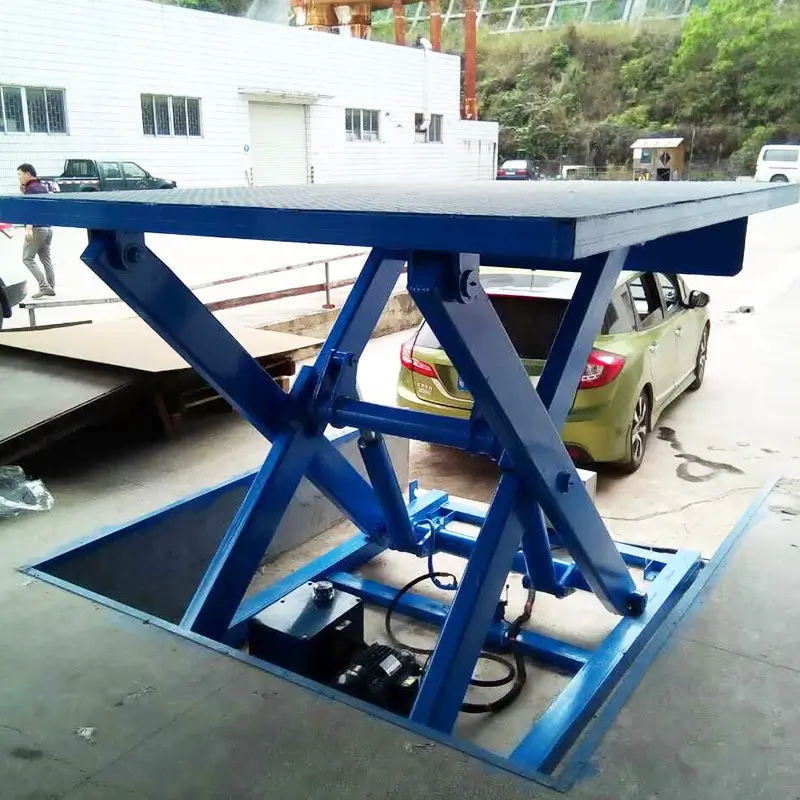

3 Ton scissor lift platform is a powerful electric-hydraulic lifting platform featuring a robust shear structure, providing exceptional weight capacity, smooth and stable lifting, and overall structural integrity. The table dimensions can be customized to your specific requirements. 3 Ton scissor lift platform can be installed within a foundation pit, allowing the platform to be flush with the ground surface. Alternatively, it can be designed with specialized access plates to facilitate easy movement of forklifts or vehicles onto the platform. The 3 Ton scissor lift platform is characterized by its stable construction, low incidence of failure, dependable operation, safety, efficiency, and straightforward maintenance.

The production of our 3-ton scissor lift platform is governed by a stringent Internal Quality Control System. The superior quality and extended lifespan of our 3 Ton scissor lift platform are ensured through the utilization of advanced and unique manufacturing equipment, including Laser Cutting Machines, Powder Coating Equipment, Shot Blasting Machines, and Automatic Welding Machines. These technologies collectively guarantee the high quality and long-term reliability of our products for our customers.

3 Ton scissor lift platform for sale

Rated Loading Capacity: 3 ton

Max. Lifting Height: 6m

Type: Electric Hydraulic

Power supply: 3-phase 380V/220V

Table size: customizable

3 Ton scissor lift platform specification

Here are the necessary building and utility provisions for installing staionary 3 Ton scissor lift platform:

• Foundation Requirements: The foundation pit must include a waterproof layer, with dimensional tolerances not exceeding 10mm. The foundation should have a minimum thickness of 200mm and be constructed using C20 or C30 grade concrete.
• Power Supply: Please configure a suitable distribution box based on the lifting platform’s motor power. The standard power requirement for the lift is a three-phase four-wire AC 380V supply.
• Pre-Installed Conduit: Two conduits should be laid from the hydraulic power unit’s foundation pit (allowing entry from any direction). The bending radius “R” of any conduit corner must be greater than 40mm.
• Hydraulic Power Unit Location: The placement of the hydraulic power unit should be determined by the customer based on what is most accessible and convenient for operation.

Our Commitment to Service:

• Extensive Experience: With over a decade of specialized experience in scissor lifts, we possess a deep understanding of potential issues, allowing us to proactively mitigate risks for your orders and products.
• Dedicated 24/7 Online Support: A single, dedicated sales representative will assist you from your initial inquiry through to the shipment of your products, providing a streamlined and time-saving communication channel for all concerns.
• Rigorous Quality Control: Each 3 Ton scissor lift platform undergoes thorough inspection by our QC department prior to shipping, ensuring that any quality issues are identified and resolved before they reach you.
• Comprehensive After-Sales Service: We provide a one-year quality warranty. In the event of any quality-related problems with your scissor lift, we will provide a free part replacement. Our dedicated after-sales technical team is also available for real-time online video support.
