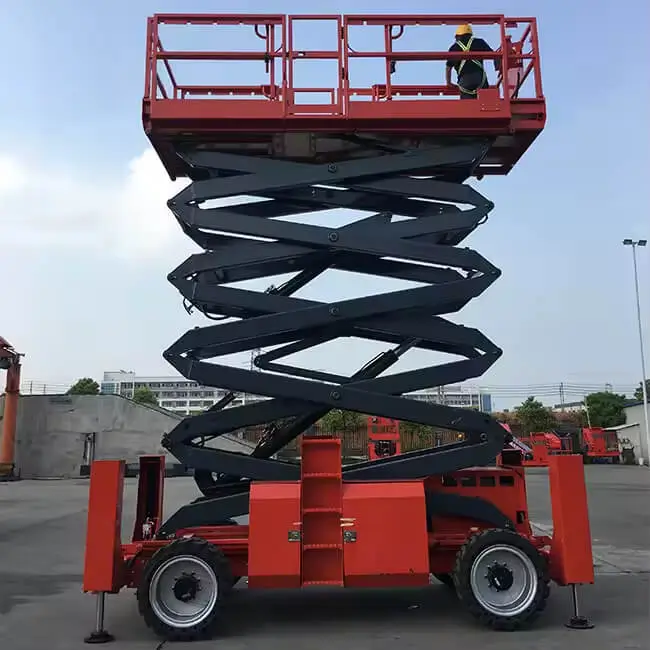

Rough Terrain Scissor Lift

A rough terrain scissor lift also known as off road scissor lift or all terrain scissor lift, is a type of aerial work platform designed to operate on uneven and challenging outdoor surfaces. Unlike standard scissor lifts that are best suited for flat, paved surfaces, rough terrain models are equipped with features that enhance their stability and mobility on construction sites, agricultural land, and other demanding environments.

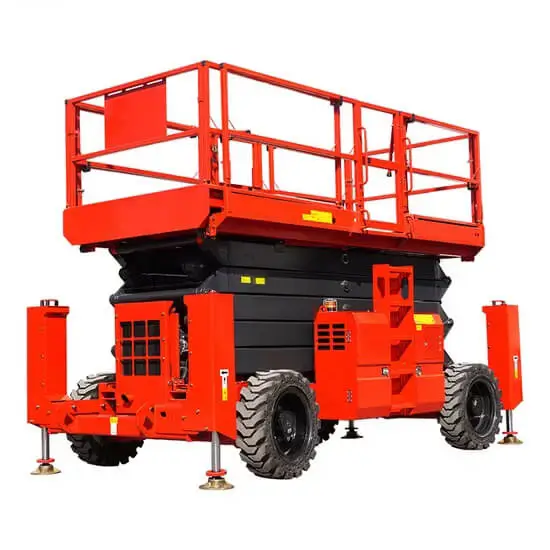

Diesel Rough Terrain Scissor Lifts

Diesel rough terrain scissor lifts are heavy-duty aerial work platforms engineered to operate on uneven and challenging outdoor terrains. Powered by robust diesel engines, they offer significant lifting capacity and stability. These lifts typically feature large, rugged tires, four-wheel drive, and sometimes outriggers to ensure safe operation on construction sites, agricultural areas, and other demanding environments. Off road scissor lift are ideal for tasks requiring significant reach and the ability to handle rough ground conditions, such as construction, maintenance, and installation work in outdoor settings.

Diesel rough terrain scissor lift / off road scissor lift / 4wd scissor lift:

Capacity: 365~1100kg  803~2430 lbs

Platform Height: 9.7~15.9m  31.8~52.2 ft

Certification:CE ISO

Power supply: diesel

Diesel Rough Terrain Scissor Lifts Advantages:

• Equipped with load cell high safety performance.

• Powerful diesel engine, 4-wheel drive, strong off-road performance.

• Automatic hydraulic one-key leveling legs strong stability adapt to a variety of complex and rugged road conditions.

• Equipped with double extension platform large load capacity expanding the scope of operation and improving work efficiency.

Diesel Rough Terrain Scissor Lifts Parameters：

Electric Rough Terrain Scissor Lifts

Electric rough terrain scissor lifts are aerial work platforms designed for use on uneven outdoor surfaces while being powered by electric batteries. They offer the advantage of quieter operation and zero emissions compared to their diesel counterparts, making them suitable for environments with noise restrictions or indoor/outdoor transitions. Offroad scissor lift typically feature robust tires, and sometimes include four-wheel drive and leveling jacks or outriggers to provide stability on rough terrain. While their battery life needs to be considered for extended outdoor use, they provide a versatile and environmentally conscious solution for tasks like construction, maintenance, and installation in various challenging environments.

• All terrain scissor lift / electric offroad scissor lift :
• Capacity: 365~1100kg  803~2430 lbs
• Platform Height: 9.7~15.9m  31.8~52.2 ft
• Certification:CE ISO
• Power supply: electric battery

Electric Rough Terrain Scissor Lifts Advantages:

• Equipped with load cell high safety performance.

• Equipped with a single extension platform large load expanding the scope of operation improve productivity.

• Automatic hydraulic one-touch leveling outriggers adapt to all kinds of harsh and complex working conditions.

• Large-capacity battery four-wheel drive and steering system has excellent off-road performance no noise and long range.

Electric rough terrain scissor lifts Parameters：

Key characteristics and features of rough terrain scissor lifts include:

Core components of Rough Terrain Scissor Lift:

• Powerful Engines: They are powered by electric battery, diesel or gasoline engines to provide the necessary power for traversing slopes and rough ground. Some electric models are also available for fume-free operation.
• Large, Rugged Tires: Equipped with heavy-duty, high-traction tires that provide better grip and stability on loose or uneven surfaces.
• Four-Wheel Drive (4WD): Many all terrain scissor lifts feature 4WD to improve traction and maneuverability in difficult conditions.
• Oscillating Axles: These allow the wheels to move independently, helping the lift maintain contact with the ground on uneven terrain.
• Outriggers/Stabilizers: Some Rough Terrain Scissor Lift models have outriggers that can be deployed to provide additional stability when the platform is raised, especially on inclines.
• High Lift Capacity: Designed to lift heavier loads of personnel and materials to significant heights. Lift capacities can range from 800 lbs to over 2,500 lbs depending on the model.
• Significant Platform Sizes: Offering ample workspace for workers and their tools. Platform lengths can extend significantly with slide-out extensions.
• Working Heights: Rough terrain scissor lifts offer a range of working heights, typically from 20 feet to over 70 feet.

Applications of Rough Terrain / off road scissor lift:

Rough terrain scissor lifts are commonly used in various outdoor applications, including:

• Construction: For tasks such as framing, installing siding, painting, and electrical work on uneven building sites.
• Maintenance: For accessing hard-to-reach areas for repairs, inspections, and cleaning in industrial or outdoor facilities.
• Agriculture: For orchard work, maintenance of farm buildings, and harvesting tasks.
• Landscaping: For tree trimming, installation of irrigation systems, and other elevated landscaping work.
• Mining and Quarrying: For maintenance and inspection of equipment and structures in challenging terrain.
• Event Setup: For installing and maintaining stages, lighting, and banners at outdoor events.

Specifications of Rough Terrain / All terrian Scissor Lift (examples – vary by model ):

• Maximum Working Height: Ranges from 20 ft to 70+ ft.
• Lift Capacity: Typically 800 lbs to 2,500+ lbs.
• Platform Size: Can vary significantly, with extendable platforms reaching over 20 ft in length on some models.
• Machine Width: Generally wider than slab scissor lifts for increased stability (e.g., 69 inches to 90+ inches).
• Power Source: Diesel, gasoline, or electric.
• Weight: Can range from 6,000 lbs to over 16,000 lbs.

Rough terrain scissor lifts provide a safe and efficient way to work at height in demanding outdoor environments where standard aerial lifts may not be suitable.
