The Outdoor Scissor Lift (also known as a exterior scissor lift) is a heavy-duty vertical lifting platform engineered for rugged outdoor environments. Utilizing a scissor-type mechanical structure, it delivers stable and efficient lifting of goods or personnel. Designed for extreme weather resistance, high load capacity, and all-weather operation, it is ideal for construction sites, ports, outdoor storage yards, power line maintenance, and agricultural operations—particularly in challenging terrains and harsh conditions such as rain, snow, heat, or sandstorms.
Rough Terrain Outdoor Scissor Lift
A rough terrain outdoor scissor lift is a robust aerial work platform specifically designed for operation on uneven and challenging outdoor surfaces. Typically powered by a diesel or electric engine, it features large, rugged tires and often four-wheel drive to provide enhanced traction and stability on construction sites, agricultural areas, or other rough ground conditions. These lifts offer significant lifting capacity and platform size, allowing personnel and equipment to safely access elevated work areas in demanding outdoor environments.
Rough Terrain Outdoor Scissor Lift/ off road scissor lift / 4wd scissor lift:
Capacity: 365~1100kg 803~2430 lbs
Platform Height: 9.7~15.9m 31.8~52.2 ft
Certification:CE ISO
Power supply: diesel / electric
Rough Terrain Outdoor Scissor Lift Parameters：
| Model | GTJZ10RT | GTJZ13RT | GTJZ16RT |
| Safe Working Load (kg) | 1150 | 680 | 680 |
| Extended Platform Safe Working Load (kg) | 230 | ||
| Maximum Working Height (m) | 12 | 15 | 18 |
| Maximum Platform Height [C] (m) | 10 | 13 | 16 |
| Overall Machine Length (legless/With legs) [A] (m) | 4.2 / 4.81 | ||
| Overall Machine Width [B] (m) | 2.28 | ||
| Overall Machine Height (Fence Not Folded) (m) | 2.81 | 3.03 | 3.25 |
| Overall Machine Height (Fence Folded) [D] (m) | 2.12 | 2.34 | 2.56 |
| Working Platform Size (length [F] x width [E]) (m) | 3.95 x 1.83 | ||
| Platform Extension Size (m) | 1.22 / 1.52 | ||
| Minimum Ground Clearance (m) | 0.23 | ||
| Wheelbase [G] (m) | 2.84 | ||
| Minimum Turning Radius (Inner Wheel) (m) | 2.78 | ||
| Minimum Turning Radius (Outer Wheel) (m) | 4.95 | ||
| Lifting Motor/Driving Motor | 35.5 / 2600 | ||
| Machine Running Speed (Folded State) (km/h) | 6.3 | ||
| Machine Running Speed (Lifting State) (km/h) | 1.1 | ||
| Solid Tire Specifications | 33×12-20 | ||
| Fuel Tank Volume (L) | 115 | ||
| Hydraulic Box Volume (L) | 170 | ||
| Maximum Climbing Ability | 26.57° (50%) | 26.57° (45%) | 21.8° (40%) |
| Machine Weight (kg) | 6850 | 7350 | 8850 |
| Type of Drive | 4×4×2 | ||
| Engine | Yangma 4TNV94L-B×PHZ | ||
| Folded Guardrail Dimensions (m) | 4.2*2.28*2.12 | 4.2*2.28*2.34 | 4.2*2.28*2.56 |

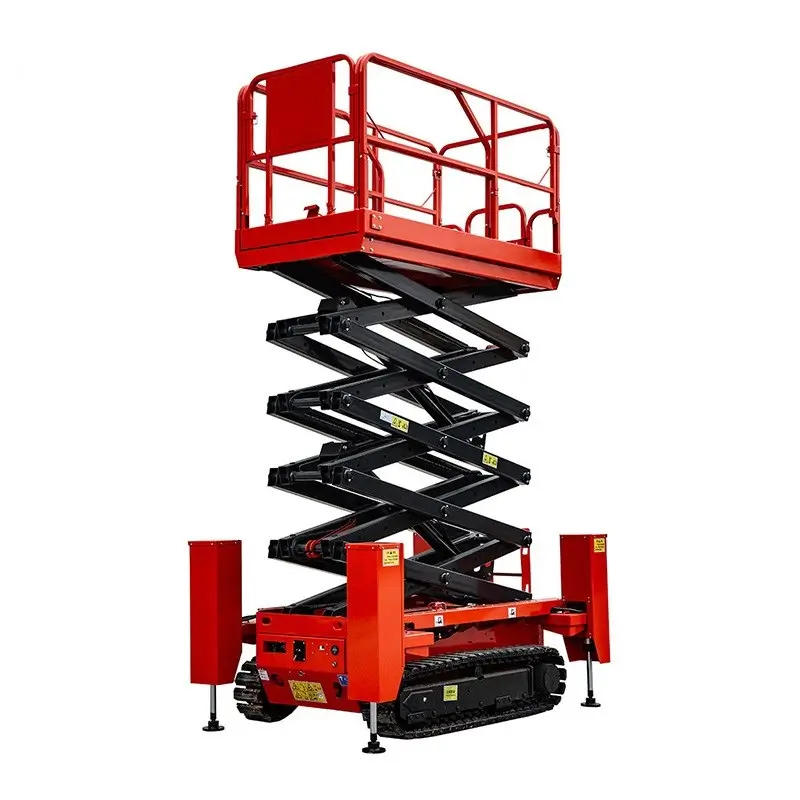

Tracked Outdoor Scissor Lift
A tracked outdoor scissor lift is an aerial work platform that utilizes tracks instead of wheels for mobility on outdoor terrain. This tracked system provides exceptional stability and the ability to navigate soft, uneven, or challenging ground conditions, including slopes and rough surfaces, where wheeled lifts might struggle. Often powered by diesel or electric engines, these lifts offer vertical lifting capabilities for tasks such as maintenance, construction, or landscaping in outdoor environments where stability and maneuverability on varied surfaces are crucial.
- Tracked exterior Scissor Lift :
- 6-14m working height
- 230kg/320kg/450kg/680kg load capacity
- 24V DC or 48V power source with long working cycles
- Zero inside turning radius
- Derivable and functional at full height
- Emergency stop at both platform and ground controls
- Proportional controls for drive functions
Tracked Outdoor Scissor Lift Parameters：
| Model | GPT0608 | GPT0810 | GPT1012 | GPT1214 | GPT1823RDE |
| S.W.L | 450Kg | 450kg | 320Kg | 320Kg | 680Kg |
| S.W.L On Extension | 113Kg | 113Kg | 113kg | 113Kg | 230Kg |
| Max. Occupants | 2 | 2 | 2 | 2 | 4 |
| Max. Working Height | 8m | 10m | 12m | 13.8m | 18m |
| Max. Platform Height | 6m | 8m | 10m | 11.8m | 16m |
| Overall Length(mm) | 2480 | 2480 | 2480 | 2480 | 4880 |
| Overall Width(mm) | 1210 | 1210 | 1210 | 1210 | 2280 |
| Overall Height(Rails Up)(mm) | 2220 | 2360 | 2480 | 2610 | 3270 |
| Overall Height(Rails Down)(mm) | 1670 | 1800 | 1935 | 2060 | 2520 |
| Platform Size(mm) | 2270X1120 | 3980*1825 | |||
| Platform Extension Size(mm) | 900 | 900 | 900 | 900 | 1150 |
| Ground Clearance(Stowed)(mm) | 100 | 100 | 100 | 100 | 300 |
| Ground Clearance(Raised)(mm) | 19 | 19 | 19 | 19 | 300 |
| Wheelbase(mm) | 1895 | 1895 | 1895 | 1895 | 2280 |
| Turning Radius(Inside) | 1.1m | 1.1m | 1.1m | 1.1m | 0m |
| Turning Radius(Outside) | 2.6m | 2.6m | 2.6m | 2.6m | 6.55m |
| Lifting Motor(kw) | 24V/3.3 | 24V/3.3 | 24V/3.3 | 24V/4.5 | 31V/6.5 |
| Travel Speed(Stowed)(km/h) | 3 | 3 | 3 | 3 | 5.1 |
| Travel Speed(Raised)(km/h) | 0.6 | 0.6 | 0.6 | 0.6 | 1.1 |
| Up/Down Speed(sec) | 29/35sec | 37/39sec | 66/60ec | 66/76sec | 55/70sec |
| Battery(Ah) | 4X6V/225 | 4X6V/240 | 4X6V/260 | 4X12V/300 | 4X12V/300 |
| Charger(A) | 24V/25 | 24V/25 | 24V/25 | 24V/25 | 77.8V/375 |
| Gradeability | 25% | 25% | 25% | 25% | 40% |
| Max. Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 2°/3° |
| Tyres(mm) | Φ381X127 | Φ381X127 | Φ381X127 | Φ381X127 | Φ835X290 |
| Overall Weight(KG) | 2080 | 2270 | 2520 | 2920 | 8380 |
Below is a detailed analysis of its working principles, structural components, technical features, applications, and advantage:
1. Key Features of exterior / Outdoor Scissor Lift
- All-Weather Durability
- Corrosion-resistant coatings (e.g., hot-dip galvanized) and against water, dust, and UV rays, operable in temperatures from -30°C to 50°C.
- High Load & Stability
- Rated load capacity: 230kg-1150kg; reinforced alloy steel scissor arms and wind-resistant locking mechanisms ensure stability in strong winds.
- Terrain Adaptability
- Optional off-road tires, tracked bases, or hydraulic leveling legs for mud, gravel, slopes, and uneven ground.
- Multi-Power Options
- Diesel engines, hybrid (diesel + electric), or high-capacity lithium batteries for prolonged operation in remote, power-scarce areas.
- Advanced Safety
- Anti-slip serrated platforms, emergency descent systems, tilt alarms, and lightning protection comply with ISO and CE standards.
2. Product Advantages of exterior / Outdoor Scissor Lift
- Enhanced Operational Efficiency
- Lifting speeds of 0.1–0.4 m/s, paired with fast-refueling or large battery capacities, minimize downtime.
- Low Maintenance Costs
- Sealed hydraulic systems and modular designs extend service life beyond 10 years, even in harsh conditions.
- Versatile Applications
- From steel structure assembly and port container handling to wind turbine repairs and agricultural equipment maintenance.
- User-Friendly Operation
- Waterproof control panels, wireless remotes, and night-operation lighting systems for flexible use in complex environments.
3. Structure & Core Components of exterior / Outdoor Scissor Lift
- Heavy-Duty Scissor Arms
- Multi-layer thickened steel arms with hot-dip galvanized surfaces, driven by multi-stage hydraulic cylinders or high-torque motors.
- Reinforced Platform
- Anti-slip steel or grating surfaces with foldable guardrails and impact buffers; some models include lifting hooks or tool racks.
- Power Unit
- Diesel: Turbocharged engines + high-pressure hydraulic pumps for robust performance.
- Hybrid: Diesel + lithium battery dual-mode operation, boosting runtime by 40% in eco-mode.
- Chassis & Mobility
- 4×4 off-road tires, rubber tracks, or hydraulic stabilizers for mud, snow, and slopes.
- Smart Safety Systems
- Tilt sensors, GPS tracking, remote diagnostics, and emergency backup power.
4. Working Principle of exterior / Outdoor Scissor Lift
The scissor lift for outdoor use operates via scissor-type leverage and multi-power actuation:
- Power Activation: Diesel engines or motors drive hydraulic/mechanical systems to generate thrust.
- Vertical Lifting: Scissor arms expand to raise the platform; controlled descent via hydraulic flow reversal or motor reversal.
- Terrain Adaptation: Automatic hydraulic leveling or track adjustments maintain platform stability on slopes/uneven ground.
- Safety Protocols: Wind locks engage during high winds; operations halt if tilt exceeds 5°.
5. Typical Applications of exterior / Outdoor Scissor Lift
- Construction: Steel beam installation, concrete pumping support.
- Port Logistics: Container loading/unloading, straddle carrier integration.
- Energy Sector: Wind turbine blade repairs, power tower maintenance.
- Agriculture: Orchard pruning, heavy farm machinery servicing.
Summary
Outdoor scissor lifts excel in extreme environmental adaptability, industrial-grade durability, and multi-functional performance, making them indispensable for demanding outdoor operations. With reinforced structures, intelligent safety systems, and flexible power options, these exterior / Outdoor Scissor Lift enhance productivity and safety in construction, energy, logistics, and agriculture—delivering reliable solutions for the toughest outdoor challenges.
