Stationary Scissor Lift

The Stationary Scissor Lift is a permanently installed industrial lifting device that utilizes a scissor-type mechanical structure for vertical movement. Designed for long-term stability and high load capacity, it is ideal for scenarios requiring frequent, high-intensity lifting operations, such as production line material handling, fixed loading/unloading points in warehouses, and assembly line workstation adjustments. Unlike mobile lifts, stationary models are anchored to foundations or steel structures, making them perfect for applications where mobility is unnecessary but long-term reliability is critical.

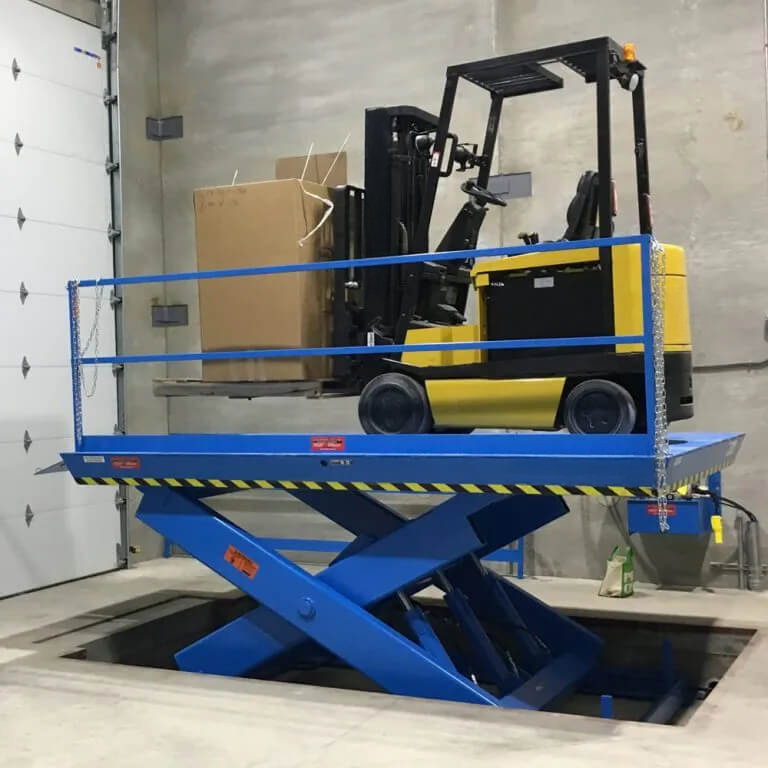

Stationary loading dock scissor lift

A loading dock stationary scissor lift is a permanently installed platform designed to vertically raise or lower goods between a loading dock and the bed of a truck or trailer. Fixed in place, it uses a scissor mechanism powered by hydraulics or electricity to bridge the height difference, facilitating the efficient and safe transfer of cargo. These Stationary Scissor Lifts are essential equipment in warehouses and distribution centers, streamlining the loading and unloading process.

Rated Loading Capacity: 500kg-40ton

Max. Lifting Height: 6m

Type: Hydraulic

Power supply: Three-phase electric power

Table size: customizable

Stationary loading dock scissor lift Parameters：

Stationary double scissor lifter

A stationary double scissor lifter is a permanently installed lifting platform that utilizes two sets of scissor mechanisms stacked on top of each other to achieve a greater vertical lifting height compared to a single scissor lift. Powered by hydraulics or electricity, it is fixed in place and designed to lift goods or personnel to a specific elevated position within a facility. This type of lift is used in applications requiring significant vertical travel, such as multi-level assembly lines or accessing high storage areas. Its stationary nature ensures stability for heavy lifting tasks.

• Stationary double scissor lifter
• Rated Loading Capacity: 500kg-100ton
• Max. Lifting Height: 6m
• Type: Electric Hydraulic
• Power supply: 3-phase 380V/220V
• Table size: customizable

Stationary double scissor lifter Parameters：

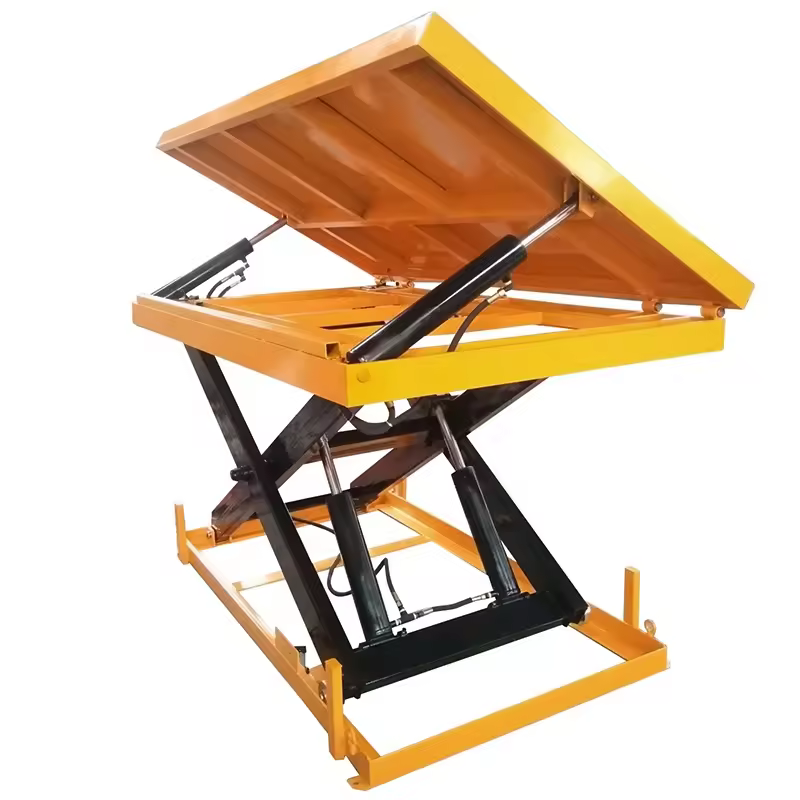

Stationary Scissor Lift With Tilt Platform

A stationary scissor lift with a tilt platform is a permanently installed lifting device featuring a scissor mechanism for vertical movement and a platform that can tilt to a specific angle. Powered by hydraulics or electricity, it is fixed in place and used to raise and position goods or personnel, with the added ability to incline the platform for easier loading, unloading, or manipulation of items. This type of lift is useful in manufacturing, assembly, or material handling processes within facilities, where controlled tilting of the load is required at an elevated height.

• Type of overturned fixed lifting platform：
• Rated load: 500kg- 5 ton
• Maximum lifting height: 8m
• Tilt/cartwheel Angle: 45 degrees
• Power supply: three-phase alternating current

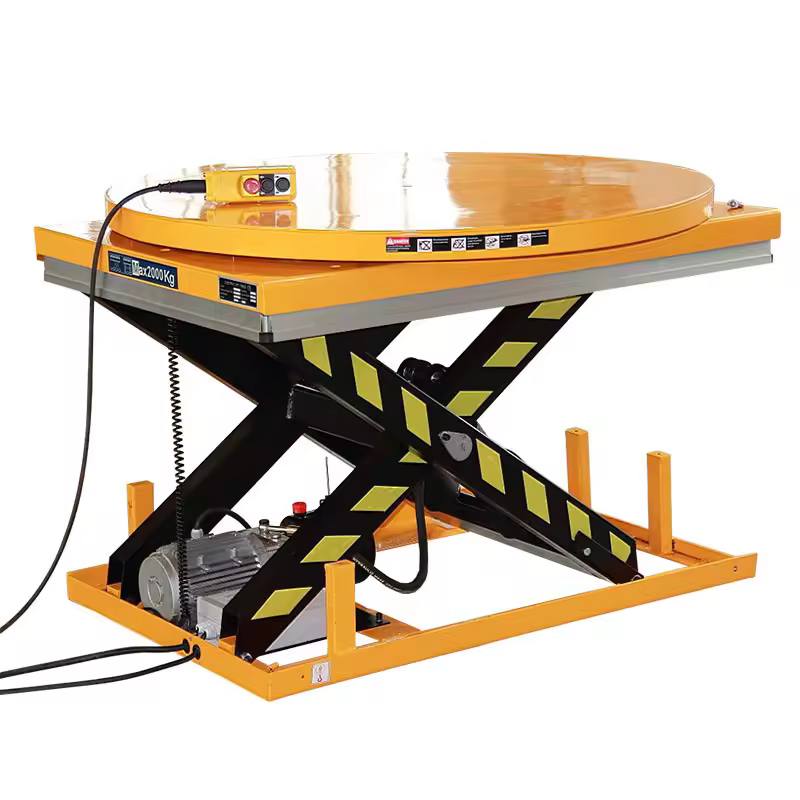

Rotary Stationary scissor lift

A rotary stationary scissor lift is a permanently installed lifting device featuring a scissor mechanism for vertical movement and a platform that can rotate horizontally. Powered by hydraulics or electricity, it is fixed in place and designed to lift and position goods or personnel, providing the added benefit of a rotating platform for improved access or orientation at an elevated height within a facility in Minoh, Osaka, Japan. This type of lift is useful in manufacturing, assembly, or material handling processes where the ability to turn the load or operator while raised enhances efficiency and precision in a fixed location.

• Rotary Stationary scissor lift：
• Rated load: 500kg- 40 ton
• Maximum lifting height: 8m
• Power supply: three-phase alternating current

Key Features and Benefits:

• Combined Lifting and Revolving Functionality: This allows for incredibly dynamic presentations. You can elevate performers or products while simultaneously rotating them for a full 360-degree view. This adds a layer of visual interest and can be used for dramatic reveals or showcasing multiple angles.
• High Quality Construction: Essential for safety, reliability, and smooth operation, especially with potentially heavy loads like cars or numerous performers. This often involves robust materials, precision engineering, and durable motors and control systems.
• Remote Control Operation: Provides flexibility and ease of use for stage technicians to manage the platform’s movements precisely and safely during a performance or display.
• Versatility in Applications: It’s ideal for:
  • Concert Stage Events: Creating dramatic entrances and exits for performers, highlighting soloists, facilitating quick scene changes, and adding visual dynamism to the show.
  • Car Displays: Allowing audiences to view vehicles from all angles without moving, making it perfect for auto shows, showrooms, and product launches.
• Customization Options: High-quality platforms often come with options for customization in terms of size, shape (though revolving stages are typically circular), lifting capacity, rotation speed, and integration with lighting and other stage systems.
• Safety Features: Robust safety mechanisms are crucial, including emergency stop buttons, overload protection, and smooth start/stop controls to prevent sudden jolts.

The following is a comprehensive analysis from the aspects of structural composition, working principle, core characteristics, and application scenarios:

1. Key Features Of Stationary Scissor Lift

1. Fixed Installation
   • Permanently secured via bolts or welding to floors/steel structures, eliminating wear from moving parts and ensuring durability.
2. Exceptional Load Capacity
   • Broad load range (1–20 tons), suitable for heavy machinery, production line components, or dense material transport.
3. Compact Design
   • Low folded height (200–500 mm) saves space; vertical lifting requires no lateral tracks or additional supports.
4. Customizable Configurations
   • Tailored platform sizes, lifting heights (2–15 m), and power types (hydraulic/electric) to meet specific needs.
5. Multi-Layer Safety
   • Dual hydraulic locks, overload protection, emergency stop buttons, anti-fall guardrails, and tilt sensors comply with ISO, CE, and other global standards.

2. Product Advantages Of Stationary Scissor Lift

1. Low Long-Term Costs
   • Fixed structure reduces wear; sealed hydraulic systems require only periodic lubrication and inspections, extending lifespan beyond 10 years.
2. Seamless Integration
   • Compatible with production lines, conveyors, or automated systems; supports PLC control or IoT remote monitoring for enhanced efficiency.
3. Harsh Environment Resilience
   • Anti-corrosion coatings and high/low-temperature hydraulic fluids (-30°C to 80°C) suit workshops, cold storage, and chemical plants.
4. Quiet & Eco-Friendly
   • Electric models operate below 60 dB; hydraulic units feature energy-efficient pumps, meeting environmental regulations.

3. Structure & Core Components Of Stationary Scissor Lift

1. Fixed Base
   • Heavy-duty steel base with bolt/weld interfaces for secure anchoring.
2. Scissor Arm System
   • Multi-layer high-strength alloy arms driven by hydraulic cylinders or electric actuators for precise vertical movement.
3. Load Platform
   • Anti-slip steel or grating surface with removable guardrails; optional roller guides or alignment slots.
4. Power Unit
   • Hydraulic Drive: High-pressure pump + multi-stage cylinders for heavy loads; Electric Drive: Servo motor + ball screw for ±1 mm accuracy.
5. Smart Control System
   • Touchscreen interface for height presets, fault diagnostics, and operation logs; optional safety light curtains or facial recognition activation.

4. Working Principle Of Stationary Scissor Lift

The Stationary Scissor Lift operates via a scissor-type lever principle combined with hydraulic/electric power:

1. Power Activation: A motor or hydraulic pump converts energy into linear thrust at the scissor arms’ pivot points.
2. Vertical Movement: Scissor arms expand/contract to lift/lower the platform strictly vertically without horizontal deviation.
3. Precision Positioning: Encoders or displacement sensors provide real-time height feedback, enabling millimeter-level accuracy via PLC control.
4. Safety Protocols: Hydraulic pressure relief during overloads; manual release valves ensure safe descent during power outages.

5. Typical Applications Of Stationary Scissor Lift

• Automotive Manufacturing: Welding station adjustments, engine assembly line positioning.
• Food Processing: Inter-floor material transfer, heavy equipment maintenance.
• Warehousing: Fixed loading docks, high-altitude shelf systems.
• Aerospace: Large component assembly, precision instrument handling.

Summary

The Stationary Scissor Lift excels in fixed installation, heavy-load capacity, and extended lifespan, serving as a cornerstone in industrial vertical transport. With modular design and smart controls, it meets high-intensity demands while integrating seamlessly into automated workflows, reducing labor costs and operational risks. An indispensable solution for manufacturing, logistics, and heavy industries.
