40 ft / 12m Scissor Lift

The 40 ft / 12m Scissor Lift (also referred to as a 40-foot scissor lift, 40′ scissor lift, or scissor lift 40 ft) is a heavy-duty aerial platform engineered for high-altitude industrial and construction tasks. With a platform height of 12 meters (40 feet), this 40ft scissor lift combines robust lifting capacity, terrain adaptability, and advanced safety systems to meet the demands of large-scale projects.

Self-propelled 40 ft / 12m Scissor Lift

A self-propelled 40 ft / 12m scissor lift is a robust aerial work platform with a maximum platform height of 40 feet (approximately 12 meters), offering a working height of around 46 feet (about 14 meters). Equipped with its own drive system, it allows operators to control both the vertical movement and the horizontal movement of the lift from the platform, enhancing efficiency on larger work sites. Typically powered by diesel or electricity, these lifts are used for a variety of outdoor and indoor tasks, including construction, maintenance, and installation, requiring significant reach and maneuverability.

40 ft / 12m scissor lift specifications:

Rated Loading Capacity: 230KG 320kg 480kg

Max. Lifting Height: 12 meter (40 feet) scissor lift

Lift Drive / Actuation: Hydraulic electric

Platform: Anti-skid Checkered Plate

Self-propelled 40 ft / 12m scissor lift Parameters：

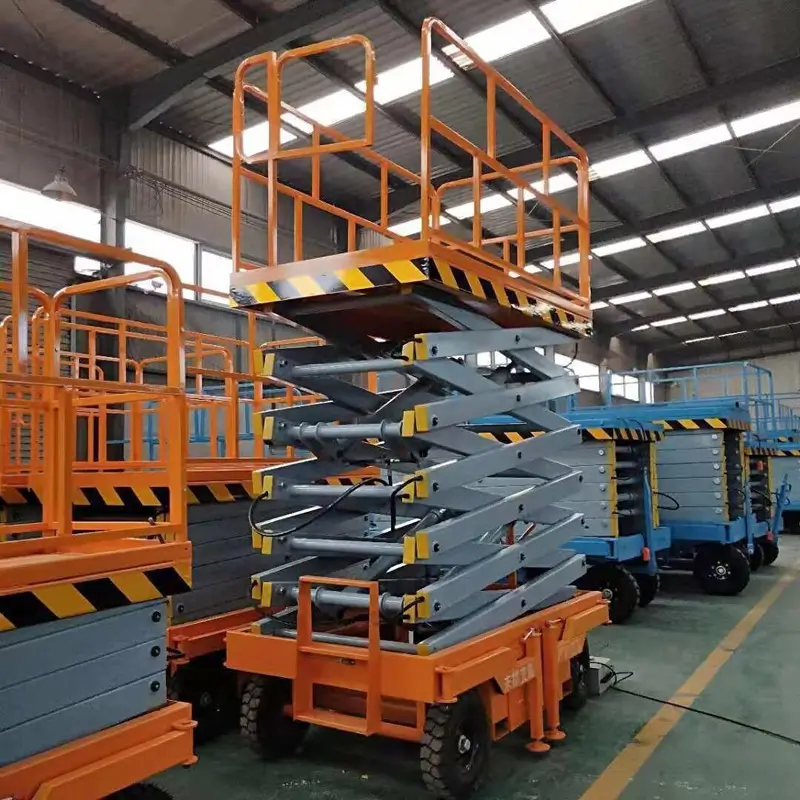

Towable 40 ft / 12m Scissor Lift

A towable 40 ft / 12m scissor lift is a portable aerial work platform with a maximum platform height of 40 feet (approximately 12 meters), providing a working height of around 46 feet (about 14 meters). Designed to be towed behind a vehicle for easy transportation between job sites, it offers significant vertical reach. Once positioned and stabilized with outriggers, the scissor mechanism lifts the work platform for tasks such as construction, maintenance, or painting at height. Its towable nature provides versatility for accessing different elevated locations.

• Towable 40 ft / 12m Scissor Lift
• Rated load: 300kg 500kg 1000kg 2000kg
• Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
• Walking mode: hand pull or assist walking
• Power supply: Ac, battery, diesel, manual
• Type: Electric Hydraulic

Towable 40 ft / 12m Scissor Lift Parameters：

All terrain 40 ft / 12m Scissor Lift

An all-terrain 40 ft / 12m scissor lift is a robust aerial work platform engineered to operate on rough and uneven outdoor surfaces. With a maximum platform height of 40 feet (approximately 12 meters), providing a working height of around 46 feet (about 14 meters), it typically features large, heavy-duty tires, four-wheel drive, and often leveling jacks or outriggers for stability. Powered by diesel or sometimes electric engines, these lifts offer significant reach and the ability to navigate challenging terrain on construction sites, agricultural areas, and other demanding outdoor environments.

• All terrain 40 ft / 12m Scissor Lift :
• Capacity: 365~1100kg  803~2430 lbs
• Platform Height: 9.7~15.9m  31.8~52.2 ft
• Certification:CE ISO
• Power supply: Diesel / electric battery

All terrain 40 ft / 12m Scissor Lift Parameters：

Below is a detailed analysis of 2 Man Scissor Lift features, advantage and applications:

Key Features of 40 ft / 12m Scissor Lift

High Load Capacity & Extended Reach

• Rated load capacity: 230–1,000 kg, supporting multiple operators and heavy tools/equipment on the 40 ft scissor lift.
• Multi-stage scissor arms (4–6 stages) achieve 12-meter (40-foot) heights, with optional extensions up to 14 meters for expanded coverage on the 40′ scissor lift.

All-Terrain Mobility

• The 40ft scissor lift model features rugged off-road tires or omnidirectional drive systems, handling slopes up to 25% on rough terrain, muddy sites, or indoor floors.
• Folded width as narrow as 1.2 meters ensures easy transport for the scissor lift 40 ft through standard access points.

Intelligent Power Systems

• Electric Hydraulic Drive: The 40-foot scissor lift is powered by 48V batteries with 8–12 hours runtime, fast charging (2-hour full charge), and noise levels below 65 dB for eco-compliance.
• Dual Hydraulic Cylinder Redundancy: Ensures smooth lifting at adjustable speeds (0.2–0.5 m/s) for precise positioning on the 40 scissor lift.

Multi-Layered Safety

• Tilt Protection: Auto-locks the 40′ scissor lift if ground slope exceeds 3°.
• Overload & Fall Prevention: Hydraulic safety valves and dual braking (electromagnetic + mechanical) prevent accidental drops on the scissor lift 40 ft.
• Platform Safety: Anti-slip grating floors and removable guardrails (1.2 meters) standard on the 40ft scissor lift.

Modular Customization

• Optional extensions for the 40 ft scissor lift include expanded platforms, insulated decks, or explosion-proof configurations.
• Wireless remote control enhances flexibility for the 40-foot scissor lift in complex settings.

Core Advantages of 40 ft / 12m Scissor Lift

• High Efficiency: The 40 scissor lift reduces repositioning with rapid lifting and heavy load capacity.
• All-Weather Durability: The scissor lift 40 ft boasts IP67-rated protection for extreme temperatures .
• Low Maintenance: Corrosion-resistant components ensure the 40′ scissor lift requires only routine lubrication and battery checks.
• Smart Monitoring: Built-in BMS optimizes performance for the 40ft scissor lift.

Structure & Working Principle

1. Mechanical Structure

• Scissor Arms: High-strength alloy steel arms on the 40 ft scissor lift ensure height-stability balance.
• Work Platform: Standard size: 2.4m × 1.2m (extendable to 3m × 1.5m) for the 40-foot scissor lift.
• Power System:
  • Electric Models: The scissor lift 40 ft integrates batteries.
  • Dual-Power Models: Low-noise diesel engines power the 40 scissor lift off-grid.
• Chassis: 4-wheel drive stabilizes the 40′ scissor lift on uneven terrain.

2. Operating Principle

• Hydraulic Drive Process:
  1. Motor/diesel engine powers the 40ft scissor lift’s hydraulic pump.
  2. Cylinders extend arms via proportional flow control valves.
  3. Sensors ensure safe operation of the scissor lift 40 ft.
• Safety Mechanisms:
  • Emergency Descent: Manual valves lower the 40-foot scissor lift during power loss.
  • Dual Braking: Electromagnetic and mechanical systems secure the 40 scissor lift.

Typical Applications of 40 ft / 12m Scissor Lift

• Construction: High-rise exterior painting using the 40′ scissor lift.
• Industrial Maintenance: Pipeline repairs in refineries with the 40ft scissor lift.
• Warehousing: Accessing 10m+ shelving via the scissor lift 40 ft.
• Public Infrastructure: Bridge inspections performed via the 40-foot scissor lift.

Conclusion

The 40 ft scissor lift (or 40-foot scissor lift) combines rugged engineering and advanced safety for high-altitude industrial tasks. Whether referred to as the 40′ scissor lift, 40 scissor lift, or scissor lift 40 ft, this equipment delivers unmatched adaptability and efficiency for large-scale projects. Its modular design ensures the 40ft scissor lift remains a sustainable, future-ready solution for modern industries.
