32 ft / 10m Scissor Lift

The 32 ft Scissor Lift (also known as the 32-foot Scissor Lift, 32′ Scissor Lift, or 32 Scissor Lift) is a high-performance aerial platform designed for elevated tasks, covering a working height range of 9.5–11 meters (31–36 feet) with a rated load capacity of 600–1,200 kg. Ideal for construction facades, industrial installations, and high-level warehouse maintenance, the 32 ft rough terrain scissor lift excels in rugged environments like mud, gravel, or uneven surfaces, combining multi-stage scissor mechanics, intelligent controls, and all-terrain adaptability.

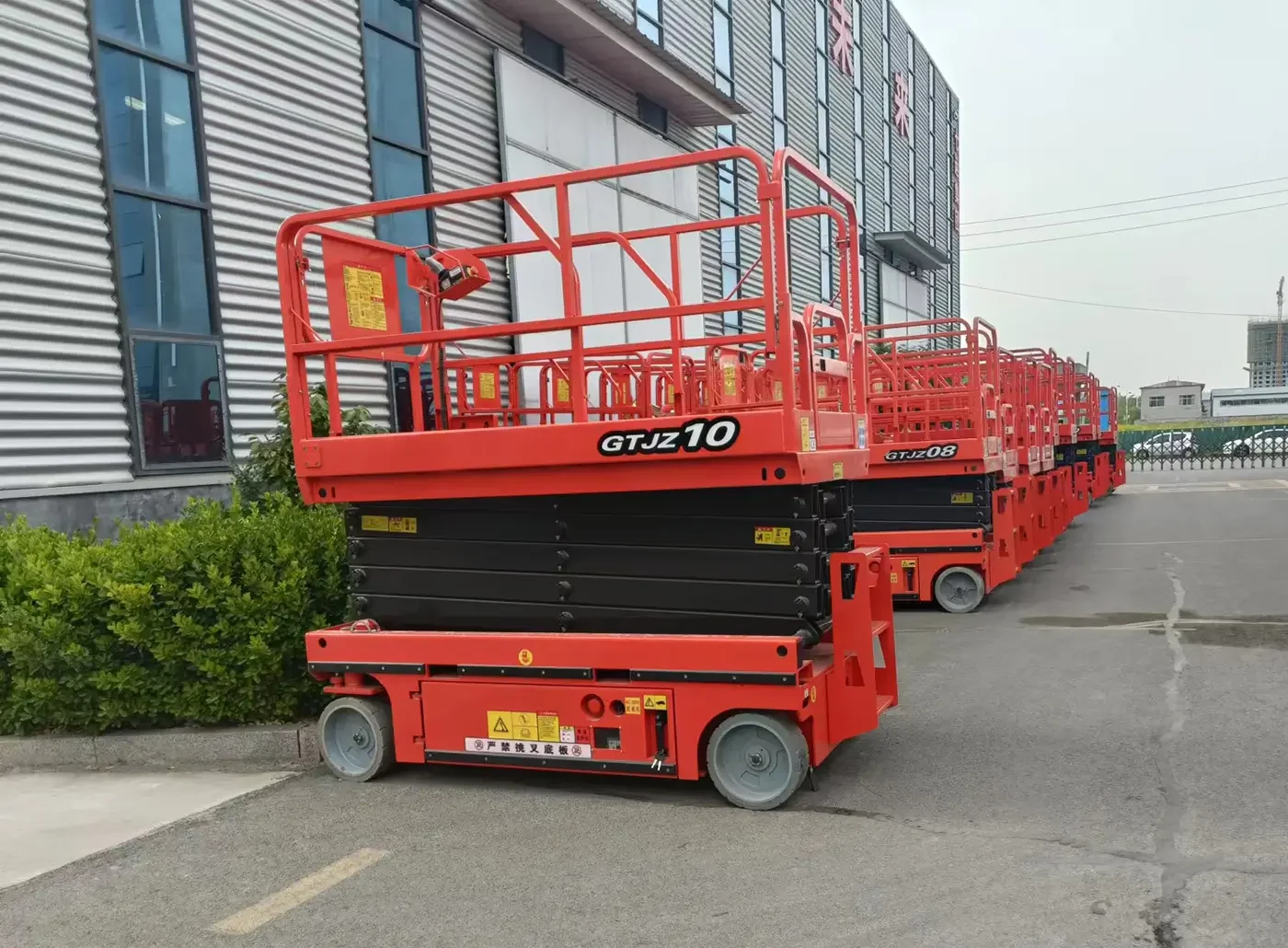

Self-propelled 32 ft / 10m Scissor Lift

A self-propelled 32 ft / 10m scissor lift is a mobile aerial work platform with a maximum platform height of 32 feet (approximately 10 meters), offering a working height of around 38 feet (about 11.6 meters). Equipped with its own drive system, it allows operators to control both the vertical movement and the horizontal movement of the lift from the platform, enhancing efficiency on various job sites.

Self-propelled 32 ft / 10m Scissor Lift:

Rated Loading Capacity: 320kg 480kg

Max. Lifting Height: 32 foot (10 meter)

Lift Drive / Actuation:Hydraulic electric

Platform:Anti-skid Checkered Plate

Self-propelled 32 ft / 10m Scissor Lift Parameters：

Models	GTJZ1012
Dimensions
Platform height max.	33 ft (10 m)
Working height max.	39 ft (12 m)
Platform extended	3 ft (0.9 m)
Length – stower	7 ft 8 in (2.39 m)
Width – stower	3 ft 8 in (1.15 m)
Height – folding guardrails	8 ft 1 in (2.48 m)
Height – rails folded	6 ft 1 in (1.86 m)
Height – fixed rails	8 ft 1 in (2.48 m)
Wheelbase	6 ft (1.85 m)
Ground clearance	3 in (0.1 m)
Platform size (L*W*H)	7 ft 4 in*3 ft 8 in*3 ft 6 in (2.25 m*1.15 m*1.1 m)
Productivity
Max. platform occupancy	2 (indoor) 1 (outdoor)
Lift capacity	705 lbs (320 kg)
Lift capacity – extension deck	265 lbs (120 kg)
Drive speed – stowed	0～2.0 mph (0~3.2 km/h)
Drive speed – raised	0～0.5 mph (0~0.8 km/h)
Gradeability	25%
Turning radius – inside	0 ft (0 m)
Turning radius – outside	7 ft 7 in (2.35 m)
Raise / Lower speed	55 /42 s
Controls	Proportional
Drives	Dual front wheel
Brakes	Dual rear wheel
Tire size (solid non-marking)	15 in * 5 in (380 mm * 125 mm)
Power
Power source	24V DC (4*6V, 225Ah batteries)
Hydraulic system capacity	4.76 gal (18 L)
Power	3 KW
Weight
Indoor	5247 lbs (2380 kg)
Indoor & outdoor general	5666 lbs (2570 kg)
Standards Compliance	CE/ ISO/ ADR/ ARAMCO

Self-propelled 32 ft / 10m Scissor Lift technical features：

Self-propelled 32 ft / 10m Scissor Lift advantage：

• Safety Certification Complies with EU standard EN280 and has obtained CE certification.
• Maneuverable at Height The Self-propelled 32 ft / 10m Scissor Lift features an automatic walking function, enabling fast and slow movement under different working conditions. A single operator can control lifting, forward and backward movement, and steering while working at height. This significantly improves work efficiency compared to traditional hydraulic platforms, reducing the number of operators and labor intensity. It is particularly suitable for continuous high-altitude operations in large areas such as airport terminals, stations, docks, shopping malls, stadiums, residential properties, and factory workshops.
• Safety Protection The machine is equipped with a level alarm. When the entire vehicle tilts more than 3 degrees in any direction, the machine automatically enters a protection system, allowing only downward movement until a safe state is reached, after which normal operation can resume. The Self-propelled 32 ft / 10m Scissor Lift has safety plates installed at the bottom of the chassis. Once the platform is raised, the safety plates on both sides open and are in working condition, reducing the distance from the ground to prevent tipping accidents caused by uneven ground during high-altitude travel. The Self-propelled 32 ft / 10m Scissor Lift is also equipped with a hose burst protection system at the cylinders.
• Stepless Speed Change The Self-propelled 32 ft / 10m Scissor Lift requires only one operator. All movements are controlled by the operating handle on the platform, and the motor features stepless speed change. This effectively extends the service life of the battery and motor, as the motor only consumes energy when working.
• Large Angle Steering System The Self-propelled 32 ft / 10m Scissor Lift is designed with a large angle steering system, giving the machine excellent flexibility.
• Disc Brake System The Self-propelled 32 ft / 10m Scissor Lift utilizes a hydraulic disc brake system. When the machine is stationary, the wheels are always braked and can reliably brake on a 6-degree slope.
• Intelligent Charging System The platform is equipped with a fully automatic charger that can automatically complete the entire charging process and stop charging automatically when the battery is full.
• Extendable Platform The working platform of the Self-propelled 32 ft / 10m Scissor Lift can be extended, expanding the working range and meeting the special needs of some users.
• Overload Protection Features an overload protection function, providing mandatory protection for personnel unfamiliar with the equipment.
• Self-Diagnosis Function Equipped with a self-diagnosis function, allowing customers to quickly understand the equipment’s operational status and better maintain it.
• Green and Environmentally Friendly As the machine uses DC battery power, it is safe and quiet for indoor or outdoor work.
• Intelligent Walking System with Self-Judgment Function The walking drive system consists of dual control and dual motors. During travel, by detecting the steering angle, the controller causes the motors to output different speeds to achieve the differential speed function between the wheels during steering. At the same time, since each motor is controlled by a separate controller, the tires will not slip when going up or down slopes with suspended wheels.
• Emergency Device The Self-propelled 32 ft / 10m Scissor Lift is equipped with an emergency lowering system.

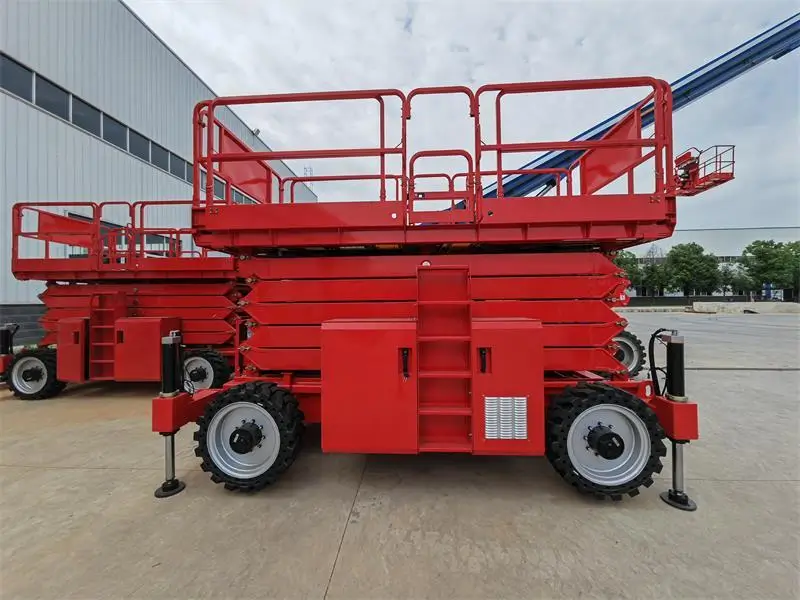

All terrain 32 ft / 10m Scissor Lift

An all-terrain 32 ft / 10m scissor lift is a robust aerial work platform engineered to operate on rough and uneven outdoor surfaces. With a maximum platform height of 32 feet (approximately 10 meters), providing a working height of around 38 feet (about 11.6 meters), it typically features large, heavy-duty tires and often four-wheel drive for enhanced traction and stability on construction sites, agricultural areas, or other challenging ground conditions. Powered by diesel or sometimes electric engines, it allows personnel to safely access elevated work areas in demanding outdoor environments.

• All terrain 32 ft / 10m scissor lift / off road scissor lift / 4wd scissor lift:
• Capacity: 365~1100kg  803~2430 lbs
• Platform Height: 32 ft / 10m
• Certification:CE ISO
• Power supply: diesel / electric

All terrain 32 ft / 10m Scissor Lift Parameters：

All terrain 32 ft / 10m Scissor Lift Feature：

1. Powerful Traction: The 4-wheel drive system delivers exceptional climbing ability and offers both high and low speed options for varied terrain, meeting 32′ scissor lift specs for off-road performance (30% slope climbing)..
2. Simplified Engine Maintenance: The diesel engine is mounted on a convenient slide-out tray, making servicing and upkeep straightforward.
3. Enhanced Stability on Uneven Surfaces: The active oscillation axle ensures all four wheels maintain contact with irregular ground, preserving consistent driving force.
4. Expanded Working Area: Featuring a double-sided cylinder powered extendable platform, the maximum workspace can reach an impressive 6.65m x 1.83m .
5. Leveling Capability: Hydraulic outriggers provide a reliable means to level the machine when operating on uneven ground, ensuring stability.

Typical Applications of 32 ft / 10m Scissor Lift

• Skyscraper Construction: Facade installation on 200m+ buildings using the 32 foot scissor lift.
• Energy Sector: Wind turbine maintenance with the 10m scissor lift.
• Smart Warehousing: 20-meter shelving access compliant with 32′ scissor lift specs.
• Megaprojects: Coastal bridge painting requiring the 32 ft rough terrain scissor lift.

Conclusion

The 32 ft Scissor Lift (or 32′ Scissor Lift) redefines industrial aerial work with its stability, intelligence, and rugged adaptability. Whether termed the 32 scissor lift, 32-foot scissor lift, or 32 ft rough terrain scissor lift, it maximizes efficiency and safety for construction, energy, and logistics sectors. Its modular design, durability, and cutting-edge technology make it indispensable for modern high-altitude challenges.

Our service:

Here are the advantages of choosing our 32 ft Scissor Lift:

1. Customized Design: We can design the hydraulic scissor man lift precisely to your individual requirements.
2. Expert Recommendation: Based on your specific needs, we will recommend the most suitable hydraulic scissor man lift for your application.
3. Global Logistics Support: We can efficiently arrange shipment from our port to your designated destination port.
4. Operational Guidance: A demonstration video can be provided to you upon request.
5. User-Friendly Documentation: A comprehensive English manual for machine installation, operation, and maintenance is included.
6. Comprehensive Warranty: Enjoy a 1-year warranty covering the entire machine against non-human-caused faults.
7. Complimentary Parts Replacement: During the warranty period, we will provide free replacement parts for any non-human-related malfunctions.
8. Round-the-Clock Technical Assistance: Our technical support team is available 24 hours a day via email, telephone, or other online communication channels.
9. Prompt Response: We are committed to responding to your inquiries within 2 hours, even on weekends and holidays.
