Heavy Duty Scissor Lift

A Heavy Duty Scissor Lift is a vertically elevating system designed for industrial environments, utilizing a scissor-type mechanical structure to achieve stable and efficient lifting of goods or personnel. Permanently installed in specific work areas, it features high load-bearing capacity, long-term durability, and exceptional safety. Widely used in manufacturing, warehousing, automotive repair, and heavy equipment assembly, it is ideal for scenarios requiring frequent, high-capacity lifting operations.

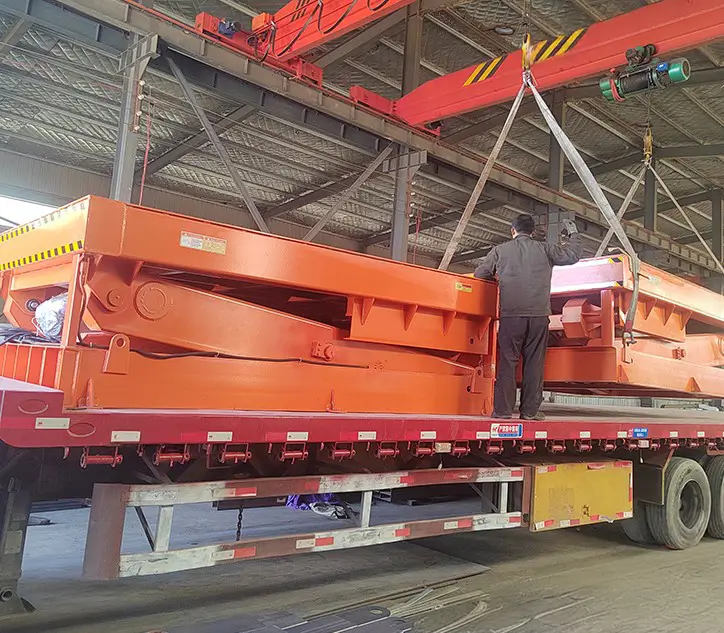

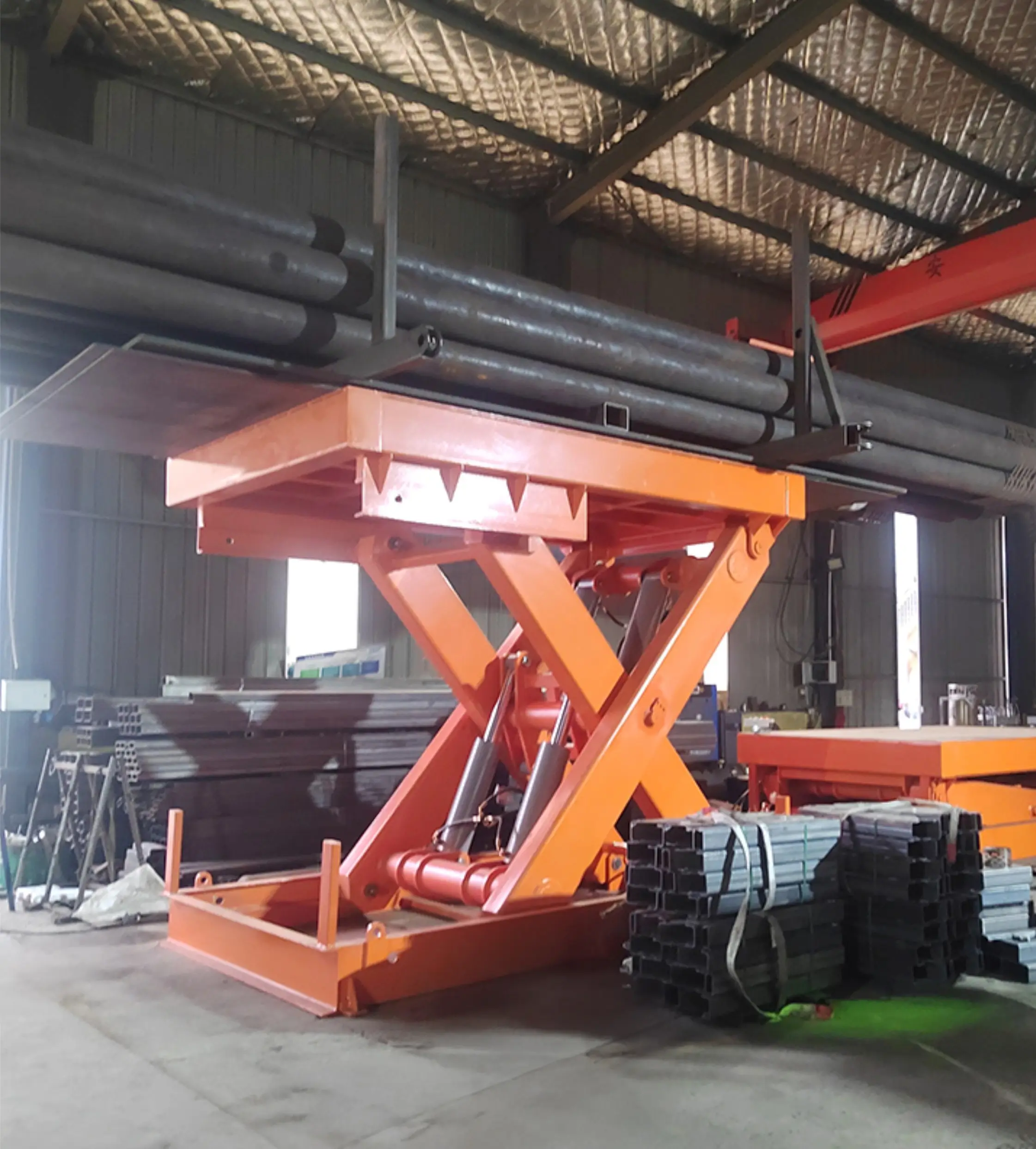

Custom Heavy Duty Scissor Lift

A custom heavy-duty scissor lift is a lifting table/platform specifically engineered and manufactured to meet unique and demanding requirements that standard models cannot fulfill. These lifts are built with robust materials and powerful hydraulic or electric systems to handle exceptionally heavy loads, platform sizes, or specific operational needs such as high lift heights, tilting or rotating platforms, integration with existing machinery, or operation in specialized environments. Tailored to the exact specifications of the application, they provide a safe, stable, and efficient solution for complex material handling or personnel lifting challenges in industrial, manufacturing, or construction settings.

Rated Loading Capacity: 500kg-100ton

Max. Lifting Height: 6m

Type: Electric Hydraulic

Power supply: 3-phase 380V/220V

Table size: customizable

Certification: ISO9001:2008 CE Certificate

Core Structure & Working Principle of Heavy Duty Scissor Lift

1. Main Structure
   • Scissor Arm Assembly: Constructed with high-strength alloy steel in a multi-layer cross-arm design, driven hydraulically or electrically to extend and retract, forming a stable lifting support.
   • Platform Base: A welded steel frame with an anti-slip work platform, supporting loads of up to several tons for forklift loading or heavy equipment placement.
   • Drive System: Hydraulic (high-pressure cylinder-driven) or electric (motor + gear-rack), delivering smooth power output; some models feature dual redundant drive systems.
   • Safety Components: Emergency brake valves, overload protection sensors, mechanical fall arrest locks, platform guardrails, and safety interlock devices ensure reliability in extreme conditions.
2. Working Principle
   The Heavy Duty Scissor Lift operates by extending the scissor arms via a hydraulic pump or electric motor. Hydraulic cylinders adjust the angle of the cross arms to raise the platform vertically. Lowering is achieved by slowly releasing hydraulic fluid through control valves or reversing motor operation, enabling precise height adjustment. A closed-loop control system monitors load and position in real time, automatically balancing pressure to prevent uneven loading risks.

Product Features of Heavy Duty Scissor Lift

1. Exceptional Load Capacity
   Optimized for heavy-duty tasks, standard models support 1–100 tons, with custom Heavy Duty Scissor Lift options for higher capacities, accommodating large machinery, bulk cargo, or multi-person operations.
2. Stability & Durability
   Full steel construction with anti-corrosion treatment and stress reinforcement ensures resilience under high-frequency, continuous operation. The stationary design eliminates instability from mobile units, ideal for precision assembly.
3. Adaptability
   • Customizable platform dimensions (length: 3–10 meters, width: 1–3 meters), with optional rotating platforms, tilt functions, or extension modules.
   • Weather-resistant designs available for extreme temperatures, dust, or humidity.
4. Smart Control
   • Human-Machine Interface (HMI) with preset height, self-diagnostics, and energy monitoring.
   • Optional remote control or integration with automated production systems for streamlined workflows.

Key Advantages of Heavy Duty Scissor Lift

1. Enhanced Safety & Efficiency
   Unlike traditional hoisting equipment, the scissor mechanism eliminates suspension risks, while platform stability reduces cargo tipping. Rapid setup improves operational continuity.
2. Lifecycle Cost Optimization
   Modular design simplifies maintenance, with quick replacement of critical components (e.g., hydraulic seals, bearings). Energy-efficient drives reduce long-term operational costs.
3. Maximized Space Utilization
   Permanent installation eliminates the need for mobility corridors. Recessed foundation designs save floor space, ideal for compact facilities.
4. Eco-Compliance
   Low-noise operation (<65 dB) meets industrial standards. Hydraulic models can use biodegradable oil to minimize environmental impact.

Typical Applications of Heavy Duty Scissor Lift

• Manufacturing: Heavy machinery assembly, production line material lifting, large mold replacement.
• Warehousing: High-altitude shelf access, container loading/unloading.
• Energy Sector: Wind turbine component maintenance, transformer installation.
• Specialized Industries: Aerospace part positioning, ship cabin equipment debugging.

What about the quality of the Heavy-duty scissor lift?

Our Heavy duty scissor lifts are CE approved, and we adhere to a stringent five-step inspection process before shipment to ensure superior quality:

• Raw materials are inspected in strict accordance with ISO9001 standards.
• Thorough inspections are conducted throughout the entire production process.
• A load limit test is performed upon final assembly.
• 100% of products undergo meticulous inspection before they are shipped.
• We also welcome inspection by the buyer, should it be desired.

Conclusion
The Stationary Heavy Duty Scissor Lift integrates engineering mechanics and industrial design, offering a benchmark solution for high-load vertical transportation through rigid structures, intelligent controls, and redundant safety features. Its balance of efficiency, safety, and cost-effectiveness empowers enterprises to achieve production line upgrades and long-term value.
