10 ft / 3m Scissor Lift

The 10 ft / 3m Scissor Lift is a compact aerial platform designed for low-to-medium height operations, covering a vertical range of 2.5–3.5 meters (8.2–11.5 feet). Utilizing a scissor mechanism driven by hydraulic or electric systems, it delivers safe and efficient elevated access in confined spaces or indoor environments. Ideal for tasks requiring frequent mobility and moderate working heights, it is widely used in warehouse management, retail shelving, light industrial maintenance, and indoor renovations.

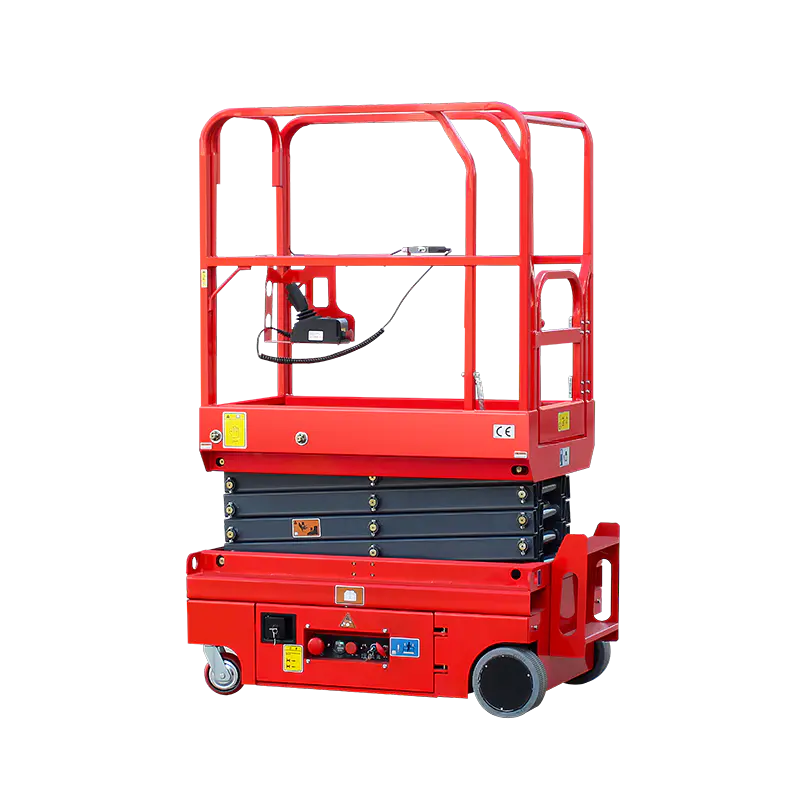

10 ft / 3m self-propelled Scissor Lift

A 10 ft / 3m self-propelled scissor lift is a compact aerial work platform with a maximum platform height of 10 feet (approximately 3 meters), providing a working height of around 16 feet (about 4.9 meters). Being self-propelled, it can be driven and steered from the platform, offering increased efficiency for tasks requiring movement across a work area. These lifts are typically electrically powered, making them suitable for indoor use on slab surfaces due to their quiet operation and zero emissions. Their small size and maneuverability make them ideal for tight spaces in maintenance, installation, and stock picking applications within facilities.

10 ft / 3m Scissor Lift

Rated Loading Capacity: 240kg

Lifting Height：3m / 10 ft

Platform: Anti-skid Checkered Plate

10 ft / 3m self-propelled Scissor Lift Parameters：

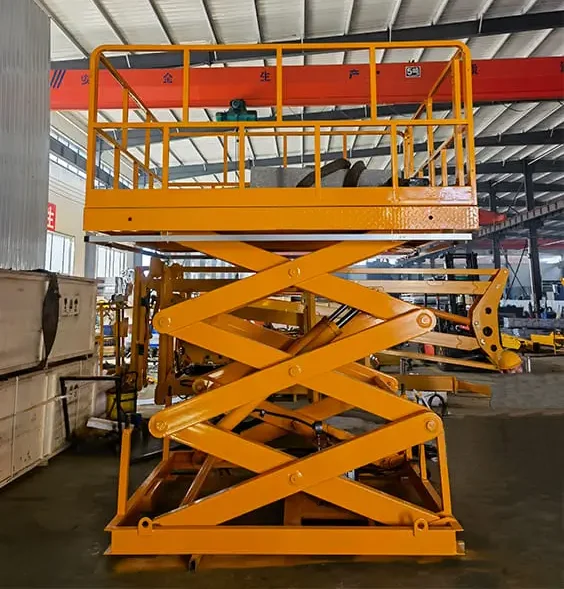

Stationary 10 ft / 3m Scissor Lift

A stationary 10 ft / 3m scissor lift is a fixed lifting platform designed to raise and lower goods or personnel to a maximum platform height of 10 feet (approximately 3 meters), providing a working height of around 16 feet (about 4.9 meters) in a specific location. Permanently installed and typically powered by hydraulics or electricity, it features a scissor mechanism for vertical movement. These lifts are commonly used in loading docks, assembly lines, or maintenance bays to overcome level changes or provide an elevated work area in a fixed spot.

• 3 meter 10 feet stationary scissor lift parameter:
• Rated Loading Capacity: 500kg-80ton
• Max. Lifting Height: 3000mm
• Type: Electric hydraulic
• Power supply: three-phase alternating current
• Table size: specified

Stationary 10 ft / 3m Scissor Lift parts：

Push Around 10 ft / 3m scissor lift

A push-around 10 ft (3m) scissor lift is a compact and manually mobile aerial work platform with a maximum platform height of 10 feet (approximately 3 meters), providing a working height of around 16 feet (about 4.9 meters). It lacks a self-propelled drive and needs to be manually pushed or towed into position. Once stationary, the scissor mechanism lifts the platform using manual hydraulic pumping or sometimes electric power. Ideal for indoor use on level surfaces where frequent repositioning over long distances isn’t needed, it offers a cost-effective and maneuverable solution for tasks like maintenance, cleaning, or installation in tight spaces within facilities.

Push Around 10 ft / 3m scissor lift:

Rated Loading Capacity: 240kg 300kg

Max. Lifting Height: 3

Lift Drive / Actuation:Electric hydraulic Motor

Push Around 10 ft / 3m scissor lift Parameters：

Below is a detailed analysis of electric 10 ft / 3m Scissor Lift features, advantage and applications:

Key Features Of 10 ft / 3m Scissor Lift

1. Compact & Portable Design
   • Folded height as low as 15–30 cm (6–12 inches) and width down to 0.8 meters (2.6 feet), enabling easy passage through standard doorways, aisles, or narrow corridors.
   • Lightweight construction (200–650 kg ) supports manual pushing or electric self-propelled mobility without specialized transport.
2. Precision Lifting & High Load Capacity
   • Platform height: 3 meters (10 feet); maximum extended height: 4.5 meters (14 feet).
   • Rated load capacity: 200–300 kg (440–660 lbs), accommodating 1–2 operators with tools and materials.
   • Stable lifting speed (0.1–0.3 m/s) with “soft start/stop functionality” to minimize vibration, ideal for delicate tasks like lighting installation or equipment calibration.
3. Dual-Power Flexibility
   • Electric Models: Powered by 24V/48V batteries with 6–8 hours of runtime, noise levels below 60 dB, and zero emissions—perfect for indoor use (e.g., warehouses, retail stores).
   • Manual Hydraulic Models: Operate without electricity via hand pumps or foot pedals, suited for temporary off-grid tasks.
4. Multi-Layered Safety
   • Anti-slip platform: Diamond-pattern steel or grating flooring with removable guardrails (1 meter / 3.3 feet high) to prevent falls.
   • Smart safety systems: Overload protection, emergency stop buttons, tilt alarms (auto-lock if tilted >3°), and hydraulic safety valves to prevent sudden drops.
5. Cost-Effective & Low Maintenance
   • Simple structure requiring only routine lubrication and hydraulic fluid checks.
   • Modular design allows quick battery or component replacements to minimize downtime.

Core Advantages Of 10 ft / 3m Scissor Lift

• Space Efficiency: Ultra-low folded profile and narrow footprint overcome spatial constraints.
• Ease of Use: Single-operator control for movement, lifting, and tasks, reducing labor demands.
• Eco-Friendly Operation: Electric models ensure quiet, emission-free performance in sensitive indoor environments.
• High ROI: Lower acquisition and maintenance costs compared to industrial-sized lifts.

Structure & Working Principle

1. Mechanical Structure

• Scissor Arms: High-strength steel cross-linked arms with single/dual-stage folding for compact storage.
• Work Platform: Anti-slip steel or lightweight aluminum deck with tool hooks and expandable panel interfaces.
• Base Unit:
  • Electric Models: Integrated drive motors, batteries, and Battery Management System (BMS).
  • Hydraulic Models: Manual pumps, foot pedals, non-slip stabilizers, and heavy-duty casters.
• Control Panel: IP54-rated controls with platform buttons or wireless remote operation.

2. Operating Principle

• Electric Drive: Battery → motor → gearbox extends/retracts scissor arms or activates hydraulic pumps.
• Hydraulic Drive: Manual pump pressurizes oil → cylinders lift arms; pressure release ensures smooth descent.
• Safety Loop: Sensors monitor load, platform leveling, and system pressure, triggering alarms or auto-locks for anomalies.

Typical Applications Of 10 ft / 3m Scissor Lift

• Warehousing: Mid-level shelf access, label replacement, security camera installation.
• Retail: Stocking shelves, cleaning ceiling fixtures, hanging promotional displays.
• Light Industry: Production line maintenance, small machinery repairs, workshop lighting adjustments.
• Facility Management: HVAC filter replacement, indoor wall repairs, fire safety inspections.

Conclusion

The 10 ft (3m) Scissor Lift excels in low-to-medium height tasks with its compactness, ease of use, and robust safety features. Whether opting for the quiet, eco-friendly electric model or the power-free hydraulic variant, it delivers precise performance for indoor and outdoor applications. Its modular design and low maintenance requirements further reduce long-term costs, making it an indispensable tool for SMEs, retail sectors, and facility management teams seeking efficiency and safety.
