50 ft / 15m Scissor Lift

The 50 ft / 15m Scissor Lift (also referred to as the 50-foot Scissor Lift, 50′ Scissor Lift, or 50 Scissor Lift) is an industrial-grade aerial platform designed for ultra-high-altitude tasks, offering a working height of 50 feet. This 50 ft scissor lift combines multi-stage scissor mechanics, intelligent hydraulics, and rugged adaptability for extreme environments like skyscraper construction, offshore wind farms, or disaster rescue operations.

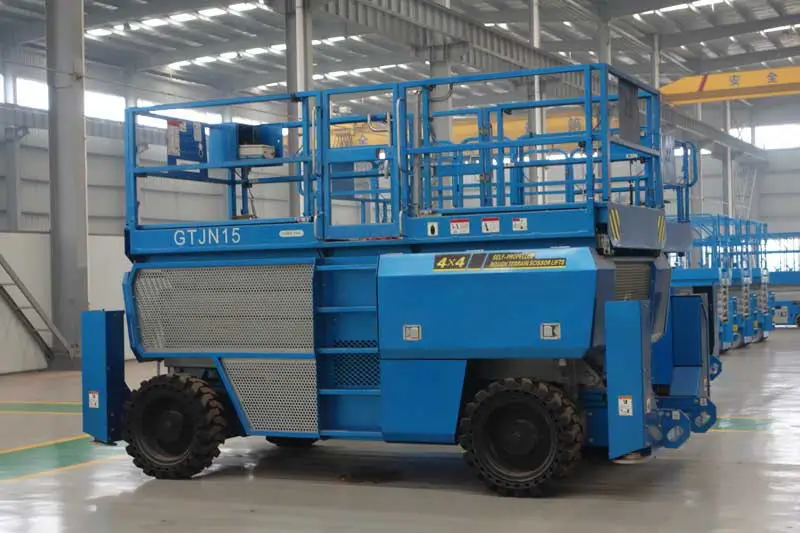

All Terrain 50 ft / 15m Scissor Lift

An all-terrain 50 ft / 15m scissor lift is a heavy-duty aerial work platform specifically designed for use on rough and uneven outdoor terrain. With a significant maximum working height of 50 feet (approximately 15 meters), it features large, robust tires, four-wheel drive, and often outriggers for enhanced stability. Powered by a diesel engine or electric, these lifts provide substantial reach and lifting capacity for demanding tasks on construction sites, in agriculture, or other challenging outdoor environments where stable access to elevated areas is crucial.

All Terrain 50 ft / 15m Scissor Lift / Rough terrain scissor lift / off road scissor lift / 4wd scissor lift:

Capacity: 365~1100kg  803~2430 lbs

Max Height: 50 ft / 15m

Certification:CE ISO

Power supply: diesel

Key characteristics of All Terrain 50 ft / 15m Scissor Lift:

1. CE certified and compliant with EU EN280 safety standards.
2. Automatic walking function for efficient one-person operation at height.
3. Tilt alarm safety system and oil pipe explosion-proof protection.
4. Stepless speed change for efficient operation and extended component life.
5. Dual ground and platform controls with emergency stops and a platform foot switch.
6. Hydraulic disc brake system for reliable stopping on inclines.
7. Extendable platform to increase working reach.
8. Overload protection and safety features for all users.
9. Self-diagnosis function for easy maintenance.
10. Clear and understandable identification.
11. Emergency descent system.

All Terrain 50 ft / 15m Scissor Lift Parameters：

Model	GTJZ-13AT
Working height maximum	15m
Platform height maximum	13m
Lift capacity	680kg
Lift capacity (extension deck)	230kg
Length(without/with outriggers)Ⓓ	4.2/4.81m
WidthⒺ	2.28m
Height(stowed)Ⓒ	3.03m
Wheel baseⒻ	2.84m
Ground clearance-centerⒼ	0.23m
Platform measurementⒷ*Ⓐ	3.95*1.83m
Extension deck measurement	1.22*1.52m
Turning radius Minimum	4.95m
Travel speed(stowed)	6.3km/h
Travel speed(raised)	1.1km/h
Gradeability	50%
Solid tire	33/12-20
Weight	6350kg
Fuel tank volume	115L
Hydraulic tank volume	170L
Drive mode	4*4*4
Steering wheel number	4
Engine	Yanmar 4TNV94L-BXPHZX / Perkins 404D-22
Rated power	35.5KW/38KW

Key characteristics and features of 50 ft / 15m Scissor Lift include:

Key Features of 50 ft / 15m Scissor Lift

1. Ultra-High Stability
   • The 50-foot scissor lift features 10–12-stage steel arms resistant to 20 m/s winds, ensuring stability at 15 meters.
   • Massive Platform: Standard size 3.95m × 1.83m supports 6–8 operators on the 50′ scissor lift.
2. All-Terrain Power
   • Electric Models: The 50 ft scissor lift runs on lithium batteries for 16–18 hours, with crawler tracks for 35% slopes.
   • Hybrid Models: Diesel-electric power delivers 20–24 hours of runtime, ideal for remote sites.
3. Intelligent Precision
   • The 50 scissor lift achieves ±1 mm hovering accuracy, critical for laser alignment or welding.
   • AI Auto-Leveling: Adjusts to slopes ≤8° for the 50-foot scissor lift.

Core Advantages of 50 ft / 15m Scissor Lift

• Efficiency: The 50′ scissor lift reaches 15 meters in 15 seconds, cutting project timelines by 50%.
• Durability: The 50 ft scissor lift ensures a 20-year lifespan.
• Versatility: Convert the 50 scissor lift into a welding station or firefighting ladder via modular attachments.

Structure & Applications

• Scissor Arms:High duty steel composite arms minimize friction on the 50-foot scissor lift.
• Typical Uses:
  • Skyscrapers: Glass facade installation using the 50′ scissor lift.
  • Ports: Container operations with the 50 ft scissor lift’s hybrid model.

Conclusion

Whether termed the 50 ft Scissor Lift, 50-foot Scissor Lift, or 50′ Scissor Lift, this equipment redefines industrial high-altitude work. The 50 scissor lift is a strategic asset for conquering vertical challenges with unmatched efficiency and innovation.height in demanding outdoor environments where standard aerial lifts may not be suitable.
