2 Man Scissor Lift

The 2 Man Scissor Lift is a compact aerial work platform designed for dual-operator collaboration, utilizing a scissor mechanism to achieve vertical elevation. Engineered to enhance efficiency and safety, it is widely used for indoor and outdoor tasks such as maintenance, installation, cleaning, and warehouse management, particularly suited for jobs requiring coordinated teamwork at height.

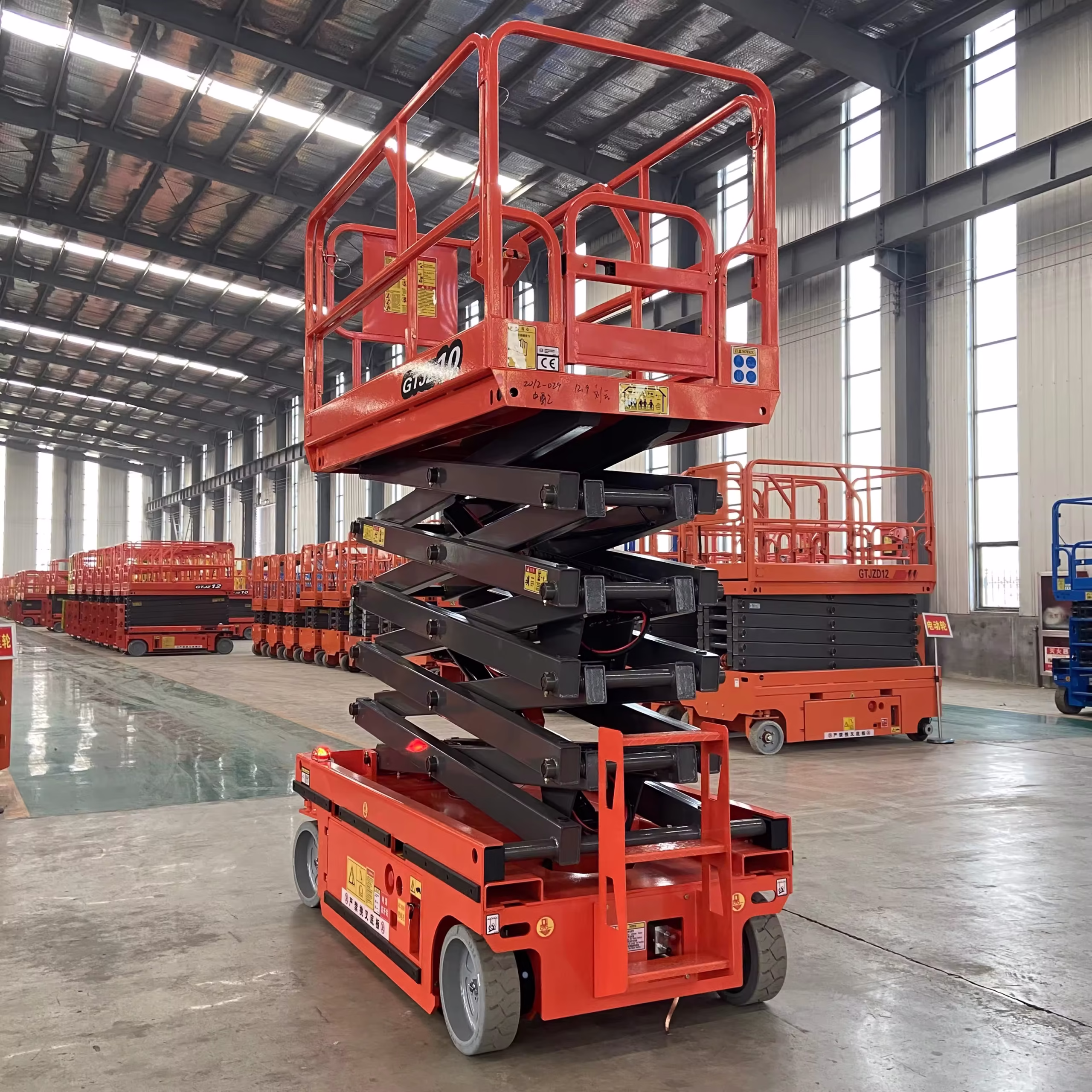

Self-propelled 2 Man Scissor Lift

A self-propelled 2-man scissor lift is a mobile aerial work platform designed to elevate two personnel and their tools to working heights. It features an integrated drive system allowing operators to control both the vertical movement of the platform and the horizontal movement of the lift from the work area. These lifts offer enhanced maneuverability and efficiency for tasks requiring movement across a workspace. Typically electrically powered for indoor and some outdoor use on slab surfaces, they provide a stable platform for maintenance, installation, and construction tasks.

Self-propelled 2 Man Scissor Lift:

Rated Loading Capacity: 230kg 320kg 480kg

Lifting Height: 3-14m

Lift Drive / Actuation:Hydraulic electric

Platform:Anti-skid Checkered Plate

Self-propelled 2 Man Scissor Lift Parameters：

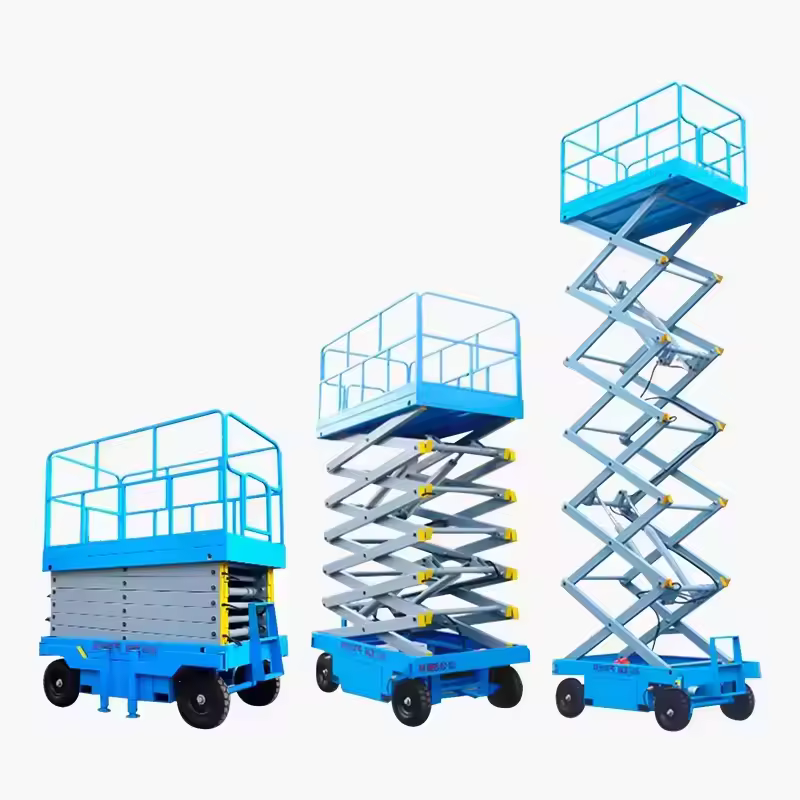

Towable 2 Man Scissor Lift

A towable 2-man scissor lift is a portable aerial work platform designed to be towed behind a vehicle for transport between job sites. It features a scissor mechanism to lift a platform capable of holding two people and their tools to working heights. Once positioned and stabilized with outriggers, it provides a stable elevated work area for tasks like maintenance, painting, or construction. Its towable nature offers easy relocation, making it a versatile solution for accessing different elevated locations.

• Towable two man Scissor Lift
• Rated load: 300kg 500kg 1000kg 2000kg
• Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
• Walking mode: hand pull or assist walking
• Power supply: Ac, battery, diesel, manual
• Type: Electric Hydraulic

Towable 2 Man Scissor Lift Parameters：

Below is a detailed analysis of 2 Man Scissor Lift features, advantage and applications:

Key Features of 2 Man Scissor Lift

1. Dual-Operator Collaboration
   • A spacious platform with anti-slip surfaces and adjustable guardrails allows two workers to operate simultaneously, improving productivity.
   • Typical load capacity ranges from 300–2000 kg, accommodating tools, materials, and personnel.
2. High-Efficiency Lifting
   • Lifting heights span 6–20 meters (model-dependent) with stable speeds (approx. 0.2–0.4 m/s) for precise positioning.
   • Multi-stage folding scissor arms made of high-strength steel ensure smooth operation and compact storage.
3. Mobility and Space Efficiency
   • Equipped with swivel castors or self-propelled drive systems (electric/hydraulic) for easy navigation through narrow spaces.
   • Compact folded dimensions simplify transportation and storage.
4. Comprehensive Safety Systems
   • Standard safety features include emergency stop buttons, fall arrest locks, overload protection, and tilt alarms.
   • Lockable guardrails and anti-slip outriggers enhance stability during operation.
5. Eco-Friendly Design
   • Battery-powered electric models operate with zero emissions and low noise, ideal for indoor or noise-sensitive environments.

Core Advantages of 2 Man Scissor Lift

• Doubled Productivity: Dual-operator workflow reduces lift cycles and shortens project timelines.
• Enhanced Safety: Fully enclosed scissor structure and multi-layered safety mechanisms minimize risks.
• Versatile Adaptability: Customizable options (e.g., insulated platforms, explosion-proof motors) cater to specialized industries like electrical maintenance or chemical plants.
• Cost-Effective: Minimal installation requirements and low maintenance ensure high ROI.

Structure and Working Principle of 2 Man Scissor Lift

1. Mechanical Structure
   • Scissor Arms: Interlinked steel arms driven by hydraulic cylinders or electric actuators to extend/retract vertically.
   • Work Platform: Open or enclosed design with anti-slip flooring, tool hooks, and control panels.
   • Base Unit: Includes drive wheels, steering castors, stabilizers, and a power system (motor/hydraulic pump); some models support wireless remote control.
2. Operating Principle
   • Power Input: Electric motors drive hydraulic pumps or actuators to extend/retract the scissor arms.
   • Height Control: Operators adjust elevation via a control panel or remote, with optional auto-leveling in advanced models.
   • Safety Monitoring: Sensors detect overload, tilt, or system pressure anomalies, triggering alarms or automatic shutdowns.

Typical Applications of 2 Man Scissor Lift

• Industrial: Factory equipment repair, pipeline installation, production line maintenance.
• Commercial: Mall lighting replacement, window cleaning, signage installation.
• Public Infrastructure: Station canopy repairs, stadium lighting adjustments, warehouse rack management.

Conclusion

The 2 Man Scissor Lift combines precision engineering with intelligent safety systems to deliver an ideal solution for dual-operator aerial tasks. Its efficiency, mobility, and robust safety features significantly reduce labor costs and operational risks, making it an essential tool for modern industrial and commercial operations.truction safety, or reducing labor costs, it delivers reliable performance. By aligning your needs with technical specs, you can find the perfect match for your operations.
