The Mobile Scissor Lift is a versatile aerial work platform combining mobility and vertical lifting capabilities. Utilizing a scissor mechanism powered by electric and hydraulic systems, it enables flexible, on-demand deployment across diverse worksites without fixed installation. Designed for efficiency and adaptability, it is widely used in warehousing, factory maintenance, construction, event setups, and other scenarios requiring frequent relocation.
Towable Mobile Scissor Lift
A towable mobile scissor lift is a versatile aerial work platform that combines the portability of a trailer with the maneuverability of a mobile scissor lift. Designed to be easily towed behind a vehicle, it can be transported to various job sites. Once on location, it can be manually positioned or has its own wheels for maneuvering. The scissor mechanism then lifts a work platform to provide access for tasks such as maintenance, construction, or painting. This type of lift offers a balance of reach and ease of transport, making it suitable for a range of applications across different locations.
- Rated load: 300kg 500kg 1000kg 2000kg
- Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
- Walking mode: hand pull or assist walking
- Power supply: ac, battery, diesel, manual
- Type: Electric Hydraulic
Towable Mobile Scissor Lift Parameters：
| Model | Platform Size (m/ft) | Net Lift Height (m/ft) | Load Capacity (kg/lb) | Self Weight (kg/lb) | External Dimensions (m/ft) |
|---|---|---|---|---|---|
| SJY-0.5-4 | 2.01×0.83/6.59×2.72 | 4/13.12 | 500/1102 | 670/1477 | 2.02×1.00×1.12/6.63×3.28×3.67 |
| SJY-0.5-6 | 2.01×0.83/6.59×2.72 | 6/19.69 | 500/1102 | 730/1609 | 2.02×1.00×1.17/6.63×3.28×3.84 |
| SJY-0.5-6.8 | 2.01×0.83/6.59×2.72 | 6.8/22.31 | 500/1102 | 780/1720 | 2.02×1.00×1.17/6.63×3.28×3.84 |
| SJY-0.5-8 | 2.01×0.83/6.59×2.72 | 8/26.25 | 500/1102 | 860/1896 | 2.02×1.00×1.26/6.63×3.28×4.13 |
| SJY-0.5-9 | 2.01×0.83/6.59×2.72 | 9/29.53 | 500/1102 | 1080/2381 | 2.02×1.00×1.48/6.63×3.28×4.86 |
| SJY-0.5-10 | 2.01×1.13/6.59×3.71 | 10/32.81 | 500/1102 | 1300/2866 | 2.02×1.29×1.54/6.63×4.23×5.05 |
| SJY-0.3-11 | 2.01×1.13/6.59×3.71 | 11/36.09 | 300/661 | 1400/3086 | 2.02×1.29×1.66/6.63×4.23×5.45 |
| SJY-0.5-12 | 2.50×1.21/8.20×3.97 | 12/39.37 | 500/1102 | 2050/4519 | 2.50×1.36×1.78/8.20×4.46×5.84 |
| SJY-0.5-14 | 2.85×1.42/9.35×4.66 | 14/45.93 | 500/1102 | 2540/5600 | 2.85×1.62×1.90/9.35×5.31×6.23 |
| SJY-0.3-16 | 2.85×1.42/9.35×4.66 | 16/52.49 | 300/661 | 2700/5952 | 2.85×1.62×2.06/9.35×5.31×6.76 |
| SJY-0.3-18 | 3.06×1.62/10.04×5.31 | 18/59.06 | 300/661 | 3900/8598 | 3.06×1.80×2.12/10.04×5.91×6.96 |
| SJY-1.0-4 | 2.01×1.13/6.59×3.71 | 4/13.12 | 1000/2205 | 1000/2205 | 2.02×1.29×1.15/6.63×4.23×3.77 |
| SJY-1.0-6 | 2.01×1.13/6.59×3.71 | 6/19.69 | 1000/2205 | 1130/2491 | 2.02×1.29×1.31/6.63×4.23×4.30 |
| SJY-1.0-8 | 2.01×1.13/6.59×3.71 | 8/26.25 | 1000/2205 | 1380/3042 | 2.02×1.29×1.42/6.63×4.23×4.66 |
| SJY-1.0-10 | 2.01×1.13/6.59×3.71 | 10/32.81 | 1000/2205 | 1580/3483 | 2.02×1.29×1.62/6.63×4.23×5.31 |
| SJY-1.0-12 | 2.46×1.21/8.07×3.97 | 12/39.37 | 1000/2205 | 2400/5291 | 2.47×1.36×1.78/8.10×4.46×5.84 |
| SJY-1.0-14 | 2.85×1.42/9.35×4.66 | 14/45.93 | 1000/2205 | 3000/6614 | 2.85×1.62×1.90/9.35×5.31×6.23 |

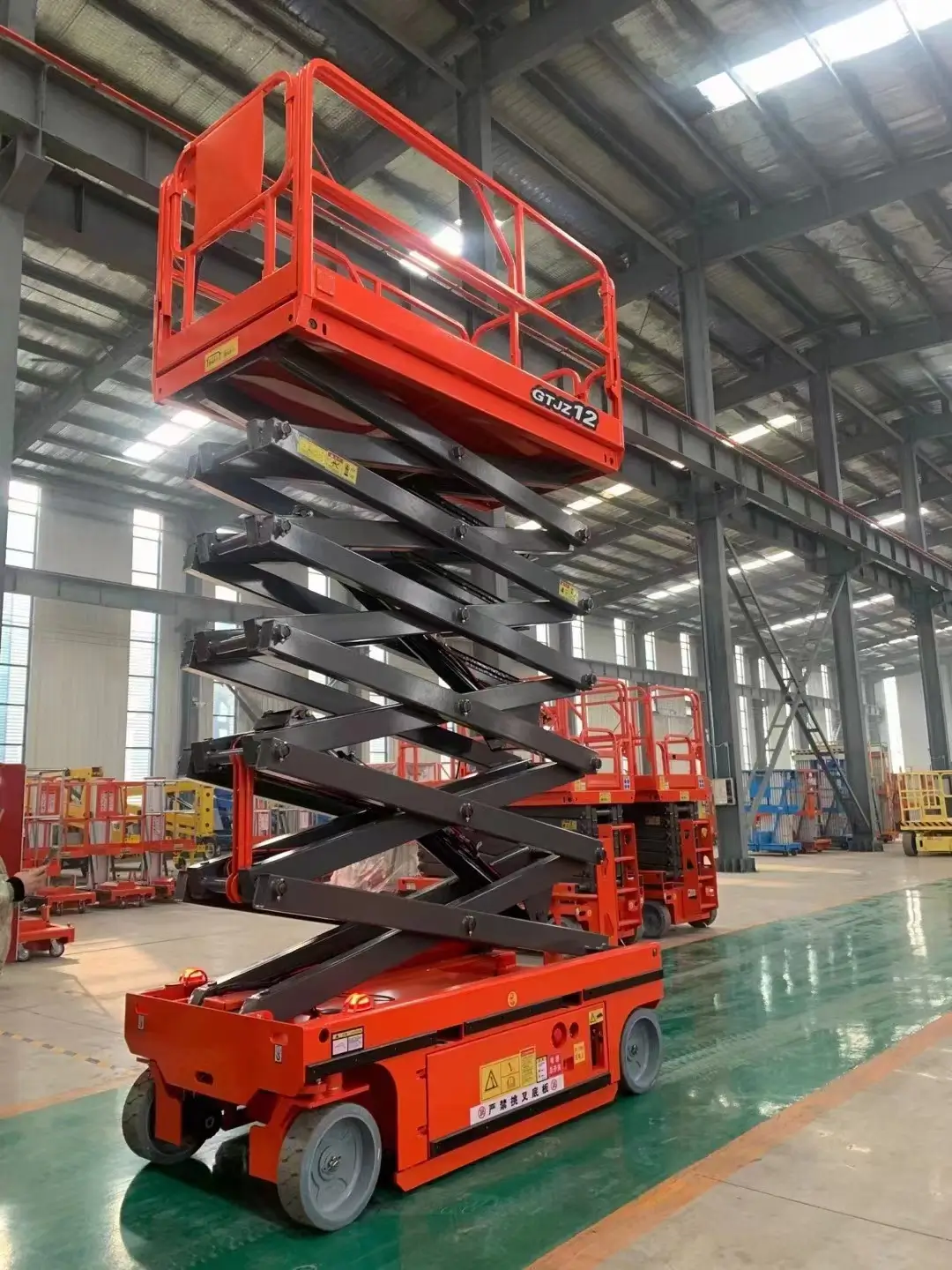

Self-propelled Mobile Scissor Lift
A self-propelled mobile scissor lift is an aerial work platform with an integrated drive system, allowing it to move independently around a work site. Operators can control both the vertical lifting of the platform and the horizontal movement of the lift from the platform itself. Typically powered by electricity or diesel, these lifts offer enhanced maneuverability and efficiency for tasks requiring frequent repositioning or covering larger areas. They are commonly used in construction, maintenance, and warehousing applications.
- Rated Loading Capacity: 320kg 480kg
- Min. Lifting Height: 800mm
- Max. Lifting Height：16000mm
- Main Material: High duty steel
- Travel Speed: 0.8-3.2km/h
- Power: 4×12(300)V/(Ah) electro-hydraulic
Self-propelled Mobile Scissor Lift Parameters：
| Model | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| Motor | 3.3kW | 3.3kW | 4.5kW | 4.5kW |
| Lifting Speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Max Working Height | 7.8m | 9.8m | 11.8m | 13.8m |
| Max Platform Height | 5.8m | 7.8m | 9.8m | 11.8m |
| Safe Working Load | 550kg | 450kg | 320kg | 320kg |
| Number of works | 2 | 2 | 2 | 2 |
| Folded Size | 248*119*168cm | 248*119*182cm | 248*119*192cm | 248*119*205cm |
| Weight | 2150kg | 2300kg | 2540kg | 2880kg |
Mobile Scissor Lift table
A mobile scissor lift table is a material handling device featuring a flat platform that can be raised and lowered using a scissor mechanism, and it is equipped with wheels or casters for easy movement within a workspace. These tables are used to lift and position goods to an ergonomic working height, aiding in tasks like assembly, order picking, or loading and unloading. They can be powered manually or electrically and offer flexibility in various industrial and commercial settings.
Capacity: 150~2000kg
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Lifting methods: electric lift
Travel methods: manual push
Table: can add the roller for rolling
Mobile Scissor Lift table Parameters：
| Specifications for mobile hydraulic Scissor Lift Table Trolley | ||||
| Type | HT300 | HT350 | HT500 | HT1000 |
| Rate load (kg) | 300 | 350 | 500 | 1000 |
| Max height (mm) | 900 | 1300 | 900 | 1000 |
| Min height (mm) | 280 | 350 | 280 | 350 |
| Weight (kg) | 80 | 110 | 85 | 106 |
| Table size (mm) | 810*500*50 | 900*500*50 | 810*500*50 | 1000*510*60 |
| Dimensions (mm) | 1130*500*970 | 1250*500*960 | 1130*500*970 | 1300*510*1000 |
| Package Size (mm) | 925*515*290 | 990*520*360 | 930*520*290 | 1150*520*360 |
| 20-foot container capacity(pcs) | 120 | 120 | 120 | 120 |
This article breaks down its core advantages, ideal applications, and selection tips to help you tackle high-load tasks efficiently.
Key Features Of Mobile Scissor Lift
- Superior Mobility
- Equipped with self-propelled drive systems (electric/hydraulic) for forward/reverse movement and steering, controlled directly from the platform.
- Features swivel castors or all-terrain tires to navigate indoor floors, rough workshop surfaces, or mild outdoor terrain.
- Compact Design & Rapid Deployment
- Folded height as low as 150–300 mm and width down to 0.8 meters, enabling passage through narrow corridors or standard doorways.
- One-touch lifting operation reaches full working height in 20–40 seconds, maximizing productivity.
- High Load Capacity & Performance
- Working height range: 4–18 meters; rated load capacity: 200–2000 kg, supporting tools, materials, and multiple operators.
- Stable lifting speed (approx. 0.2–0.5 m/s) with “soft start/stop” functionality to minimize platform vibration.
- Intelligent Safety Systems
- Tilt Protection: Auto-locks lifting functions if ground slope exceeds safe limits.
- Dual-Control Mode: Operable via platform console or remote ground control, with emergency remote shutdown.
- Anti-Pinch Sensors: Infrared detection around scissor arms prevents entrapment of personnel or objects.
- Eco-Friendly & Long-Lasting
- Electric models powered by 48V lithium batteries offer 6–10 hours of runtime, fast charging (full charge in 2 hours), zero emissions, and low noise (<65 dB).
- Optional solar charging modules further reduce energy consumption.
Core Advantages Of Mobile Scissor Lift
- No Fixed Installation: Eliminates site dependency, enabling “use anywhere” flexibility.
- All-Terrain Adaptability: Compact chassis + multi-surface tires suit indoor/outdoor applications.
- Smart User Interface: LCD screen displays real-time height, battery status, and error codes for simplified maintenance.
- Modular Customization: Expandable platforms, insulated workstations, or explosion-proof configurations available for specialized industries like electrical or chemical sectors.
Structure & Working Principle
1. Mechanical Structure
- Scissor Arms: High-strength alloy steel cross-linked arms with multi-stage folding for optimal height-to-storage balance.
- Work Platform: Anti-slip grating floor with 1.2-meter removable guardrails; optional tool racks or power outlets.
- Power Base:
- Electric Models: Integrated drive motors, lithium batteries, and smart BMS (Battery Management System).
- Hydraulic Models: Diesel/electric dual-power options for off-grid environments.
- Control System: IP65-rated panel with CAN bus communication for precise motion control.
2. Operating Principle
- Power Transmission:
- Electric: Battery → motor → gearbox → drive wheels (movement) + electric actuators/hydraulic pumps (lifting).
- Hydraulic: Engine/motor → hydraulic pump → cylinders extend scissor arms.
- Safety Loop:
- Sensors monitor load, platform leveling, battery voltage/hydraulic pressure, triggering alarms or shutdowns for anomalies.
- Dual redundant braking: Electromagnetic + mechanical parking brakes ensure slope safety.
Typical Applications Of Mobile Scissor Lift
- Warehousing: High-level picking, inventory audits, lighting maintenance.
- Manufacturing: Production line installations, ceiling repairs, machinery servicing.
- Construction: Interior finishing, steel welding, pipeline installation.
- Emergency Services: Temporary lighting setups, post-disaster equipment repairs.
Conclusion
The Mobile Scissor Lift redefines aerial work flexibility with its mobility, intelligence, and modular design. Its rapid deployment, terrain adaptability, and multi-layered safety systems reduce labor costs and overcome traditional equipment limitations. Whether for routine maintenance or urgent tasks, it delivers a reliable, efficient solution, enhancing both safety and productivity in dynamic work environments.ored heavy-duty scissor lift solutions!n industrial and logistics sectors.
