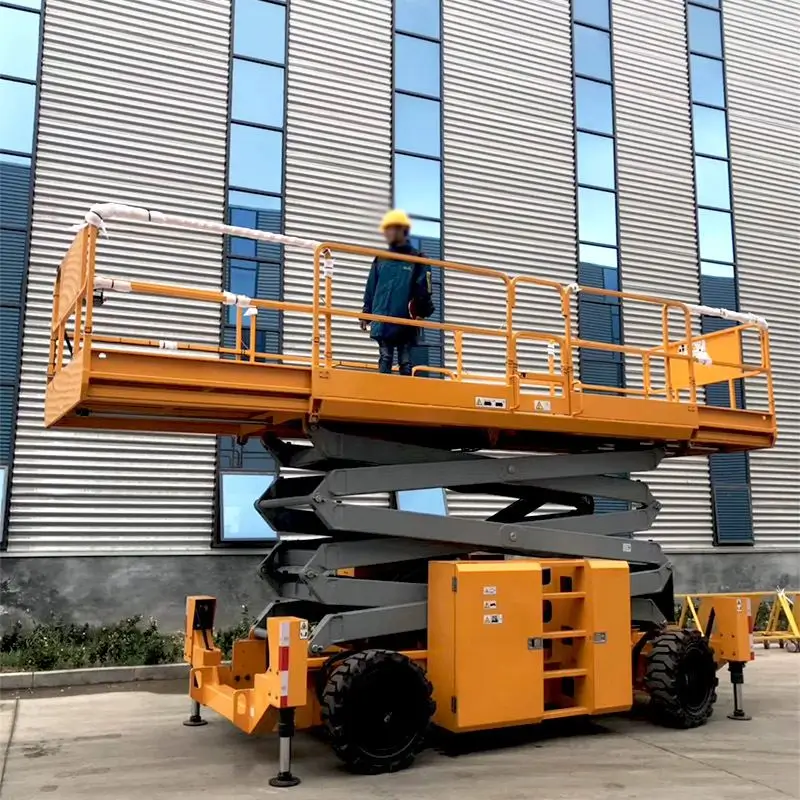

60 ft / 18m Scissor Lift

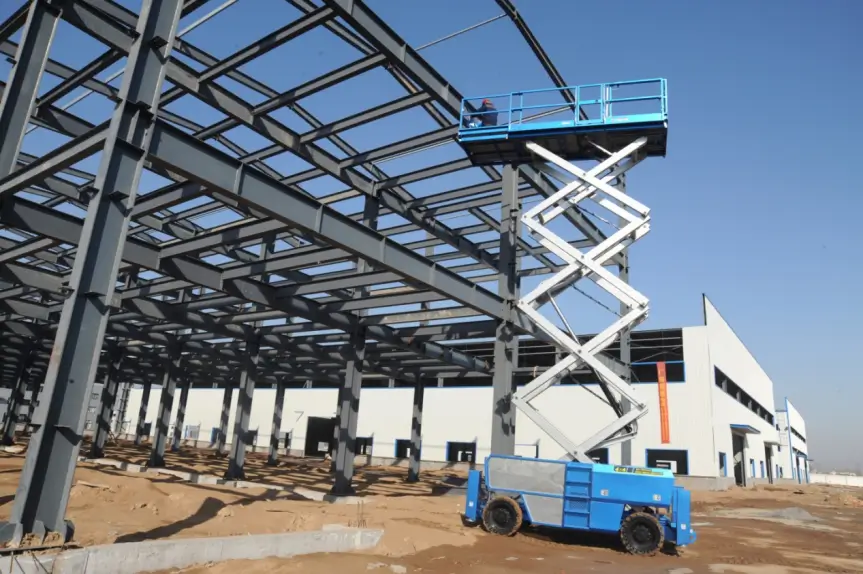

The 60 ft / 18m Scissor Lift (also referred to as the 60-foot Scissor Lift, 60′ Scissor Lift, or 60 Scissor Lift) is an industrial-grade working platform engineered for high-altitude heavy-duty operations, covering a working height of 18 meters (59 feet) with a rated load capacity of 680 kg (1500 lbs). Designed for scenarios like skyscraper facade construction, wind turbine maintenance, and offshore platform repairs.

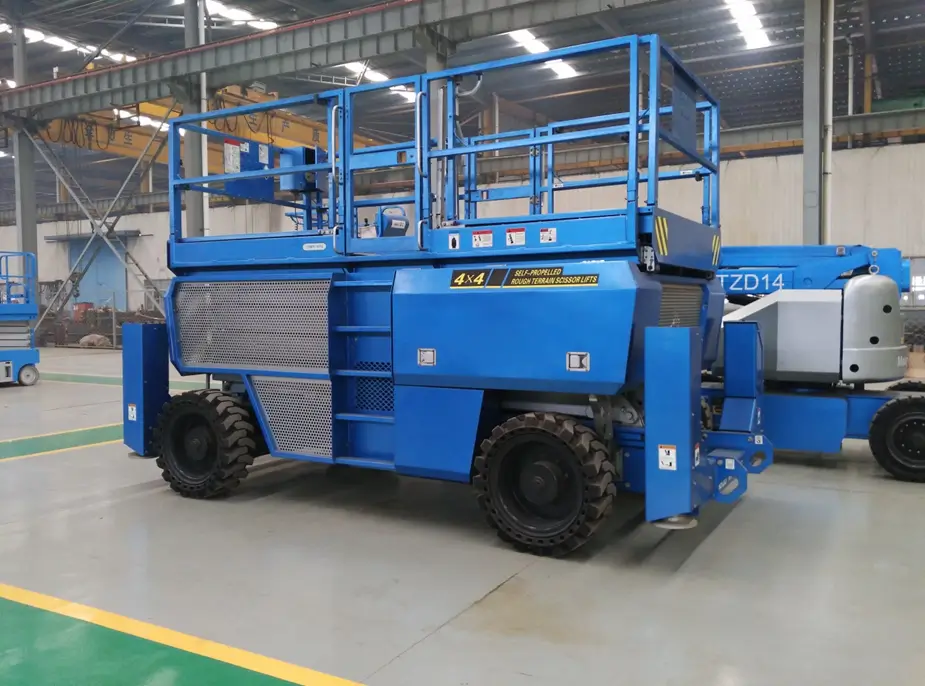

Rough terrain 60 ft / 18m Scissor Lift

A rough terrain 60 ft / 18m scissor lift is a powerful aerial work platform engineered for demanding outdoor environments. With a substantial maximum working height of around 59 feet (18 meters), it features robust construction, large, heavy-duty tires, and often four-wheel drive and stabilizing outriggers. Powered by a diesel engine or electric, this type of lift provides significant reach and lifting capacity for construction, maintenance, and other tasks on uneven or challenging ground conditions. Its design prioritizes stability and performance in rugged outdoor settings.

Rough terrain 60 ft / 18m Scissor Lift/All terrain scissor lift / off road scissor lift / 4wd scissor lift:

Capacity: 365~1100kg  803~2430 lbs

Max Height: 60 ft / 18m

Certification:CE ISO

Power supply: diesel / electric

Rough terrain 60 ft / 18m Scissor Lift Parameters：

Designed for industrial applications, this Rough terrain 60 ft / 18m Scissor Lift combines robust performance with advanced engineering features. The 60′ scissor lift model offers exceptional adaptability across challenging work environments while maintaining operator safety and efficiency.

Key Operational Advantages of Rough terrain 60 ft / 18m Scissor Lift

1. Enhanced Power System
   Equipped with a four-wheel drive configuration, this Rough terrain 60 ft / 18m Scissor Lift scissor lift delivers superior torque distribution and climbing capabilities. The dual-speed transmission allows seamless transition between operational modes, while the maintenance-optimized design features a slide-out engine compartment for convenient service access.
2. Terrain Adaptive Technology
   The active oscillation axle system automatically adjusts to uneven surfaces, maintaining full-wheel ground contact and power consistency. This feature proves particularly valuable when operating the 60 scissor lift on construction sites or rough terrain.
3. Expanded Work Platform
   Featuring bi-directional hydraulic extension, the 60-foot scissor lift platform achieves an industry-leading 6.65m × 1.83m work area. Integrated hydraulic stabilizers ensure platform leveling on slopes up to 3° grade variation.
4. Structural Innovations

• Slide-out power module with quick-disconnect components
• Reinforced scissor arms with cross-brace safety bars
• Low-center gravity chassis design (weight distribution ratio 7:3)

Technical Specifications of of Rough terrain 60 ft / 18m Scissor Lift

1. Dual Control System
   The 60′ scissor lift features synchronized ground/platform operation:

• Base station controls elevation functions
• Platform-mounted proportional joystick enables:
  • Precision multi-axis movement
  • Travel speed modulation (0-3.2km/h)
  • 360° rotational steering

2. Load Capacity Configuration

• Standard platform capacity: 680-1180kg
• Extended deck configuration maintains full load rating
• Dynamic load stabilization system prevents capacity drift

3. Safety Assurance Systems

• Dual-circuit hydraulic locking with manual override
• Intelligent descent control:
  • Auto-stop safety interlock
  • Resettable 5-second delay protocol
  • Reduced-speed (50%) recovery mode
• Fail-safe structural monitoring:
  • Real-time stress point analysis
  • Torsional deflection compensation

This Rough terrain 60 ft / 18m Scissor Lift scissor lift meets ANSI/SIA A92.20-2018 standards, featuring 360° obstacle detection and automatic terrain compensation.  Our 60 ft / 18m Scissor Lift, with its superior performance, reliable quality, and comprehensive safety features, is your ideal choice for high-altitude operations. Regardless of your industry, we believe this equipment can help you complete your work more safely and efficiently.
