In Ground / Floor Scissor Lift

The In Ground / Floor Scissor Lift (also referred to as full rise scissor lift) is a hydraulically or electrically powered mechanical lifting device designed to efficiently and safely elevate heavy vehicles, cargo, or equipment. Its core structure utilizes a crisscross folding “scissor mechanism” that enables vertical platform movement through expansion or contraction.

In-Ground Scissor Lift Type: Requires embedded installation below floor level, with the platform flush with the ground, maximizing space efficiency for environments demanding seamless flooring.

Floor Scissor Lift Type: Installed directly on the ground surface, eliminating excavation needs, offering greater flexibility for relocation or maintenance.

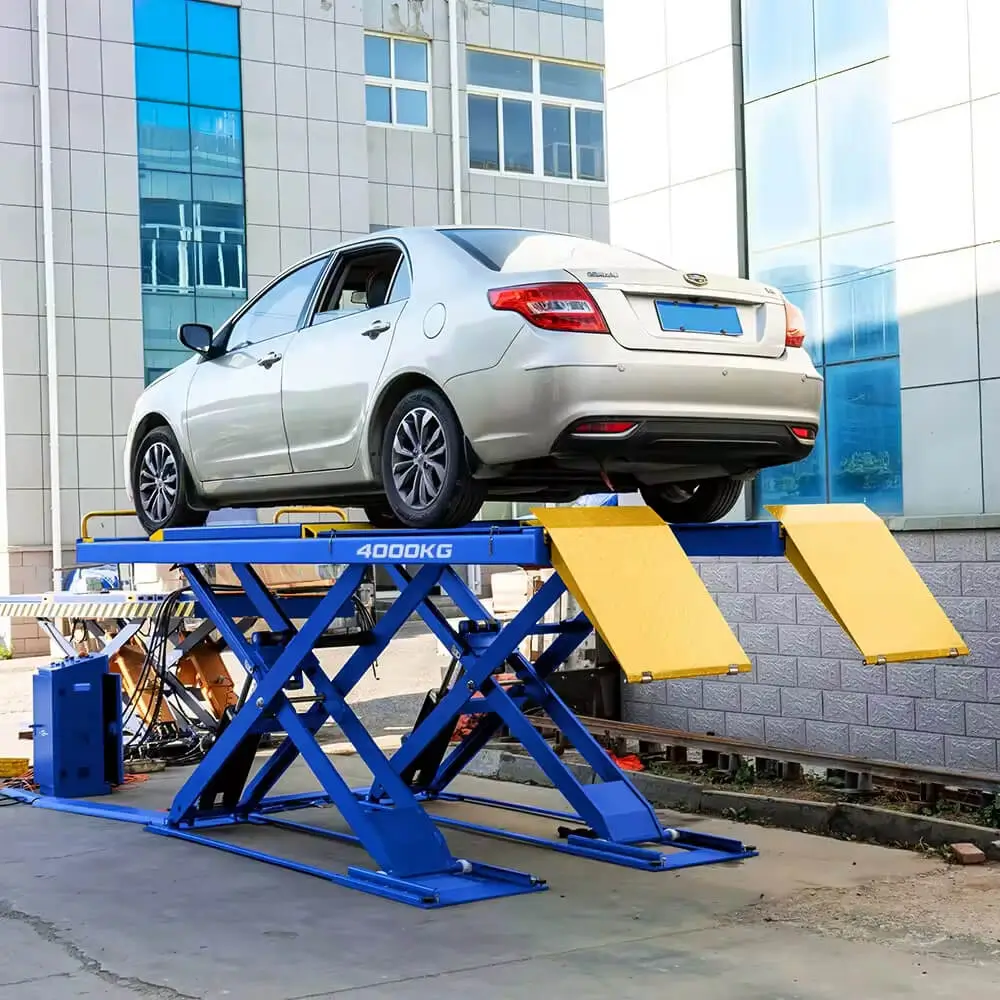

In Ground / Floor Scissor Lift

• In Ground / Floor Scissor Lift / Full rise scissor lift
• Lifting capacity: 7716Lbs/3500kg 4000KG
• Max lifting height: 1850mm
• Motor voltage: 220V, 380V, 415V or customer-specified

In Ground / Floor Scissor Lift/ Full rise scissor lift Parameters：

Our In Ground / Floor Scissor Lift/ Full rise scissor lift offers the following significant advantages:

1. Its super-low platform and ramps provide easy access for vehicles of all chassis heights, with a space-saving design for direct floor mounting.
2. Synchronized lifting is guaranteed by double tandem balanced cylinders and a four-cylinder drive, providing a substantial 4.0T lifting capacity for various vehicle repairs.
3. A flexible secondary lifting trolley, controlled by both manual buttons and remote, enhances operational versatility.
4. The extended side slide design allows for the accommodation of vehicles with different wheelbases, including compact cars, SUVs, and commercial vans.
5. A safe working environment is ensured through the integration of mechanical safety locks, explosion-proof valves, and the inherent safety lock of the hydraulic system.
6. The use of imported oil seals extends the durability of the cylinders, and the combination valve block system ensures accurate machine leveling.
7. Double-deck steel oil pipes provide superior protection against hydraulic line failure.
8. The surface finish, achieved through shot blasting, degreasing, and electrostatic powder coating, offers excellent resistance to corrosion, strong coating adhesion, and high durability.

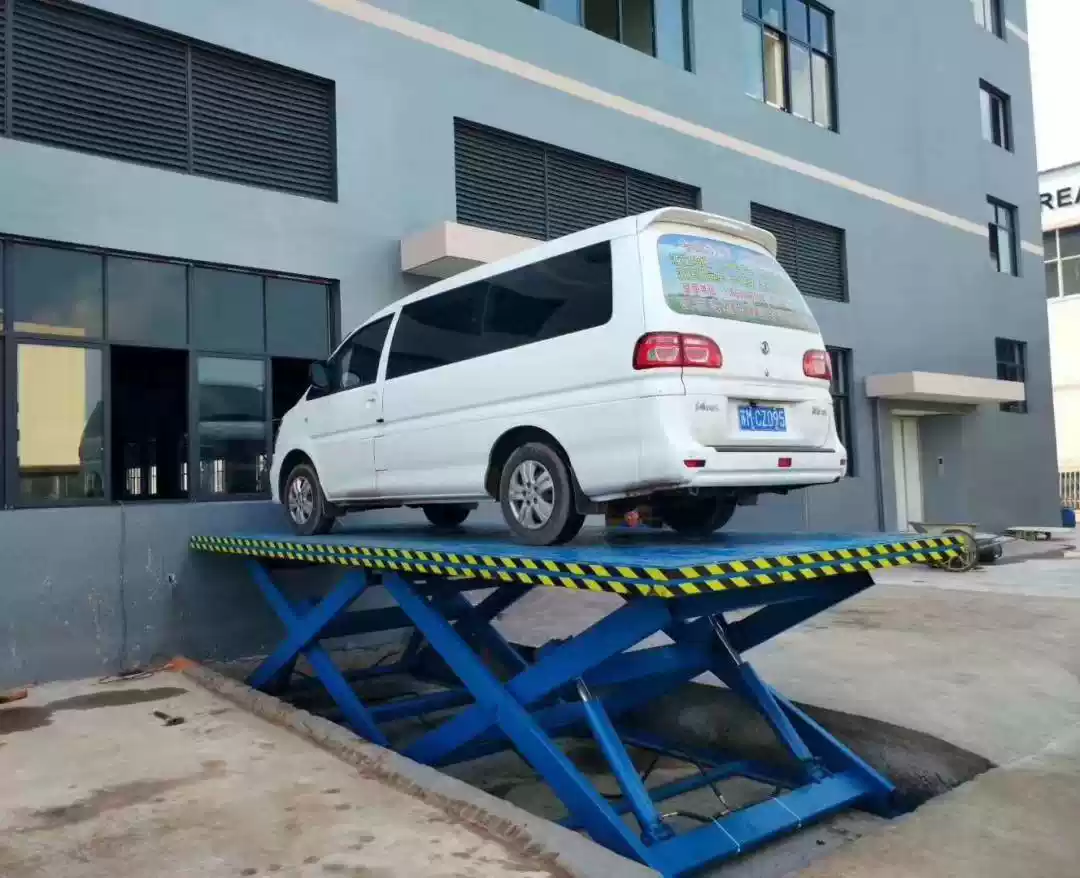

In Ground / Floor Scissor Lift for car or cargo

An In Ground / Floor Scissor Lift for car or cargo is a lifting mechanism installed either recessed into the floor (in-ground) or mounted directly on the floor. It uses a scissor-like mechanism powered by hydraulics to raise vehicles or goods to a working height. In-ground models offer a flush surface when lowered, saving space and providing unobstructed movement, making them popular in professional garages and workshops for vehicle maintenance and repairs. Floor-mounted versions offer easier installation. Both types provide a stable platform for lifting cars or cargo.

• Rated Loading Capacity: 500kg-40ton
• Max. Lifting Height: 6m
• Type:Hydraulic
• Power supply: three-phase alternating current
• Table size: specified by customer

In Ground / Floor Scissor Lift for car or cargo Parameters：

Below is a detailed analysis of its core components, working principles, features, and applications:

Key Features of In Ground / Floor Scissor Lift

1. Compact Design
   • Scissor mechanism minimizes footprint; in-ground Scissor Lift models achieve “hidden” installation, while floor types avoid complex civil engineering.
   • Large platform area accommodates diverse vehicles (e.g., cars, SUVs) or heavy machinery.
2. High Load Capacity
   • Constructed with high-strength steel and precision welding, supporting loads from 5 to over 20 tons for industrial-grade applications.
3. Smooth & Precise Operation
   • Hydraulic system with synchronized valves ensures vibration-free lifting and millimeter-level positioning accuracy.
4. Safety Assurance
   • Integrated mechanical safety locks, anti-drop devices, overload protection, and emergency descent systems comply with international standards (e.g., CE, ISO).
5. Low Maintenance
   • Sealed hydraulic units and anti-corrosion coatings withstand harsh environments (moisture, oil), enabling long-term maintenance-free operation.

Core Advantages of In Ground / Floor Scissor Lift

• Space Optimization
  In-ground Scissor Lift models blend seamlessly into floors, freeing workspace; floor types preserve existing ground structures for hassle-free installation.
• Versatile Adaptability
  Widely used in automotive repair, logistics, manufacturing, and more, with customizable platform sizes and add-ons (e.g., rotating tables, tilt functions).
• Energy Efficiency
  Electrically driven hydraulic systems reduce energy consumption and noise, supporting sustainable operations.

Structure & Components of In Ground / Floor Scissor Lift

1. Scissor Arms
   • Multi-layered high-strength steel cross arms linked by pivot points, forming a stable parallelogram structure.
2. Hydraulic Drive System
   • Includes pumps, cylinders, control valves, and pipelines; oil pressure extends scissor arms to lift the platform.
3. Lifting Platform
   • Anti-slip steel or aluminum alloy surface, optionally equipped with guardrails, roller tracks, etc.
4. Control Unit
   • Manual/wireless remote operation with height sensors, emergency stop buttons, and status indicators.
5. Safety Mechanisms
   • Mechanical locking pins, relief valves (anti-overload), and manual emergency pressure release valves.

Working Principle of In Ground / Floor Scissor Lift

1. Activation
   • The hydraulic pump is activated via the control unit, directing oil into the cylinder.
2. Lifting Process
   • Cylinder pistons push scissor arm pivot points outward, raising the platform; controlled pressure release lowers it via gravity.
3. Synchronization
   • Hydraulic synchronization valves ensure uniform movement of multiple scissor arms, preventing platform tilt.
4. Safety Locking
   • Mechanical locks engage automatically at target heights to prevent accidental descent.

Applications of In Ground / Floor Scissor Lift

• Automotive Services: 4S shops, tire maintenance, undercarriage inspections.
• Industrial Maintenance: Production line equipment servicing, heavy cargo handling.
• Warehousing & Logistics: High-level shelving access, forklift-assisted loading/unloading.

Conclusion

The In-Ground / Floor Scissor Lift, with its robust construction, precise operation, and superior safety features, serves as an essential vertical lifting solution across industrial and commercial sectors. Whether utilizing the space-saving in-ground design or the flexible floor-mounted configuration, it significantly enhances operational efficiency and spatial utilization, proving indispensable in modern workplaces.
