A Vertical Scissor Lift is an industrial device designed for vertical lifting of heavy loads or personnel to specific heights using a scissor-type mechanical structure. Its defining features include a compact design and strictly vertical lifting motion, making it ideal for space-constrained environments such as warehouse shelf access, equipment installation/maintenance, and production line material handling. It excels in applications requiring precise positioning and high load capacities.
Mobile Vertical Scissor Lift
A mobile vertical scissor lift is a compact aerial work platform designed for vertical lifting while offering the ability to be easily moved around a work site. Equipped with wheels or casters, it allows for manual or powered repositioning. Once in place, a scissor mechanism elevates a platform vertically, providing access for tasks like maintenance, installation, or stock picking. These lifts are often electrically powered for indoor use and offer a maneuverable solution for reaching elevated areas without the need for a fixed structure.
- Rated Loading Capacity: 300kg 500kg 1000kg 1500kg 2000kg
- 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.
- Max. Lifting Height: 3m 6m 8m 10m 12m 4m 16m 18m
- After-sales Service Provided: Online support, Engineers available to service machinery overseas
- Certification: CE ISO
- Lift Drive / Actuation: Electric hydraulic
Mobile Vertical Scissor Lift Parameters：
| Model | Lifting height(m) | Load(Kg) | Platform Dimension(mm) | Overall dimensions(mm) | Overall weight(Kg) |
| 500kg | |||||
| SJY0.5-4 | 4 | 500 | 2100 * 830 | 2250*950*1200 | 800 |
| SJY0.5-6 | 6 | 500 | 2100 * 830 | 2250 *950*1200 | 880 |
| SJY0.5-7 | 7 | 500 | 2100 * 830 | 2250 *950*1280 | 970 |
| SJY0.5-8 | 8 | 500 | 2100 * 930 | 2250 *1060*1380 | 1050 |
| SJY0.5-9 | 9 | 500 | 2100 * 930 | 2250 *1060*1500 | 1165 |
| SJY0.5-10 | 10 | 500 | 2100 * 1230 | 2250 *1350*1530 | 1360 |
| SJY0.3-11 | 11 | 300 | 2100 * 1230 | 2250 *1350*1650 | 1400 |
| SJY0.5-12 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
| SJY0.5-14 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2486 |
| SJY0.3-16 | 16 | 300 | 2812*1600 | 3067*1810*2080 | 3063 |
| SJY0.3-18 | 18 | 300 | 3070*1600 | 3321*1810*2080 | 3900 |
| 1000kg | |||||
| SJY1.0-4 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
| SJY1.0-6 | 6 | 1000 | 2100*1200 | 2250*1350*1300 | 1400 |
| SJY1.0-8 | 8 | 1000 | 2100*1200 | 2250*1350*1420 | 1585 |
| SJY1.0-10 | 10 | 1000 | 2100*1200 | 2250*1350*1530 | 1700 |
| SJY1.0-12 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
| SJY1.0-14 | 14 | 1000 | 2812*1600 | 3067*1810*1900 | 3230 |

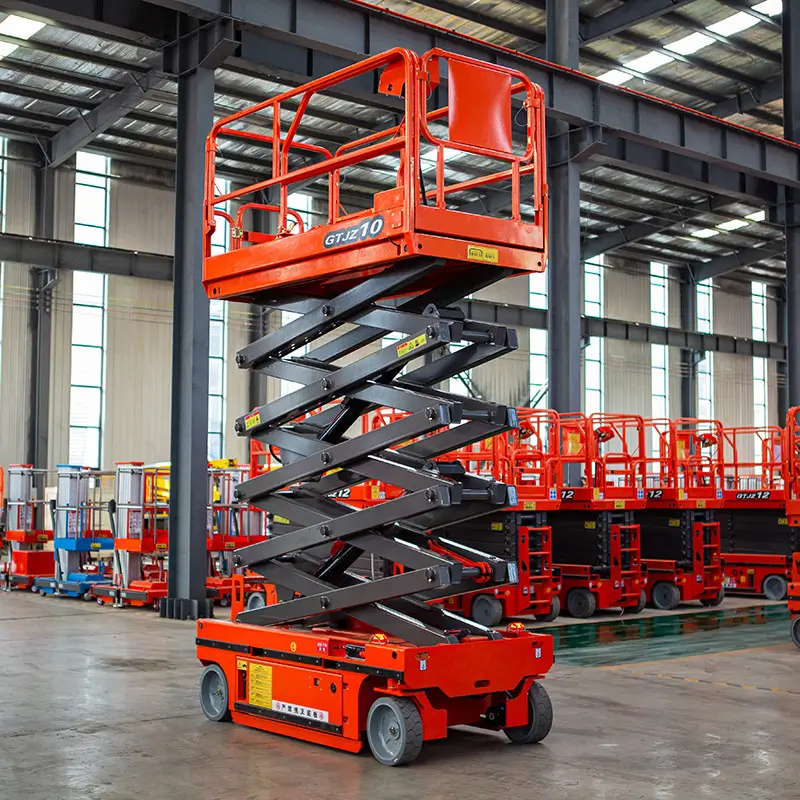

Self-propelled Vertical Scissor Lift
A self-propelled vertical scissor lift is a mobile aerial work platform with an integrated drive system, allowing operators to control both the vertical lifting of the platform and the horizontal movement of the lift from the work area. Typically electrically powered for indoor use on slab surfaces due to quiet operation and zero emissions, these lifts offer enhanced maneuverability and efficiency for tasks requiring movement across a workspace while maintaining a stable vertical lifting capability.
- Maximum Working Height: 3-13.8 meters
- Rated Load Capacity: 230kg/320kg/450kg
- Extendable platform: 0-900mm,load 113kg.
- Main Material: High-duty Steel Structure.
- Guardrail: foldable,height 1.1meter
- DC power.
Self-propelled Vertical Scissor Lift Parameters：
| Model | Lifting height (m) | Dimensions L*W*H (mm) | Platform size L*W (mm) | Extended platform (mm) | Rated Loading Capacity (kg) | Weight (kg) |
| GTJZD-3 | 3 | 1435*760*1590 | 1290*700 | 600 | 240 | 900 |
| GTJZD-4 | 4 | 1440*760*1670 | 1290*700 | 600 | 240 | 950 |
| GTJZ-6A | 5.8 | 1850*790*1850 | 1670*740 | 900 | 230 | 1530 |
| GTJZ-6B | 6 | 2480*810*1730 | 2300*810 | 900 | 380 | 1880 |
| GTJZ-6C | 6 | 2480*1190*1680 | 2300*1130 | 900 | 550 | 2150 |
| GTJZ-8A | 8 | 2480*850*1850 | 2260*810 | 900 | 230 | 2030 |
| GTJZ-8B | 8 | 2480*1190*1820 | 2290*1130 | 900 | 450 | 2300 |
| GTJZ-10 | 10 | 2495*1181*1920 | 2300*1130 | 900 | 320 | 2530 |
| GTJZ-12 | 11.8 | 2495*1187*2050 | 2290*1130 | 900 | 320 | 2870 |
| GTJZ-14 | 13.8 | 2840*1400*2060 | 2670*1130 | 900 | 227 | 3340 |

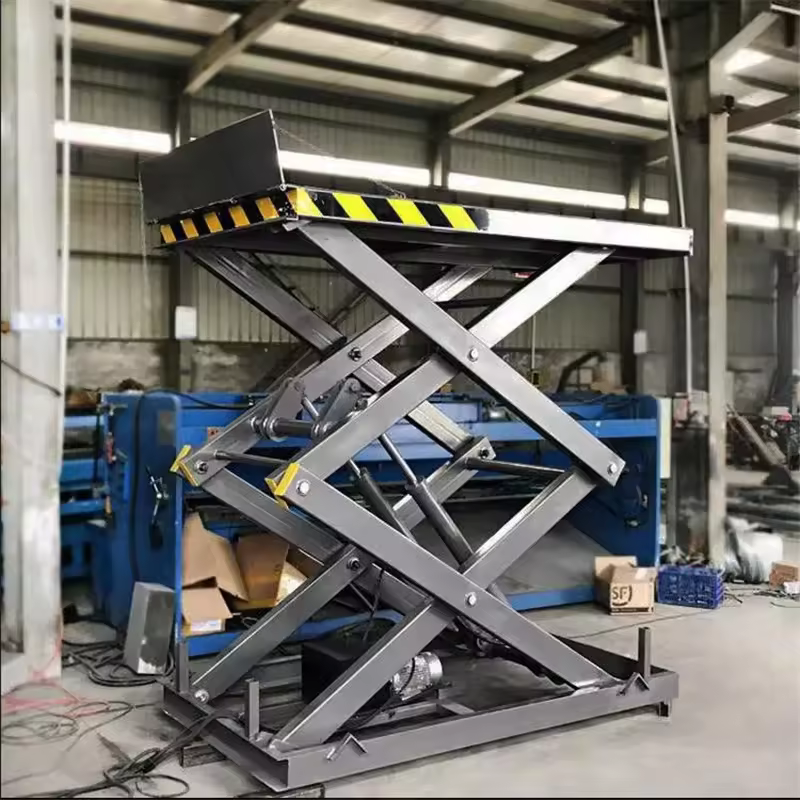

Stationary Vertical Scissor Lift
A stationary vertical scissor lift is a installed lifting device designed to raise and lower goods or personnel vertically within a fixed location. Anchored to the floor or integrated into a building’s structure, it utilizes a scissor mechanism powered by hydraulics or electricity for vertical movement. These lifts are commonly used in loading docks, assembly lines, or maintenance bays in facilities, to overcome level changes or provide a stable, elevated work area in a specific spot. Their fixed nature ensures stability for repetitive lifting tasks.
- Stationary Vertical Scissor Lift
- Rated load: 500kg-40ton
- Maximum lifting height: 1m-6m
- Voltage:110v 220v 240v 380v Optional
- Certification:CE ISO9001
- Lift Drive / Actuation:Electric Motor
Stationary Vertical Scissor Lift Parameters：
| Model | Loading capacity (Kg) | Lifting height (m) | Platform Size（mm) | Minimum Height (mm) | Power (KW) | Weight (Kg) |
| SJG0.3-3 | 300 | 3 | 2000*1200 | 650 | 1.1 | 780 |
| SJG0.5-5 | 500 | 5 | 2000*1000 | 850 | 2.2 | 1200 |
| SJG1-3.3 | 1000 | 3.3 | 1900*1500 | 840 | 3 | 1300 |
| SJG1-4.3 | 1000 | 4.3 | 2500*2000 | 860 | 3 | 2500 |
| SJG1-6 | 1000 | 6 | 2200*1500 | 1230 | 2.2 | 2500 |
| SJG2-3.5 | 2000 | 3.5 | 2200*1500 | 1000 | 3 | 1800 |
| SJG3-4.5 | 3000 | 4.5 | 2200*1500 | 1060 | 4 | 2200 |
| SJG1.5-3 | 1500 | 3 | 1800*1200 | 820 | 2.2 | 1480 |
| SJG2-4.8 | 2000 | 4.8 | 2000*2000 | 980 | 4 | 2200 |
| SJG2-6 | 2000 | 6 | 2200*2000 | 1150 | 5 | 2800 |
Below is a detailed analysis of its core components, working principles, features, and applications:
1. Key Features
- Vertical Lifting Mechanism
- Scissor arms expand vertically without requiring lateral space, perfect for narrow aisles or indoor operations.
- High Load Capacity
- Supports up to 100 tons (1,000,000 kg), ideal for heavy machinery or dense material handling.
- Flexible Power Systems
- Equipped with electro-hydraulic or fully electric drives, balancing power and low noise for eco-sensitive indoor/outdoor use.
- Comprehensive Safety
- Dual hydraulic circuits, overload safety valves, emergency descent systems, anti-slip platforms, and mechanical locks ensure reliable operation.
- User-Friendly Controls
- Compatible with wireless remote control, manual operation, or PLC-integrated systems; some models include auto-leveling for simplified workflows.
2. Product Advantages
- Space Efficiency
- Compact folded height (as low as 330 mm) saves storage space; vertical motion minimizes workspace disruption.
- Energy-Saving Performance
- Optimized hydraulic systems achieve lifting speeds of 0.1–0.3 m/s; electric models support fast charging (e.g., lithium batteries) for reduced operating costs.
- Low Maintenance
- Modular design simplifies repairs, and sealed hydraulics require only periodic lubrication and inspections.
- Environmental Adaptability
- Optional waterproof/dustproof coatings suit workshops, docks, cold storage, and extreme temperatures (-20°C to 50°C).
3. Structure & Core Components
- Scissor Arm System
- High-strength steel cross-hinged arms driven by hydraulic cylinders or electric actuators for stable vertical movement.
- Load Platform
- Anti-slip steel or insulated rubber surface with foldable guardrails; some models include wheel alignment grooves.
- Power Unit
- Hydraulic Drive: High-pressure pump and cylinder for heavy loads; Electric Drive: Motor and gear-rack system for quiet, clean operation.
- Control System
- Integrated control box with height presets, self-diagnostics, and emergency stop; select models feature digital displays or remote monitoring.
- Safety Mechanisms
- Dual hydraulic locks, tilt alarms, manual descent valves, and audible/visual alerts ensure full compliance with safety standards.
4. Working Principle
The Vertical Scissor Lift operates via a scissor-type lever principle combined with hydraulic/electric actuation:
- Power Activation: A motor or hydraulic pump drives the pivot points of the scissor arms.
- Vertical Expansion: Scissor arms extend vertically to lift the platform; controlled retraction lowers it via hydraulic valve regulation.
- Precision Control: Hydraulic flow or motor speed adjusts lifting speed; limit switches halt motion at preset heights.
5. Typical Applications
- Warehousing: High-altitude shelf access, container loading/unloading.
- Manufacturing: Production line equipment installation, mold replacement.
- Automotive: New energy vehicle battery assembly, large component maintenance.
- Construction: Indoor aerial work, steel structure positioning.
Summary
The Vertical Scissor Lift stands out for its vertical efficiency, high load capacity, and compact design, making it a critical tool in industrial and commercial sectors. Combining hydraulic/electric power with multi-layered safety systems, it enhances operational efficiency while reducing space and maintenance costs, delivering an ideal solution for aerial work and heavy-load handling.
