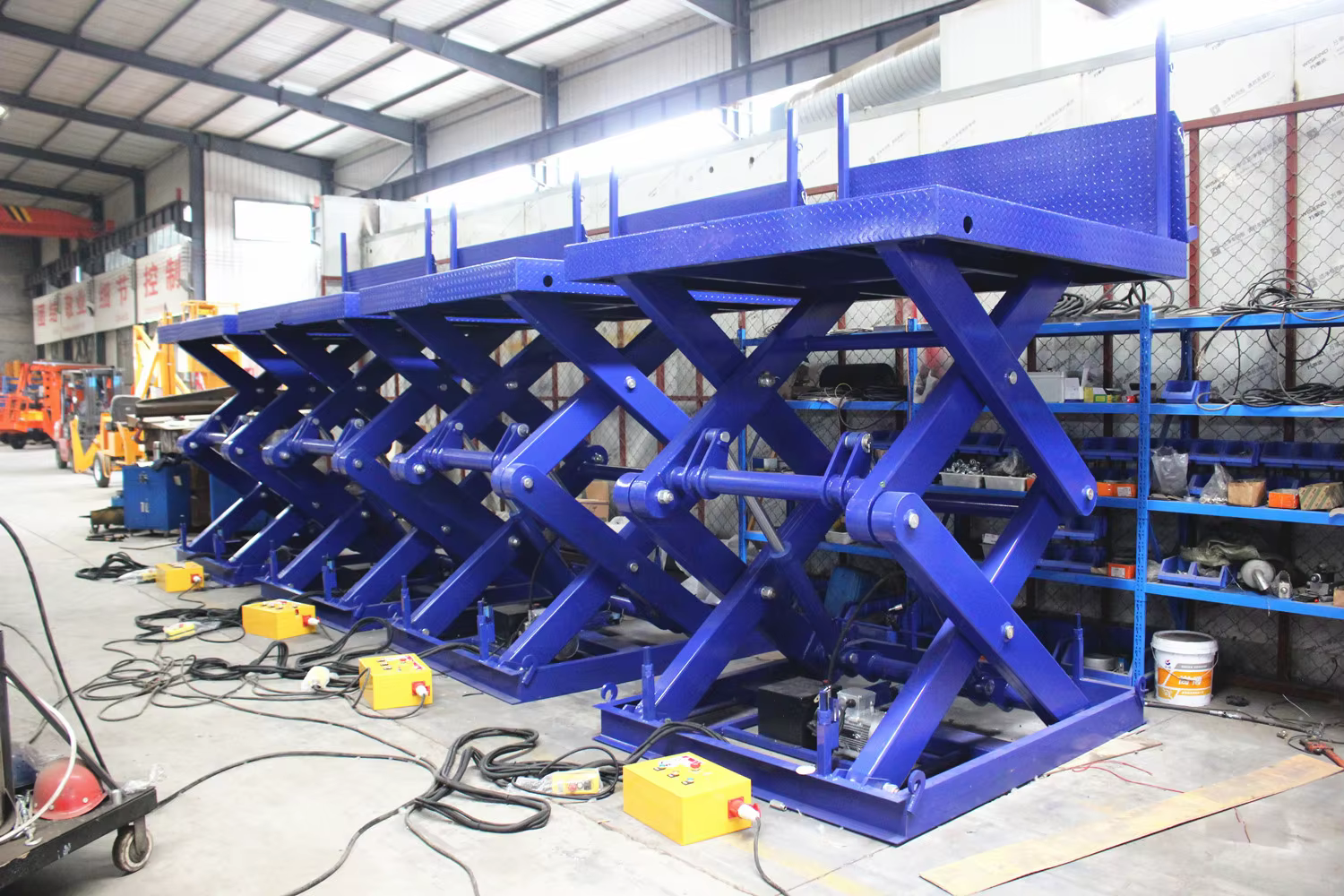

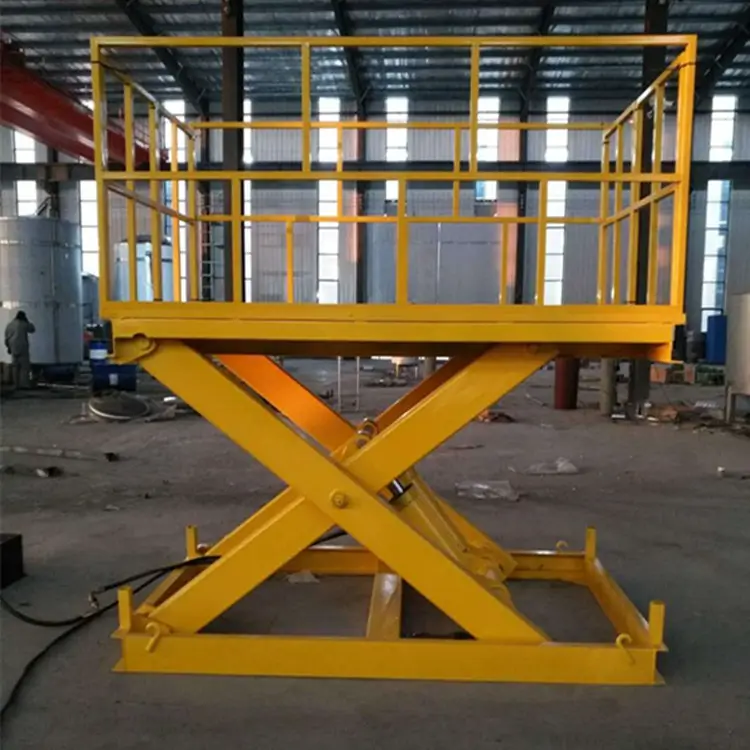

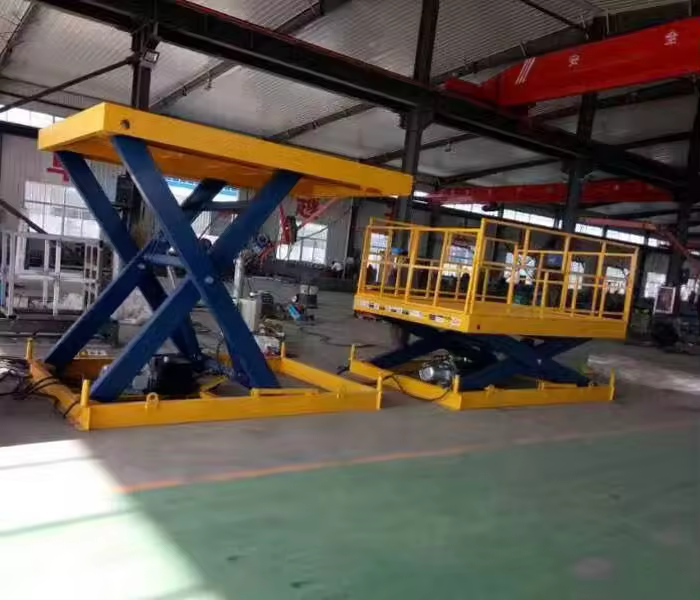

5 Ton scissor lift platform

The 5 Ton Scissor Lift Platform is an industrial device specifically designed for vertical lifting of heavy goods or equipment. Its core feature is a scissor-type mechanical structure that ensures stable and efficient lifting operations. With a maximum load capacity of 5 tons (5,000 kg), this platform is widely used in warehousing, logistics, manufacturing, automotive repair, construction, and installation. It is particularly suited for environments requiring frequent, safe, and reliable handling of heavy materials.

5 Ton Stationary scissor lift platform

Rated Loading Capacity: 500kg-100ton

Max. Lifting Height: 6m

Type: Electric Hydraulic

Power supply: 3-phase 380V/220V

Table size: customizable

1. Key Features of 5 Ton scissor lift platform

1. High Load Capacity
   • Designed to carry up to 5 tons, it effortlessly handles heavy machinery, large containers, or dense materials.
2. Stable Lifting Mechanism
   • Utilizes high-strength steel scissor arms and precision guidance systems to ensure smooth, vibration-free lifting.
3. Versatile Power Options
   • Compatible with hydraulic, electric, or hybrid power systems, adapting to indoor eco-friendly operations or outdoor environments without power sources.
4. Flexible Control Modes
   • Supports manual controls, wireless remote control, or PLC automation systems for single-operator use or integration into production lines.
5. Comprehensive Safety Features
   • Includes explosion-proof valves, overload protection, emergency stop buttons, guardrails, and anti-slip platforms, complying with international standards (e.g., CE, GB,ISO).

2. Product Advantages of 5 Ton scissor lift platform

1. Enhanced Operational Efficiency
   • Rapid lifting speeds (0.1–0.3 m/s) reduce manual handling time and labor intensity.
2. Space-Saving Design
   • Compact scissor structure minimizes storage space; vertical lifting requires no sloped tracks or lateral space.
3. Low Maintenance Costs
   • Modular design simplifies component replacement, and sealed hydraulic systems only require regular lubrication and inspections.
4. Robust Environmental Adaptability
   • Optional dustproof, waterproof, and corrosion-resistant coatings make it suitable for workshops, docks, cold storage, and harsh environments.

3. Structure & Core Components

1. Scissor Arm System
   • Multiple sets of cross-hinged steel arms provide even force distribution and vertical movement.
2. Load Platform
   • Reinforced steel platform with anti-slip tread plates or insulated rubber mats, featuring foldable guardrails.
3. Power Unit
   • Hydraulic: High-pressure oil pump and cylinder for powerful performance; Electric: Motor and gear-rack system for quiet, eco-friendly operation.
4. Control System
   • Integrated control box with incremental lifting, height presets, and self-diagnostic functions; some models include digital displays.
5. Safety Mechanisms
   • Dual hydraulic locks, tilt alarms, emergency descent valves, and other fail-safes ensure full compliance with safety protocols.

4. Working Principle of 5 Ton scissor lift platform

The 5 Ton Scissor Lift Platform operates on a scissor-type lever principle combined with hydraulic/electric actuation:

1. Power Activation: The motor or hydraulic pump drives the scissor arms’ pivot points.
2. Structural Expansion: Scissor arms extend vertically to lift the platform; controlled retraction lowers it.
3. Precision Control: Hydraulic flow or motor speed regulates lifting speed; limit switches halt the platform at preset heights.

5. Typical Applications of 5 Ton scissor lift platform

• Manufacturing: Heavy equipment installation, mold replacement, material transfer.
• Warehousing: High-altitude shelf access, container loading/unloading.
• Automotive Industry: EV battery assembly, large component maintenance.
• Construction: Steel structure positioning, indoor aerial work.

6. Technical Specifications of 5 Ton scissor lift platform

Combining high strength, safety, and adaptability, the 5 Ton Scissor Lift Platform delivers a reliable vertical lifting solution for industrial applications, enabling efficient and risk-minimized material handling.
