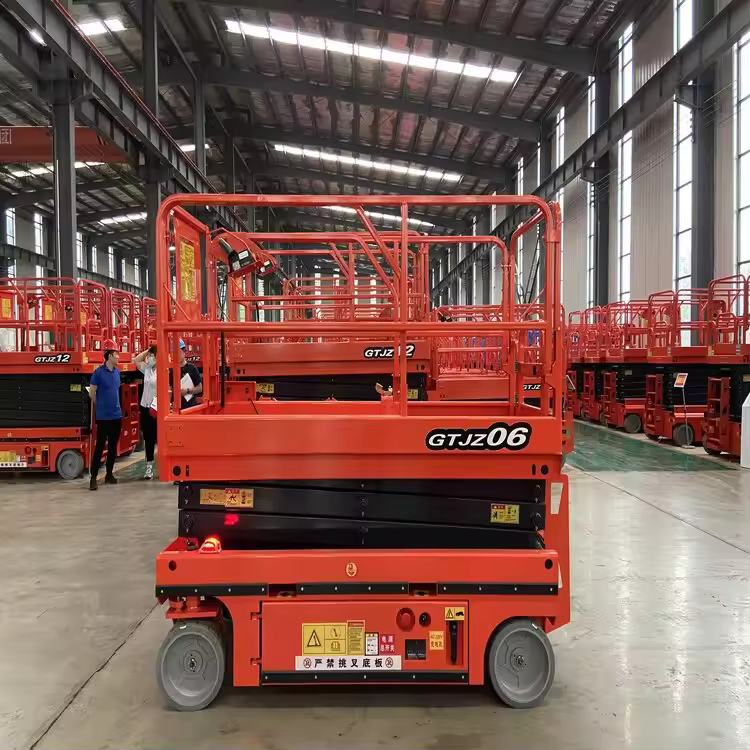

Self Propelled Scissor Lift

Self Propelled Scissor Lift is a hydraulically driven aerial platform integrating autonomous mobility and vertical lifting capabilities. Its defining feature is self-powered operation (electric and hydraulic), eliminating the need for external power or manual towing. Designed for scenarios requiring frequent relocation and working heights of 4–16 meters, Self Propelled Scissor Lift excels in complex terrains or confined spaces, such as warehousing, industrial maintenance, construction, and indoor/outdoor cleaning.

Mini Self Propelled Scissor Lift

A mini self-propelled scissor lift is a compact aerial work platform with its own drive system, allowing for independent movement in confined spaces. Despite its small size, it provides vertical lifting capabilities via a scissor mechanism, enabling a single operator to reach elevated work areas. Often electrically powered for quiet operation and zero emissions, these lifts are ideal for indoor maintenance, installation, and stock picking in tight environments.

Mini Self Propelled Scissor Lift parameters

Rated Loading Capacity: 230kg 320kg

Lifting Height：3m 4m 5.8m

Platform: Anti-skid Checkered Plate

Self Propelled Scissor Lift Manufacturer

• Maximum Working Height: 3-13.8 meters
• Rated Load Capacity: 230kg/320kg/450kg
• Extendable platform: 0-900mm,load 113kg.
• Guardrail: foldable,height 1.1meter
• DC power.

Self Propelled Scissor Lift Parameters：

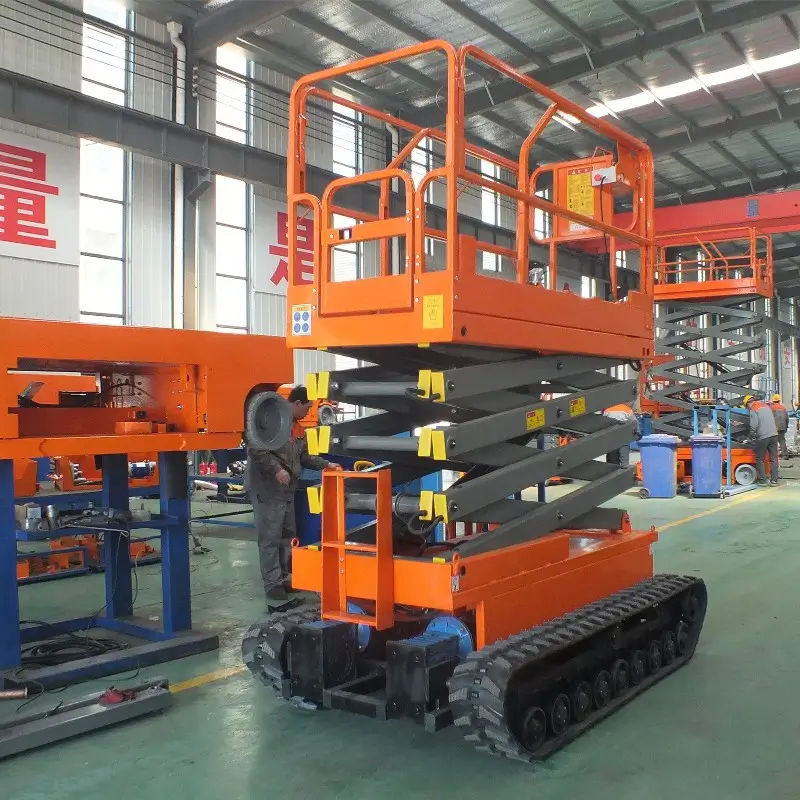

Tracked Self Propelled Scissor Lift

A tracked self-propelled scissor lift is an aerial work platform that utilizes tracks instead of wheels for movement and has its own integrated drive system. This combination allows it to navigate challenging terrains, including uneven ground, slopes, and soft surfaces, while providing vertical lifting capabilities. Operators can control both the movement of the lift and the elevation of the platform from the work area. Often powered by electricity or diesel, these lifts offer stability and access in demanding environments where wheeled lifts might not be suitable.

• Maximum Working Height: 3-13.8 meters
• Rated Load Capacity: 230kg/320kg/450kg
• Extendable platform: 0-900mm,load 113kg.
• Guardrail: foldable,height 1.1meter
• DC power.

Tracked Self Propelled Scissor Lift Parameters：

Below is a detailed analysis of electric Self Propelled Scissor Lift features, advantage and applications:

Key Features of Self Propelled Scissor Lift

1. Autonomous Mobility
   • Equipped with self-propelled drive systems for forward/reverse movement, steering, and variable-speed control, operated via platform console or remote.
   • Climbing capability up to 25% slope, adaptable to smooth floors, rough workshop surfaces, or mild outdoor terrain.
   • Some models feature 4-wheel drive and sharp-angle steering for enhanced maneuverability in tight spaces.
2. Efficient Lifting Performance
   • Working height range: 4–16 meters (model-dependent); rated load capacity: 200–800 kg, supporting tools, materials, and multi-operator tasks.
   • Hydraulic-driven scissor arms ensure stable lifting speeds (approx. 0.2–0.5 m/s) with “soft start/stop” functionality to minimize vibration.
3. Intelligent Safety Systems
   • Multi-Layer Protection: Tilt alarms (auto-lock at >3° slope), emergency stop buttons, overload protection, and hydraulic fall arrest locks.
   • Emergency Descent: Manual release valves enable safe platform lowering during power failures or system faults.
4. Energy Efficiency & Eco-Friendliness
   • Electric models use 48V lithium or lead-acid batteries with 6–10 hours runtime, fast charging (2-hour full charge for select models), and noise levels below 65 dB for indoor use.
   • Hydraulic systems incorporate balance valves and check valves to reduce energy loss and ensure smooth operation.
5. Modular Customization
   • Optional extensions: expanded platforms, insulated workstations, or explosion-proof configurations for specialized industries like electrical or chemical sectors.

Core Advantages of Self Propelled Scissor Lift

• Space Adaptability: Compact folded height (130–300 mm) and narrow width (0.8 meters) for easy passage through doorways or shelving aisles.
• Operational Efficiency: Single-operator control for movement, lifting, and steering, reducing labor dependency.
• Low Maintenance: High-strength alloy steel scissor arms and corrosion-resistant hydraulic components require only routine lubrication and fluid checks.

Structure & Working Principle

1. Mechanical Structure

• Scissor Arms: Multi-stage folding steel arms balance lifting height and compact storage.
• Power System:
  • Electric Models: Integrated motors, lithium batteries, and smart BMS (Battery Management System) with wireless remote control.
  • Hydraulic Models: Diesel/electric dual-power options with hydraulic pumps and cylinders.
• Control Unit: IP65-rated panel with CAN bus technology for precise motion control.

2. Operating Principle

• Hydraulic Drive: Motors or engines power hydraulic pumps to push oil into cylinders, extending scissor arms. Electromagnetic directional valves regulate oil flow for speed and height control.
• Safety Feedback: Sensors monitor load, platform leveling, and hydraulic pressure, triggering alarms or shutdowns for anomalies.

Typical Applications of Self Propelled Scissor Lift

• Warehouse Logistics: High-level picking, inventory audits, and lighting maintenance.
• Industrial Maintenance: Production line installations, ceiling repairs, and machinery servicing.
• Construction: Interior finishing, steel welding, and pipeline installation.

Conclusion

The Self-Propelled Scissor Lift revolutionizes aerial work with its autonomous mobility, intelligent safety systems, and modular design. Its efficiency, flexibility, and low maintenance costs significantly reduce operational risks and labor demands, making it ideal for dynamic environments requiring rapid task switching. As electrification and automation advance, this equipment will further unlock potential in green energy and automated workflows.s.
