Lightweight Scissor Lift

The Lightweight Scissor Lift is a high-efficiency lifting device based on a scissor-type mechanical structure, designed specifically for elevating personnel or materials in small to medium-sized work environments. Its core features include lightweight construction, portability, and flexible operation, making it widely applicable for indoor/outdoor maintenance, warehousing, stage setup, equipment installation, and more. Compared to traditional heavy-duty lifts, it emphasizes mobility, space adaptability, safety, and stability.

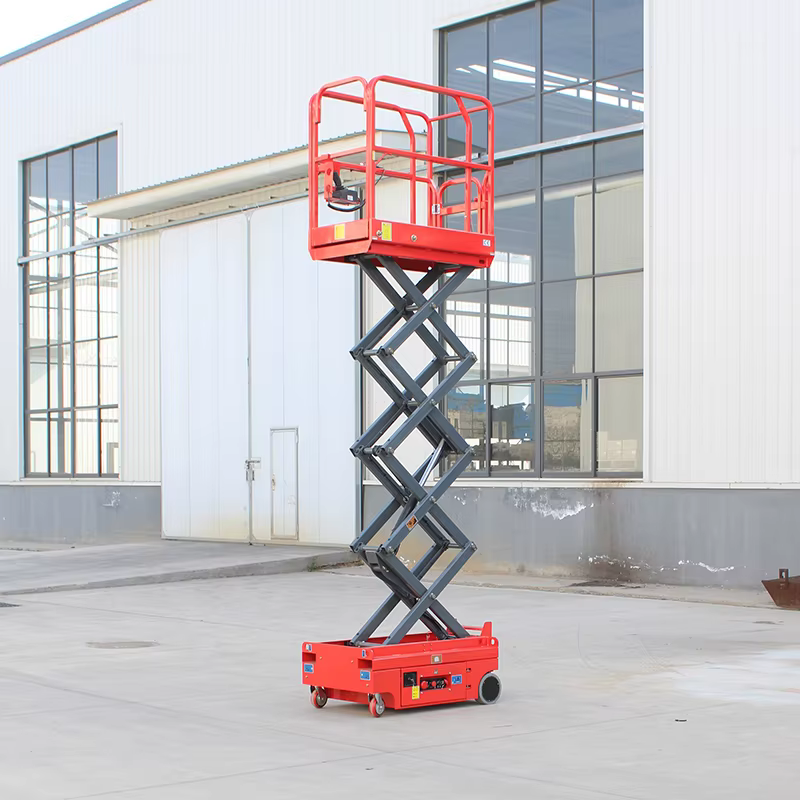

Self Propelled Lightweight Scissor Lift

A self-propelled lightweight scissor lift is a compact and maneuverable aerial work platform designed for easy operation and transport. Equipped with its own drive system, it allows for effortless movement around a work. Its lightweight construction makes it ideal for use on weight-sensitive floors and for situations requiring frequent relocation. Utilizing a scissor mechanism for vertical elevation, these lifts are often electrically powered, making them suitable for indoor maintenance, installation, and finishing tasks where a combination of mobility and reach is needed without significant weight.

Self Propelled Lightweight Scissor Lift

Rated Loading Capacity: 240kg 320kg

Lifting Height：3m 4m 5.8m

Platform: Anti-skid Checkered Plate

Self Propelled Lightweight Scissor Lift Parameters：

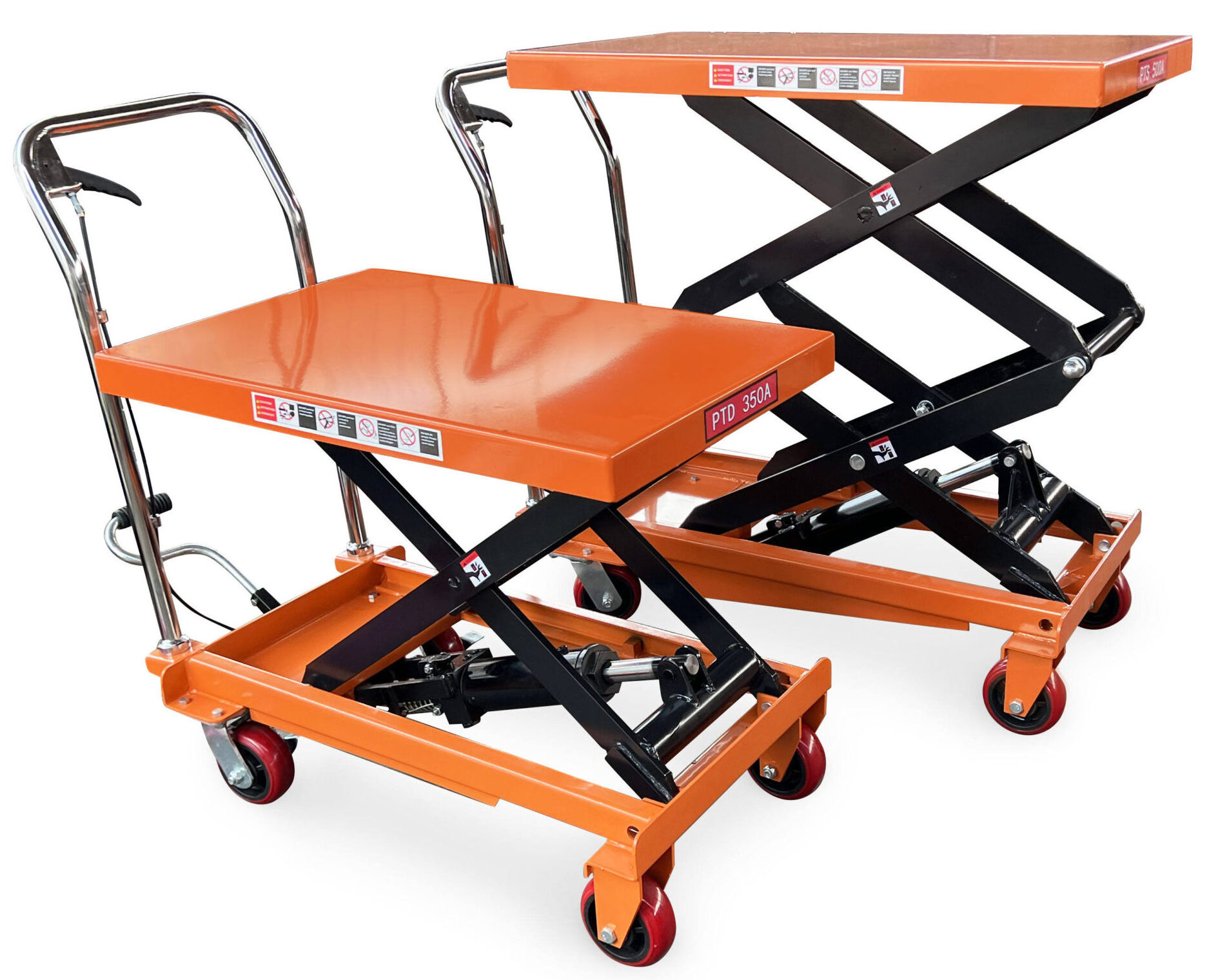

Lightweight Scissor Lift table

A lightweight scissor lift table is a portable material handling device featuring a flat platform that can be raised and lowered via a manual or electric scissor mechanism. Its key characteristic is its reduced weight, making it easier to maneuver and transport within a workspace. Designed for lifting and positioning lighter loads to an ergonomic working height, these tables are ideal for tasks such as order picking, assembly, or feeding materials to machinery where ease of movement and moderate lifting capacity are required.

Rated Loading Capacity: 330 lbs. 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.

150kg 300kg 500kg 1000kg 1500kg 2000kg

Hydraulic:  Foot-type/electric hydraulic

Min. Lifting Height: 350mm

Product Type: Mini scissor lift table

Certification:CE ISO

Lightweight Scissor Lift table Parameters：

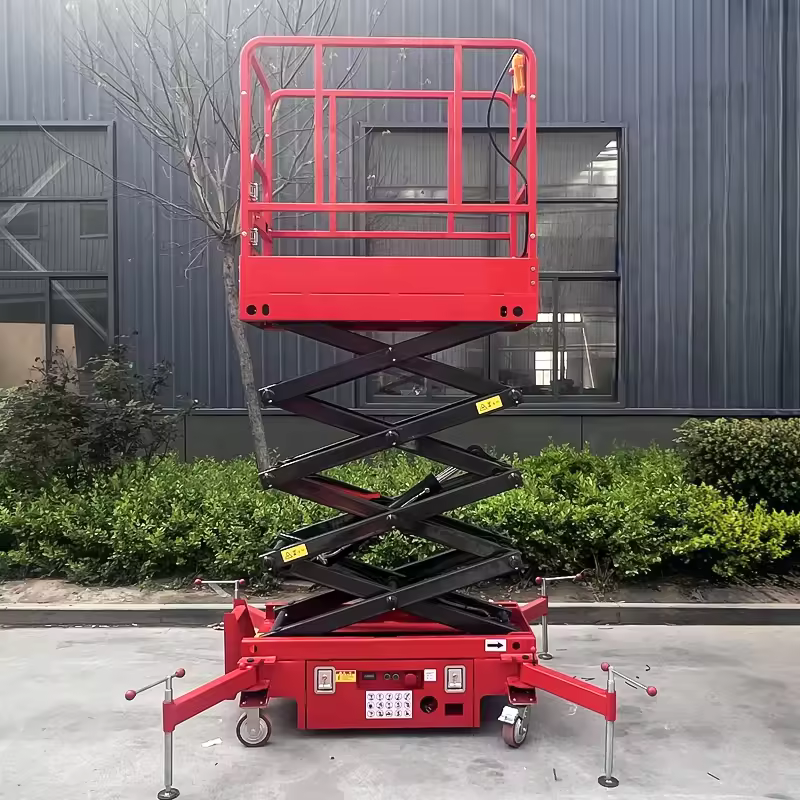

Push Around Lightweight Scissor Lift

A push-around lightweight scissor lift is a compact and easily maneuverable aerial work platform designed for indoor use on level surfaces. Lacking a self-propelled drive, it is manually pushed into position. Its lightweight construction makes it easy to move and suitable for weight-sensitive floors. Once in place, a scissor mechanism lifts a single operator to a working height, typically powered by manual hydraulics or electricity, making it a cost-effective solution for maintenance, cleaning, or installation tasks in confined spaces.

Push Around Lightweight Scissor Lift:

Rated Loading Capacity: 200kg 300kg

Max. Lifting Height: 3-5.8m

Lift Drive / Actuation:Electric hydraulic Motor

Push Around Lightweight Scissor Lift Parameters：

Below is a detailed analysis of electric Lightweight Scissor Lift features, advantage and applications:

A lightweight scissor lift, also referred to as a light scissor lift or the lightest scissor lift available, is designed with a focus on minimizing its overall weight. This characteristic offers several advantages, including easier maneuverability, reduced floor loading pressure for operation on sensitive surfaces, and simplified transportation between job sites. These lifts often feature compact designs and may utilize materials like aluminum to achieve their reduced weight while still providing a stable and efficient elevated work platform for various tasks.

Key Features Of Lightweight Scissor Lift

1. Lightweight Design
   Constructed with high-strength aluminum alloy or lightweight steel, the device significantly reduces overall weight (typically 49–660 kg), enabling easy transportation and maneuverability by a single operator. The lightest scissor lift weight is 49kg. As the lightest scissor lift in its class, this equipment combines robust performance with exceptional portability, weighing significantly less than traditional models while maintaining full load-bearing capacity.
2. Folding Scissor Mechanism
   The unique X-shaped scissor arms allow vertical extension, with a compact folded height (as low as 0.3 meters) and a maximum working height of 6–12 meters when fully extended, adapting to diverse operational needs.
3. Flexible Power Options
   Equipped with electric-hydraulic or fully electric drive systems, it operates quietly and emission-free, suitable for indoor and outdoor use. Some models include manual emergency descent mechanisms to ensure safe lowering during power outages.
4. Compact Space Compatibility
   The small base footprint allows access to narrow passages or low doorways (e.g., standard door widths). The light scissor lift requires no complex anchoring and is ready for immediate use.
5. Comprehensive Safety Features
   Standard safety components include anti-slip platforms, guardrails, overload protection, and emergency stop buttons. Advanced models may integrate tilt alarms and anti-pinch hand protection for enhanced safety.

Core Advantages Of Lightweight Scissor Lift

• Energy-efficient Operation: Electric drives minimize energy consumption, with extended runtime (e.g., lithium battery versions operate for 8–12 hours), reducing costs.
• Rapid Deployment: No installation or complex setup required—full deployment takes under 1 minute, boosting productivity.
• Multi-scenario Adaptability: Customizable platforms (e.g., tool racks, power outlets) support diverse tasks like repairs, cleaning, and exhibition setups.
• Easy Maintenance: Modular design simplifies replacement of key components (e.g., hydraulic cylinders, motors), minimizing downtime.

Structure and Working Principle Of Lightweight Scissor Lift

1. Key Components
   • Scissor Arm Assembly: Multi-layered, high-strength alloy arms connected by hinges for synchronized extension.
   • Platform and Base: The light scissor lift platform features anti-slip steel plating and adjustable guardrails; the base houses the drive system and stabilizing counterweights.
   • Mobility System: Swivel casters (some with brakes) and a tow bar enable manual or electric movement.
2. Working Principle
   Powered by an electric-hydraulic pump or motor, the scissor arms extend or retract:
   • Ascending: Hydraulic cylinders push the scissor arms outward, lifting the platform vertically.
   • Descending: The control system gradually releases hydraulic pressure or reverses the motor to retract the arms smoothly.
     Precision is ensured by PLC or mechanical limiters, with an error margin of less than ±5 mm.

Typical Applications Of Lightweight Scissor Lift

• Warehousing: Shelf access, lighting repairs, surveillance system installations.
• Commercial Services: Mall signage hanging, window cleaning, HVAC maintenance.
• Cultural Events: Stage lighting adjustments, exhibition setups, film production.

Conclusion
The Lightweight Scissor Lift redefines the standards for small to medium-sized aerial work through innovative lightweight engineering and intelligent drive systems. Combining portability, safety, and versatility, it significantly reduces labor costs and operational risks, establishing itself as an indispensable tool for modern industrial and commercial tasks.
